SAIE-M8B-4S-H10TL
SAIE-M8B-4S-H10TL

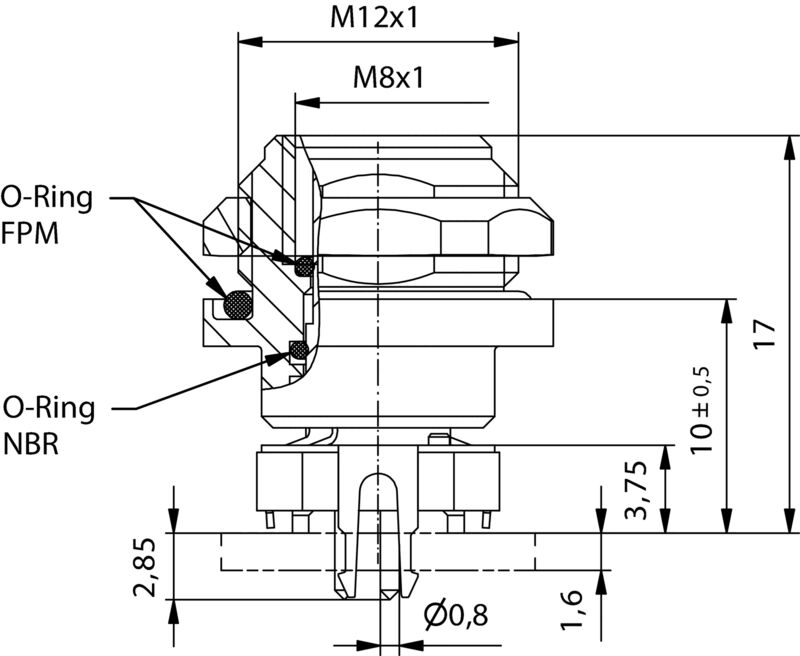

Dimensioned drawing
SAIE-M8B-4S-H10TL
PCB design
SAIE-M8B-4S-H10TL
Pole scheme
Female

SAIE-M8B-4S-H10TL

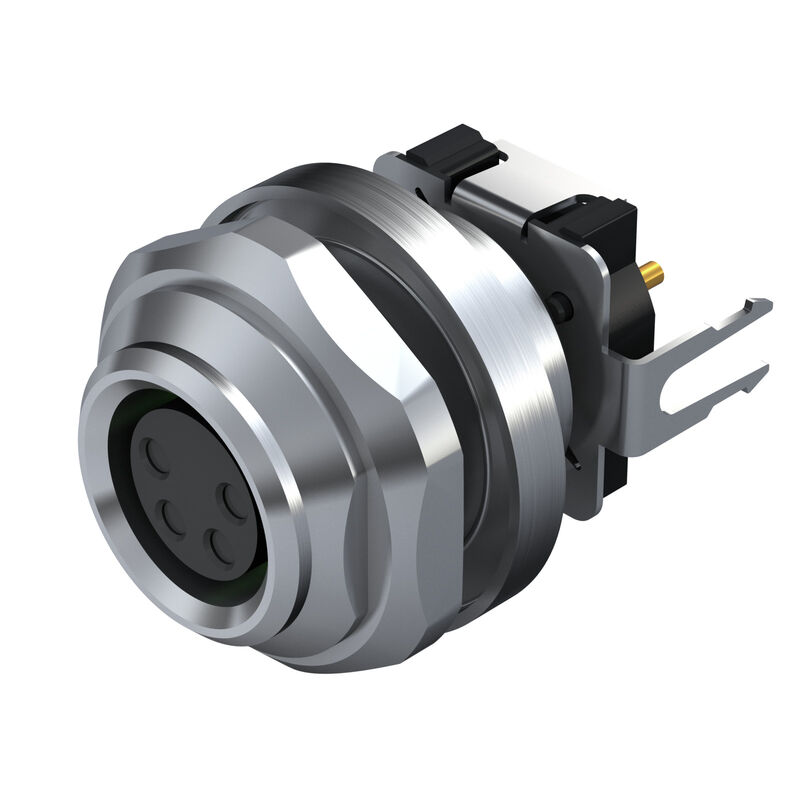

Built-in plugs, M8, Mounting thread: M 12, Number of poles: 4, Strand / cable length:

Item No. 2423580000
Download data sheet Engineering Support
Related products 8
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Версия
Built-in plugs, M8, Mounting thread: M 12, Number of poles: 4, Strand / cable length:
Заказ №
2423580000
Type
SAIE-M8B-4S-H10TL
GTIN (EAN)
4050118430424
Qty.
25 items

Dimensions and weights

Net weight
10.04 g

Environmental Product Compliance

Состояние соответствия RoHS
Compliant with exemption
Исключение из RoHS (если применимо/известно)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Coding
M8 = none
Conexión de apantallamiento
No
Housing surface
nickel-plated
Installation height
10 mm
Number of poles
4
Skříně
M8 socket
Type of mounting
Rear panel mounting
Монтажная резьба
Pin: M8 / Socket: M12
Tension nominale
30 V
Tension nominale
60 V (3-pole) / 30 V (4-,5- and 8-pole)
Märkström
4 A
Märkström
4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
Temperature range
-30…80 °C
보호 등급
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
Connection thread
M8
조임 토크
M8: 0.5 Nm
Mounting thread
M 12
Mounting torque
  • max.:
    1.2 Nm
Mounting torque range
1.2 Nm
Insulation resistance
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Seal material
FPM
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn
Grouting material
PUR

General Info

Number of poles
4
하우징 기본 재질
CuZn
nickel-plated
Connection thread
M8
Contact material
Cu-alloy
Contact surface
Au (Gold)
Type of mounting
Rear panel mounting
Protection degree
IP67
Plugging cycles
≥ 100

Material data

Contact material
Cu-alloy
접점 표면
Au (Gold)

System parameters

Insulation resistance
100 MΩ
Number of poles
4
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Classifications

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
