SAIL-M12WM12W-4S3.0U
SAIL-M12WM12W-4S3.0U
Dimensioned drawing
Male, angled
SAIL-M12WM12W-4S3.0U
Dimensioned drawing
Socket
SAIL-M12WM12W-4S3.0U
Pole scheme
M12 = A-coded
SAIL-M12WM12W-4S3.0U
Pole scheme
M12 = A-coded
SAIL-M12WM12W-4S3.0U
Wiring diagram

SAIL-M12WM12W-4S3.0U

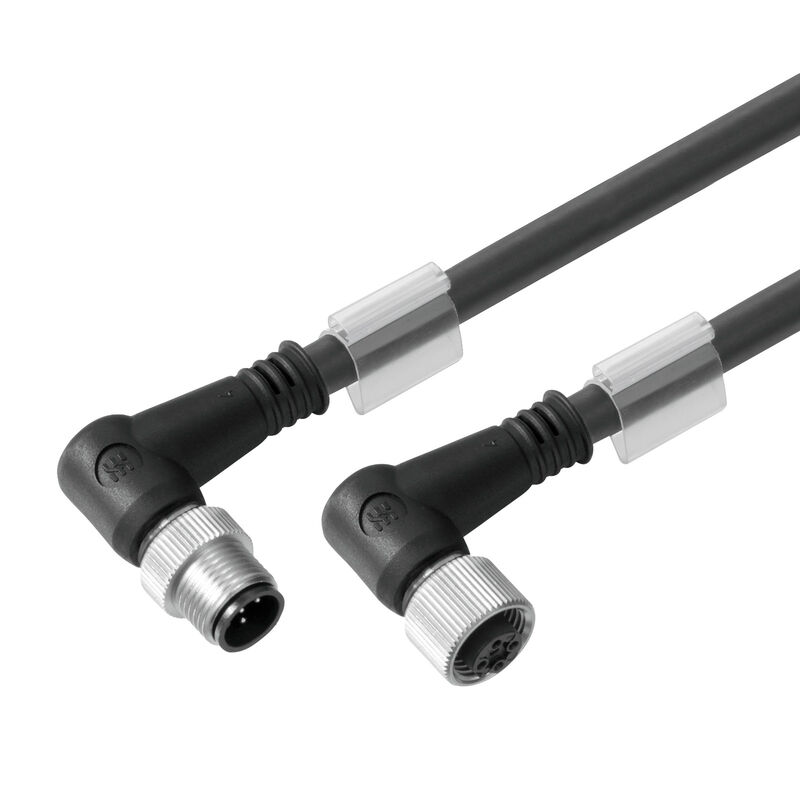

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 3 m, pin, 90° - socket 90°, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 1059730300
Veri sayfasını indir Product Downloads Engineering Support
Aksesuarlar 6 İlgili ürünler 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Godkännanden
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Utförande
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 3 m, pin, 90° - socket 90°, Shielded: Yes, LED: No, Sheath material: PUR, Halogen: No
Order No.
1059730300
Typ
SAIL-M12WM12W-4S3.0U
GTIN (EAN)
4032248807925
Qty.
1 adet

Dimensions and weights

Net weight
136 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Accélération
5 m/s²
Antal poler
4
Apto para cadena de arrastre
Yes
Barva opláštění
black
Blindé
Yes
Cable length
3 m
Cycles de courbure
2 Mio
Halogène
No
Hidrolízis és mikróba-ellenálló
Yes
Isolation
PP
Külső bevonat az UL AWM stílusnak megfelelően
20549 (80 °C / 300 V)
Longueur de câble configurable
No
Matériau de la gaine
PUR
Nucleo secondo UL AWM Style
10493 (80 °C / 300 V)
Rayon de courbure, min., fixe
5 x cable diameter
Rayon de courbure, mobile
10 x cable diameter
Resistance to oils
in accordance with IEC 60811:404
Résistance à la flamme
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
sans LABS
Yes
Section du conducteur
0,34 mm²
Säker mot svetsstänk
No
Temperaturområde, fast lagd
-40...80 °C
Temperaturområde, rörligt
-25...80 °C
Vitesse
200 m/s
Vridtålighet
0 °/m
Welding spark resistance
No
Ytterdiameter
5.4 mm ± 0.2 mm
Цветовая кодировка
black
brown
white
blue
조사 교차결합
No

General technical data

Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65
IP66
IP67
IP68
when screwed in
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, 90° - socket 90°

Electrical properties

Isolationsmotstånd
108 Ω
Nominal voltage
250 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Connector standard
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP69, male contact, angled 90°, Plastic, shielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, angled 90°, Plastic, shielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
