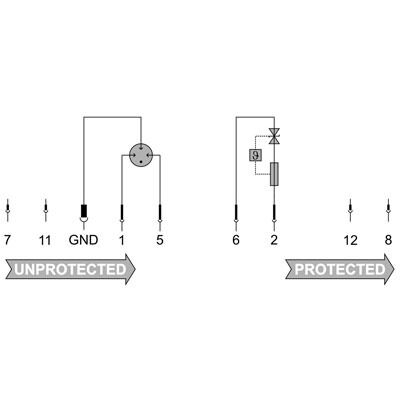

Circuit diagram
VSPC 1CL 48VAC
Derating curve
Discharge capacity
VSPC 1CL 48VAC
VSPC 1CL 48VAC

VSPC 1CL 48VAC

Surge protection for instrumentation and control, without warning function / function indicator

Item No. 8924520000
Download data sheet Engineering Support Product Downloads
Accessories 4 Counterparts 2 Related products 16
Approvals General ordering data Dimensions and weights Temperatures Probability of failure Environmental Product Compliance Rated data UL CSA protection data General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Further details of approvals Connection data Electrical data General data Ratings IECEx/ATEX/cUL Guarantee Important note Classifications Tender specification sheets

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319227/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319238/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319261/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UL)
E311081

General ordering data

Version
Surge protection for instrumentation and control, without warning function / function indicator
Order No.
8924520000
Type
VSPC 1CL 48VAC
GTIN (EAN)
4032248696154
Qty.
1 items

Dimensions and weights

Depth
69 mm
Depth (inches)
2,717 inch
Height
90 mm
Height (inches)
3,543 inch
Width
17,8 mm
Width (inches)
0,701 inch
Net weight
41 g

Temperatures

Storage temperature
-40 °C...80 °C
Ambient temperature
-40 °C…70 °C
Operating temperature
-40 °C...70 °C
Humidity
5...96 %

Probability of failure

SIL según IEC 61508
3
MTTF
2 537 a
SFF
95,67 %
λges
45
PFH in 1*10-9 per hour
1.95

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a
REACH SVHC
Lead 7439-92-1
SCIP
71e97bb7-979f-4330-94c0-20c629bb05e3

Rated data UL

Certificate No. (UL)
E311081
UL tanúsítvány
[UL 497b Certificate](PDF/E311081VOL1SEC2.pdf)

CSA protection data

Gas group C
IIB
Gas group D
IIA
Gas groups A, B
IIC
Input voltage, max. Ui
85 V
Internal capacity, max. CI
1 nF
Internal inductance, max. LI
0 µH

General data

Colour
orange
Design
Terminal
miscellaneous
Optical function display
No
protected current loops
1
Protection degree
IP20
Segment
Measurement - Monitoring - Setting
UL 94 flammability rating
V-0
Version
without warning function / function indicator

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Blixttestström, Iimp (10/350 µs) ledare-ledare
2.5 kA
Discharge current Imax (8/20µs) GND-PE
10 kA
Discharge current Imax (8/20µs) wire-PE
10 kA
Discharge current Imax (8/20µs) wire-wire
10 kA
Discharge current In (8/20µs) GND-PE
2.5 kA
Discharge current In (8/20µs) wire-PE
2.5 kA
Discharge current In (8/20µs) wire-wire
2.5 kA
Lightning test current, Iimp (10/350 µs) GND-PE
2.5 kA
Lightning test current, Iimp (10/350 µs) Wire-PE
2.5 kA
maksymalne napięcie stałe, Uc (AC)
60 V
Nivel de protección UP conductor - conductor
85 V
Number of poles
1
Overload - failure mode
Modus 2
Protection level on output side Wire-PE 1kV/µs, typically
450 V
Protection level on output side Wire-wire 1 kV/µs, typically
85 V
Protection level on output side Wire-wire 8/20 µs, typically
85 V
Protection par fusible
0.5 A
Pulse-reset capacity
≤ 500 ms
Rated current IN
350 mA
Rated load current IL
350 mA
Rated voltage (AC)
48 V
Rated voltage (DC)
68 V
Requirements category acc. to IEC 61643-21
C1
C2
C3
D1
Resistenza di passaggio
2.20 Ω
Schutzpegel UP Ader - PE
450 V
Signal transmission properties (-3 dB)
4.8 MHz
Signalling contact
No
Surge current-carrying capacity C1
<1 kA 8/20 μs
Surge current-carrying capacity C2
5 kA 8/20 μs
Surge current-carrying capacity C3
100 A 10/1000 μs
Surge current-carrying capacity D1
2.5 kA 10/350 μs
Tipo de tensión
AC
Макс. продолжительное напряжение, Uc (DC)
85 V
표준 규격
IEC 61643-21
HART-compatible

Further details of approvals

GOST certificate
[GOST-Zertifikat](PDF/7950_n1-n4.pdf)

Connection data

결선 유형
Pluggable in VSPC BASE

Electrical data

Spannungsart
AC

General data

Número de polos
1
Protection degree
IP20
Colour
orange

Ratings IECEx/ATEX/cUL

Certifikát cUL
[cUL Certificate](pdf/VSPC.PDF)

Guarantee

Time interval
5 years

Important note

Product information
Mode 2: State where the voltage-limiting part of the SPD was short-circuited due to a very low impedance within the SPD. The line is inoperable, but the measuring equipment is still protected by means of a short-circuit.

Classifications

ETIM 8.0
EC000943
ETIM 9.0
EC000943
ETIM 10.0
EC000943
ECLASS 14.0
27-17-15-01
ECLASS 15.0
27-17-15-01

Tender specification sheets

Długa specyfikacja
Surge protection plug for use in connection with the base element VSPC BASE 1CL for one floating-ground driven paired cable.Two-stage protection circuit consisting of coarse protection, decoupling resistors and fine protection between the signal wires and coarse common mode voltage protection to earth. Mechanical identification of the plug to the base element according to the switching type and rated voltage. Optical identification of the protected plug based on the type of protected switching and the voltage level. Protected plug with coding pin and counter-profile for the base element. It is possible to mark the plug.
Annonstext kort
Surge protection plug for base element VSPC BASE 1 CL, transverse voltage coarse and fine protection for one floating-ground powered paired cable, coarse common mode voltage protection to earth. Version: 48 V AC
