CABTITE SE 11-12 SML BK

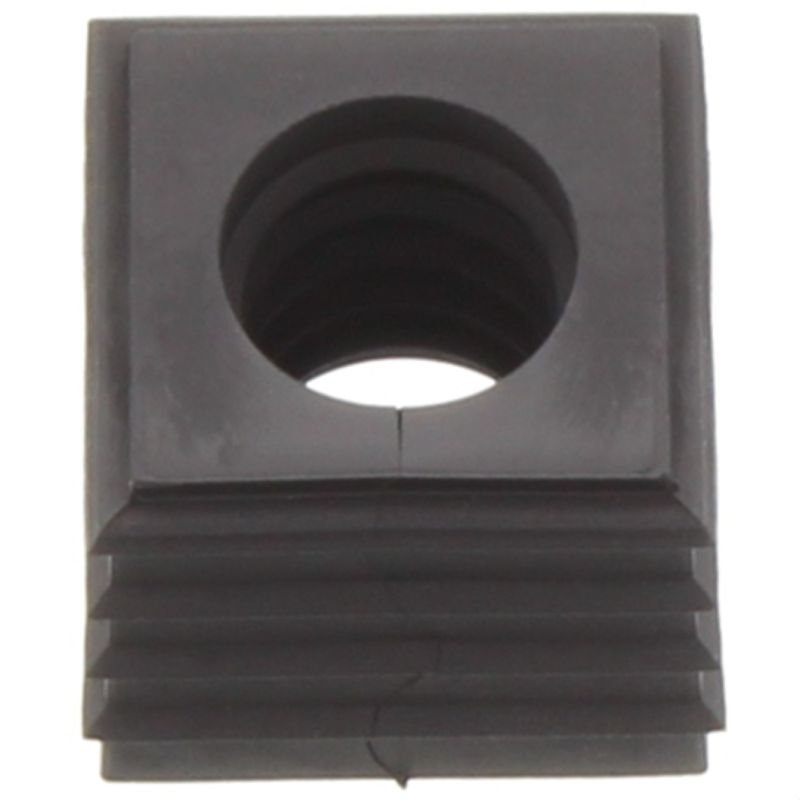

Similar to illustration

CABTITE SE 11-12 SML BK

Sealing element, Cabtite (cable entry system), TPE, Deep black, Height: 20.3 mm, Width: 20.3 mm, Depth: 17.7 mm, -40 °C…120 °C, IP66

Art.-Nr. 2584040000
Datenblatt herunterladen Engineering Support Product Downloads
İlgili ürünler 31
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223801

General ordering data

Version
Sealing element, Cabtite (cable entry system), TPE, Deep black, Height: 20.3 mm, Width: 20.3 mm, Depth: 17.7 mm, -40 °C…120 °C, IP66
Order No.
2584040000
Type
CABTITE SE 11-12 SML BK
GTIN (EAN)
4050118616293
Qty.
10 adet

Dimensions and weights

Profondeur
17,7 mm
Depth (inches)
0,697 inch
Height
20,3 mm
Height (inches)
0,799 inch
Largeur
20,3 mm
Width (inches)
0,799 inch
Net weight
4,8 g

Temperatures

Üzemi hőmérséklet
-40 °C...120 °C

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Elemento de sellado
1 small sealing element
Grado inflamabilidad según UL 94
HB
Halógenos
No
Kabeldurchmesser außen, min.
11 mm
Material básico
TPE
Outer cable diameter, max.
12 mm
Silicone
No
Tipo de protección
IP66

Classifications

ETIM 8.0
EC000879
ETIM 9.0
EC000879
ETIM 10.0
EC000879
ECLASS 14.0
27-14-08-07
ECLASS 15.0
27-14-08-07
