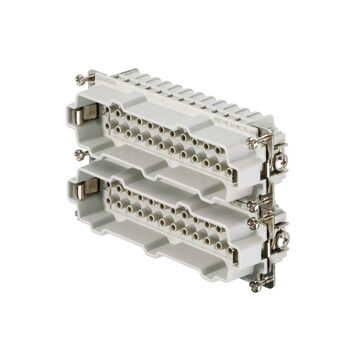

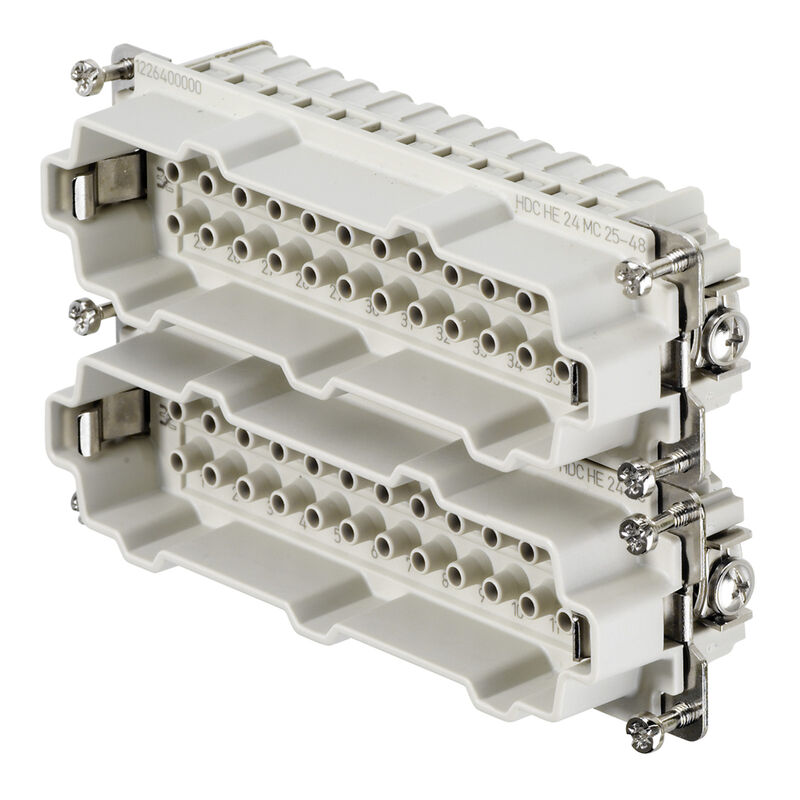

HDC insert, Male, 500 V, 16 A, Number of poles: 24, Crimp connection, Installation size: 8

Ürün No. 1226400000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 17 İlgili ürünler 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Version Classifications

Approvals

認可
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

バージョン
HDC insert, Male, 500 V, 16 A, Number of poles: 24, Crimp connection, Installation size: 8
N. d’ordine
1226400000
Type
HDC HE 24 MC 25-48
GTIN (EAN)
4008190061104
Кол.
1 adet

Dimensions and weights

Profondità
111 mm
Depth (inches)
4,37 inch
Height
34 mm
Height (inches)
1,339 inch
너비
34 mm
Width (inches)
1,339 inch
Net weight
63 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
1609748e-c278-4c9b-b3d1-e6215d2988cd
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

Dimensions

Altezza Maschio
34 mm
Larghezza
34 mm
Lunghezza, zoccolo
111 mm

General data

Basic material
Copper alloy
BG
8
Colour
beige
Conductor cross-section
4 mm²
Installation size
8
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Low smoke acc. DIN EN 45545-2
Yes
Nombres de contacts de puissance
24
Number of poles
24
Número de contactos de señal
0
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Rated current (cUR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    18 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    14,5 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    12 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    7,5 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    8 A
Rated current (DIN EN 61984)
16 A
Rated current (UR)
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    20 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    15 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    10 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    7 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    5 A
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage (DIN EN 61984)
500 V
Rated voltage according to UL/CSA
600 V AC/DC
Series
HE
Tightening torque, max. PE connection
1,5 Nm
Tightening torque, min. PE connection
1,2 Nm
Type
Male
Type of connection
Crimp connection
UL 94 flammability rating
V-0
Volume resistance
≤2 mΩ

Connection data PE

Coppia di serraggio max. collegamento PE
1,5 Nm
Coppia di serraggio, min. collegamento PE
1,2 Nm
Dimensione lama (a taglio) (collegamento PE)
SD 0.8 x 4.0
Lunghezza di spellatura, collegamento PE
10 mm
Sezione di collegamento cavo AWG (PE), max.
AWG 12
Sezione di collegamento cavo AWG (PE), min.
AWG 20
Sezione di dimensionamento
4 mm²
Tipo di collegamento PE
Screw connection
Vite di fissaggio
M 4

Version

BG
8
Dimensioni di installazione
8
Lunghezza di spellatura, collegamento di dimensionamento
7,5 mm
Materiale di base
Copper alloy
Resistenza di passaggio
≤2 mΩ
Sezione di collegamento cavo AWG, min.
AWG 20
Sezione di collegamento cavo, flessibile con terminali DIN 46228/4, max.
4 mm²
Sezione di collegamento cavo, flessibile, max.
4 mm²
Sezione di collegamento cavo, flessibile, min.
0,5 mm²
Sezione di collegamento cavo, max.
4 mm²
Sezione di collegamento cavo, min.
0,5 mm²
Sezione di collegamento cavo, rigido, max.
4 mm²
Sezione di collegamento cavo, rigido, min.
0,5 mm²
Tipo di collegamento
Crimp connection
Vezeték csatlakozási keresztmetszet AWG, max.
AWG 12

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
