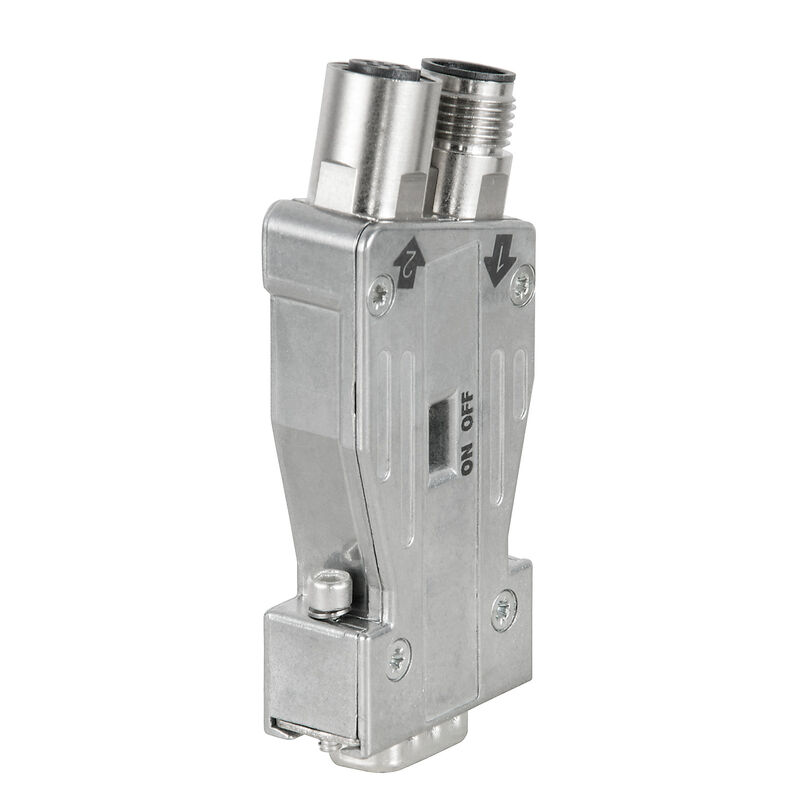

PB-DP SUB-D M12 180
Podobné ilustraci
PB-DP SUB-D M12 180
Schéma připojení

PB-DP SUB-D M12 180

SUB-D

Produkt ID 1264180000
Download datablad Product Downloads
Anvendte produkter 14
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technical specifications for sub-D connector Classifications

Approvals

ROHS
Conform

General ordering data

Version
SUB-D
Order No.
1264180000
Type
PB-DP SUB-D M12 180
GTIN (EAN)
4050118054279
Qty.
1 Styk

Dimensions and weights

Depth
14.8 mm
Depth (inches)
0.583 inch
Height
80.7 mm
Height (inches)
3.177 inch
Width
31 mm
Width (inches)
1.22 inch
Net weight
90 g

Temperatures

Humidity
Max. 75% at +25°C, non-condensing

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6aI
REACH SVHC
Lead 7439-92-1
SCIP
a9842d10-2b72-46ab-baf9-9c77c24a2a09

Technical specifications for sub-D connector

Anslutningsvinkel
180°
BUS interface
D-Sub 9-pole
Pin
BUS, cable interface
M12 B-coded male and female connector, pins 2 and 4 assigned
Interlock
UNC4-40
Plug-in connector and pin assignment
In accordance with the PROFIBUS specification
Programming interface
No
Temperature range of housing
-20...+70 ° C
Terminating resistor available
No
Tightening torque
0.3 Nm
Wilgotność
Max. 75% at +25°C, non-condensing
Вид защиты
IP30
Скорость передачи данных
12 MBit/s
Циклы коммутации
≥ 200
하우징 기본 재질
ZnAl

Classifications

ETIM 8.0
EC001132
ETIM 9.0
EC001132
ETIM 10.0
EC001132
ECLASS 14.0
27-44-03-02
ECLASS 15.0
27-44-03-22
