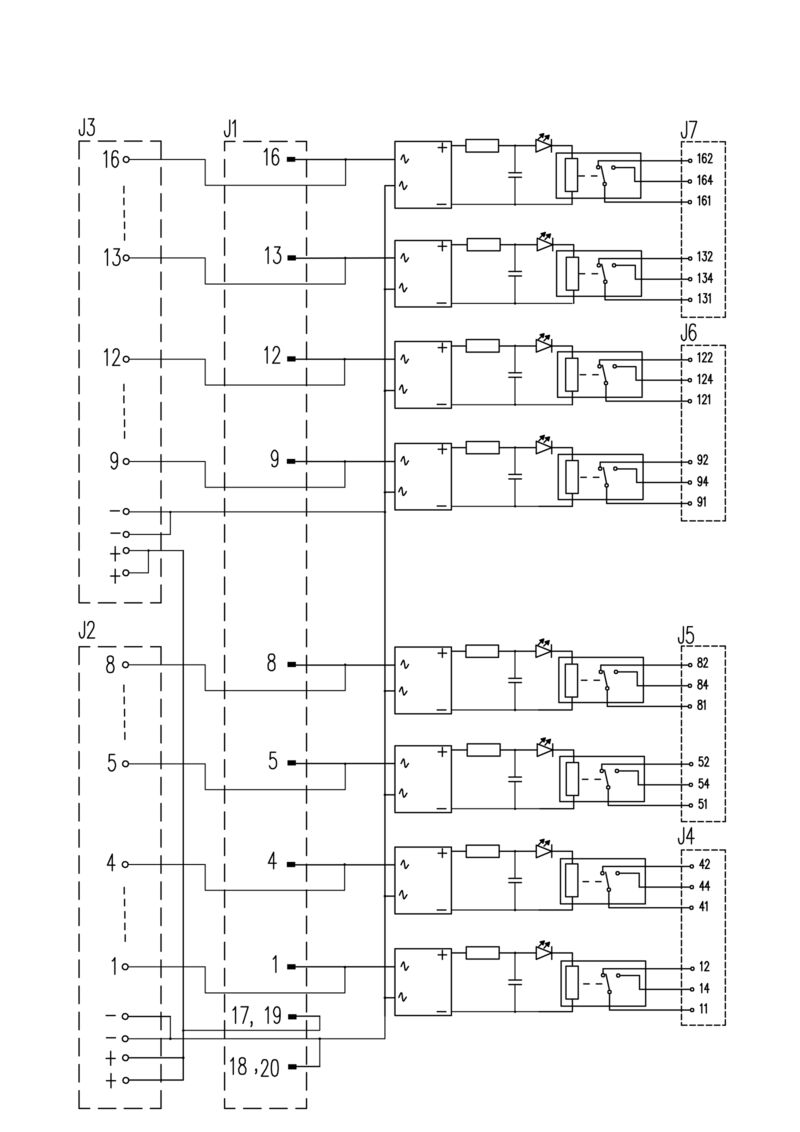

RSM-16 24VAC/DC 1CO Z
RSM-16 24VAC/DC 1CO Z

RSM-16 24VAC/DC 1CO Z

Bu ürün yakında mevcut olmayacak.

Interface, RSM, PUSH IN

항목 번호 1448380000
Gegevensblad downloaden Ürün İndirmleri
İlgili ürünler 36
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL General data Connection data Rating data Ratings data input Ratings data output Insulation coordination (EN50178) Insulation coordinates (EN50178) Connection field Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
인증 번호(UR)
E141197

General ordering data

버전
Interface, RSM, PUSH IN
Order No.
1448380000
Tipo
RSM-16 24VAC/DC 1CO Z
GTIN (EAN)
4050118252934
수량
1 adet
Delivery status
This article will no longer be available in the future.
Last order date
/Date(1770678000000)/

Dimensions and weights

깊이
66 mm
Depth (inches)
2,598 inch
높이
87 mm
Height (inches)
3,425 inch
너비
259 mm
Width (inches)
10,197 inch
순중량
353,772 g

Temperatures

보관 온도
-40...60 °C
작동 온도
-25...50 °C

Environmental Product Compliance

RoHS 준수 상태
Compliant
REACH SVHC
Lead 7439-92-1
4,4'-isopropylidenediphenol 80-05-7
SCIP
66e752f3-a24f-4fef-89c4-f29f52d01390

Rated data UL

Operating temperature UL, max.
25 °C
Operating temperature UL, min.
0 °C
Rated voltage AC UN (supply)
24 V
Tensión nominal DC UN (alimentación)
24 V
Rated current (supply)
1 A
Rated voltage AC UN (input)
24 V
Rated voltage DC UN (input)
24 V
정격 전압 AC UN (출력)
250 V
Rated current Imax (output)
4,6 A

General data

LED status display per relay
green

Connection data

Connection (field side)
LMFS 5.08 mm
Connection on control side
LMFS 5.08 + plug-in connectors in acc. with IEC60603-13 / DIN41651, 20-pin

Rating data

Mekanisk livslängd
30 x 106 switching cycles

Ratings data input

Input voltage
24 V AC ± 10%
24 V DC ± 10%
Input current
DC 22.9 mA / AC 13.9 mA

Ratings data output

Relay type
RCL
Type of output
Potential-free contact
Material of contacts
AgNi 90/10
Rated voltage
≤ 250 V AC
Max. AC continuous current
6 A
minimalne napięcie styków
5 V
Минимальный ток контакта
0,1 A

Insulation coordination (EN50178)

Pollution severity level
2
Pulse voltage test (1,2/50μs)
6 kV
Insulation test voltage AC
1,2 kV

Insulation coordinates (EN50178)

Rated input insulation voltage
<50 V AC
Rated output insulation voltage
250 V AC
Overvoltage category input/output
III
Overvoltage category output/output
II
Pollution severity level
2
Pulse voltage test (1,2/50μs)
6 kV
Insulation test voltage AC
1,2 kV
Clearance input/output
≥ 5.5 mm

Connection field

Clamping range, max.
2,5 mm²
Clamping range, min.
0,12 mm²
Flexible with sleeve, max.
2,5 mm²
Flexible, max. H05(07) V-K
2,5 mm²
Flexible, min. H05(07) V-K
0,02 mm²
Max. wire cross-section, AWG
AWG 12
Min. wire cross-section, AWG
AWG 26
Solid, max. H05(07) V-U
2,5 mm²
Solid, min. H05(07) V-U
0,12 mm²
Stripping length
10 mm
Type of connection
PUSH IN

Classifications

ETIM 8.0
EC002780
ETIM 9.0
EC002780
ETIM 10.0
EC002780
ECLASS 14.0
27-14-11-52
ECLASS 15.0
27-14-11-52
