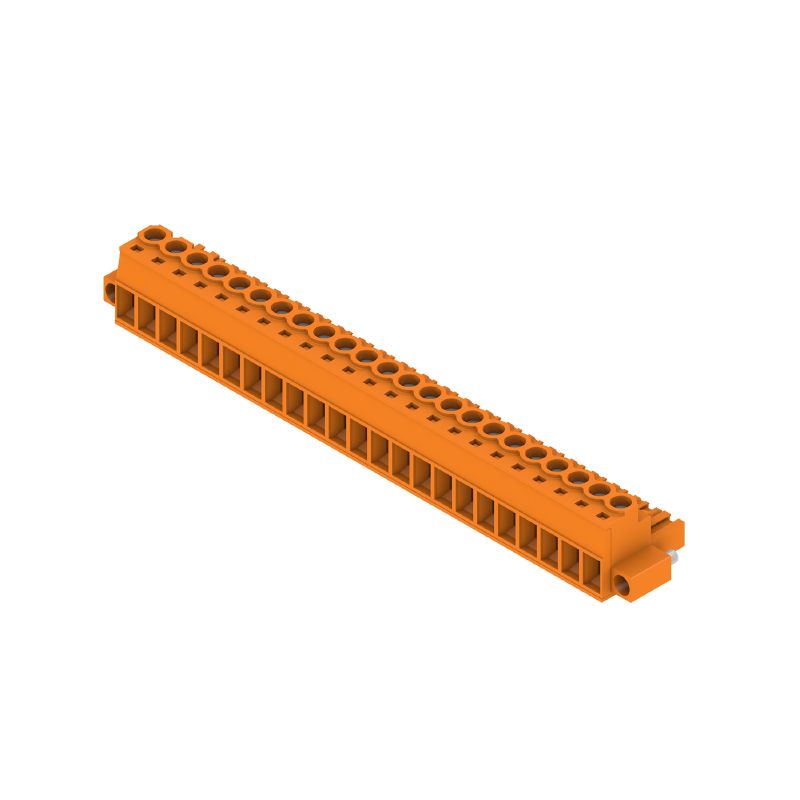

BLZP 5.08HC/23/180F SN OR BX — Product image

Download datablad Anvendte produkter

BLZP 5.08HC/23/180F SN OR BX

PCB plug-in connector, female plug, 5.08 mm, Number of poles: 23, 180°, Clamping yoke connection, Clamping range, max. : 4 mm², Box

Produkt ID 1944300000

Egenskaber

General ordering data

Version	PCB plug-in connector, female plug, 5.08 mm, Number of poles: 23, 180°, Clamping yoke connection, Clamping range, max. : 4 mm², Box
Order No.	1944300000
Type	BLZP 5.08HC/23/180F SN OR BX
GTIN (EAN)	4032248618880
Qty.	12 Styk
Product data	IEC: 400 V / 23 A / 0.2 - 4 mm² UL: 300 V / 20 A / AWG 26 - AWG 12
Packaging	Box

Dimensions and weights

Depth	20 mm
Depth (inches)	0,787 inch
Height	16,1 mm
Height (inches)	0,634 inch
Width	126,64 mm
Width (inches)	4,986 inch
Net weight	39,19 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

System Parameters

Product family	OMNIMATE Signal - series BL/SL 5.08
Type of connection	Field connection
Wire connection method	Clamping yoke connection
Pitch in mm (P)	5,08 mm
Pitch in inches (P)	0,2 "
Conductor outlet direction	180°
Number of poles	23
L1 in mm	111,76 mm
L1 in inches	4,4 "
Number of rows	1
Pin series quantity	1
Rated cross-section	4 mm²
Touch-safe protection acc. to DIN VDE 57 106	Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470	IP20 plugged/ IP10 unplugged
Protection degree	IP20
Volume resistance	≤5 mΩ
Can be coded	Yes
Stripping length	7 mm
Clamping screw	M 2.5
Screwdriver blade	0.6 x 3.5 PH 1 PZ 1
Screwdriver blade standard	DIN 5264 ISO 8764/2-PH ISO 8764/2-PZ
Plugging cycles	25
Plugging force/pole, max.	10 N
Pulling force/pole, max.	9 N
Tightening torque	Torque type: Wire connection Usage information: Tightening torque: min.: 0,4 Nm max.: 0,5 Nm Torque type: Screw flange Usage information: Tightening torque: min.: 0,2 Nm max.: 0,25 Nm

Material data

Insulating material	PBT
Colour	orange
Colour chart (similar)	RAL 2000
Insulating material group	IIIa
Comparative Tracking Index (CTI)	≥ 200
UL 94 flammability rating	V-0
Contact material	Cu-alloy
Contact surface	tinned
Layer structure of plug contact	4...8 µm Sn hot-dip tinned
Storage temperature, min.	-40 °C
Storage temperature, max.	70 °C
Operating temperature, min.	-50 °C
Operating temperature, max.	100 °C
Temperature range, installation, min.	-25 °C
Temperature range, installation, max.	100 °C

Conductors suitable for connection

Clamping range, min.	0,13 mm²
Clamping range, max.	4 mm²
Wire connection cross section AWG, min.	AWG 30
Wire connection cross section AWG, max.	AWG 12
Solid, min. H05(07) V-U	0,2 mm²
Solid, max. H05(07) V-U	4 mm²
Flexible, min. H05(07) V-K	0,2 mm²
Flexible, max. H05(07) V-K	4 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.	0,2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.	2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.	0,2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.	4 mm²
Plug gauge in accordance with EN 60999 a x b; ø	2.8 mm x 2.4 mm
Clampable conductor	Cross-section for conductor connection: Type: fine-wired nominal: 0,5 mm² wire end ferrule: Stripping length: nominal: 6 mm Recommended wire-end ferrule: 0282600000 Stripping length: nominal: 8 mm Recommended wire-end ferrule: 0409500000 Cross-section for conductor connection: Type: fine-wired nominal: 1 mm² wire end ferrule: Stripping length: nominal: 6 mm Recommended wire-end ferrule: 0372600000 Cross-section for conductor connection: Type: fine-wired nominal: 1,5 mm² wire end ferrule: Stripping length: nominal: 7 mm Recommended wire-end ferrule: 0372700000 Cross-section for conductor connection: Type: fine-wired nominal: 2,5 mm² wire end ferrule: Stripping length: nominal: 7 mm Recommended wire-end ferrule: 0373000000 Stripping length: nominal: 10 mm Recommended wire-end ferrule: 9019160000
Reference text	The outside diameter of the plastic collar should not be larger than the pitch (P) Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard	IEC 60664-1 IEC 61984
Rated current, min. number of poles (Tu=20°C)	23 A
Rated current, max. number of poles (Tu=20°C)	18 A
Rated current, min. number of poles (Tu=40°C)	21 A
Rated current, max. number of poles (Tu=40°C)	16 A
Rated voltage for surge voltage class / pollution degree II/2	400 V
Rated voltage for surge voltage class / pollution degree III/2	320 V
Rated voltage for surge voltage class / pollution degree III/3	250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2	4.000 V
Rated impulse voltage for surge voltage class/ pollution degree III/2	4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3	4 kV
Short-time withstand current resistance	3 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)	CSA
Certificate No. (CSA)	200039-1121690
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group C / CSA)	50 V
Rated voltage (Use group D / CSA)	300 V
Rated current (Use group B / CSA)	20 A
Rated current (Use group D / CSA)	20 A
Wire cross-section, AWG, min.	AWG 30
Wire cross-section, AWG, max.	AWG 12
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)	UR
Certificate No. (UR)	E60693
Institute (cURus)	CURUS
Certificate No. (cURus)	E60693
Rated voltage (Use group B / UL 1059)	300 V
Rated voltage (Use group D / UL 1059)	300 V
Rated current (Use group B / UL 1059)	20 A
Rated current (Use group D / UL 1059)	10 A
Wire cross-section, AWG, min.	AWG 26
Wire cross-section, AWG, max.	AWG 12
Reference to approval values	Specifications are maximum values, details - see approval certificate.

Packing

Packaging	Box
VPE length	350 mm
VPE width	135 mm
VPE height	30 mm

Type tests

Test: Durability of markings	Standard: DIN EN 61984 section 7.3.2 / 09.02 taking pattern from DIN EN 60068-2-70 / 07.96 Test: mark of origin, rated voltage, rated cross-section, type of material Evaluation: available Test: durability Evaluation: passed
Test: Misengagement (Non-interchangeability)	Standard: DIN EN 60512-13-5 / 11.06, IEC 60512-13-5 / 02.06 Test: 180° turned with coding elements Evaluation: passed Test: visual examination Evaluation: passed
Test: Clampable cross section	Standard: DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02 Conductor type: Type of conductor and conductor cross-section: solid 0.2 mm² Type of conductor and conductor cross-section: stranded 0.2 mm² Type of conductor and conductor cross-section: solid 2.5 mm² Type of conductor and conductor cross-section: stranded 2.5 mm² Type of conductor and conductor cross-section: AWG 26/1 Type of conductor and conductor cross-section: AWG 26/19 Evaluation: passed
Test for damage to and accidental loosening of conductors	Standard: DIN EN 60999-1 section 9.4 / 12.00 Requirement: 0.2 kg Conductor type: Type of conductor and conductor cross-section: AWG 26/1 Type of conductor and conductor cross-section: AWG 26/19 Evaluation: passed Requirement: 0.3 kg Conductor type: Type of conductor and conductor cross-section: solid 0.5 mm² Type of conductor and conductor cross-section: stranded 0.5 mm² Evaluation: passed Requirement: 0.9 kg Conductor type: Type of conductor and conductor cross-section: AWG 12/1 Type of conductor and conductor cross-section: AWG 12/19 Evaluation: passed
Pull-out test	Standard: DIN EN 60999-1 section 9.5 / 12.00 Requirement: ≥10 N Conductor type: Type of conductor and conductor cross-section: AWG 26/1 Type of conductor and conductor cross-section: AWG 26/19 Evaluation: passed Requirement: ≥20 N Conductor type: Type of conductor and conductor cross-section: H05V-U0.5 Type of conductor and conductor cross-section: H05V-K0.5 Evaluation: passed Requirement: ≥60 N Conductor type: Type of conductor and conductor cross-section: H07V-U4.0 Type of conductor and conductor cross-section: H07V-K4.0 Type of conductor and conductor cross-section: AWG 12/1 Type of conductor and conductor cross-section: AWG 12/19 Evaluation: passed

Important note

IPC conformity

Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.

Notes

Additional variants on request

Gold-plated contact surfaces on request

Rated current related to rated cross-section & min. No. of poles.

Wire end ferrule without plastic collar to DIN 46228/1

Wire end ferrule with plastic collar to DIN 46228/4

P on drawing = pitch

Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.

In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load

Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months

Downloads

Approval/Certificate/Document of Conformity	[CB Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_68374) [CB Testreport](https://mdcop.weidmueller.com/mediadelivery/asset/900_68376) [Declaration of the Manufacturer](https://mdcop.weidmueller.com/mediadelivery/asset/900_39474)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_50676)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.1944300000)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1944300000)
Product Change Notification	[20220106 BLT and BLZP in pitch 5.0x – Addition of a screw locking](https://mdcop.weidmueller.com/mediadelivery/asset/900_249893) [20220106 BLT und BLZP im Raster 5.0x – Ergänzung einer Schraubensicherung](https://mdcop.weidmueller.com/mediadelivery/asset/900_249894)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)
Brochures	[FL DRIVES EN](http://download.weidmueller.com/asset/download/file/40061) [MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL ELEVATOR EN](http://download.weidmueller.com/asset/download/file/38203) [FL POWER SUPPLY EN](http://download.weidmueller.com/asset/download/file/38213) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [FL DRIVES DE](http://download.weidmueller.com/asset/download/file/40062) [FL BUILDING SAFETY EN](http://download.weidmueller.com/asset/download/file/38207) [FL APPL LED LIGHTING EN](http://download.weidmueller.com/asset/download/file/38275) [FL INDUSTR.CONTROLS EN](http://download.weidmueller.com/asset/download/file/38285) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL HEATING ELECTR EN](http://download.weidmueller.com/asset/download/file/38195) [FL APPL_INVERTER EN](http://download.weidmueller.com/asset/download/file/38256) [FL_BASE_STATION_EN](http://download.weidmueller.com/asset/download/file/38194)

Classifications

ETIM 6.0	EC002638
ETIM 7.0	EC002638
ETIM 8.0	EC002638
ETIM 9.0	EC002638
ECLASS 9.0	27-44-03-09
ECLASS 9.1	27-44-03-09
ECLASS 10.0	27-44-03-09
ECLASS 11.0	27-46-02-02
ECLASS 12.0	27-46-02-02
ECLASS 13.0	27-46-02-02
ECLASS 14.0	27-46-02-02

Approvals

Approvals	![CSA](/picture/CSA.gif) ![CURUS](/picture/CURUS.gif) ![KEMAKEUR](/picture/KEMAKEUR.gif) ![UR](/picture/UR.gif)
ROHS	Conform
UL File Number Search	[UL Website](LINK/UL_search.html)
Certificate No. (UR)	E60693
Certificate No. (cURus)	E60693
