FUCR SW
Product image

FUCR SW

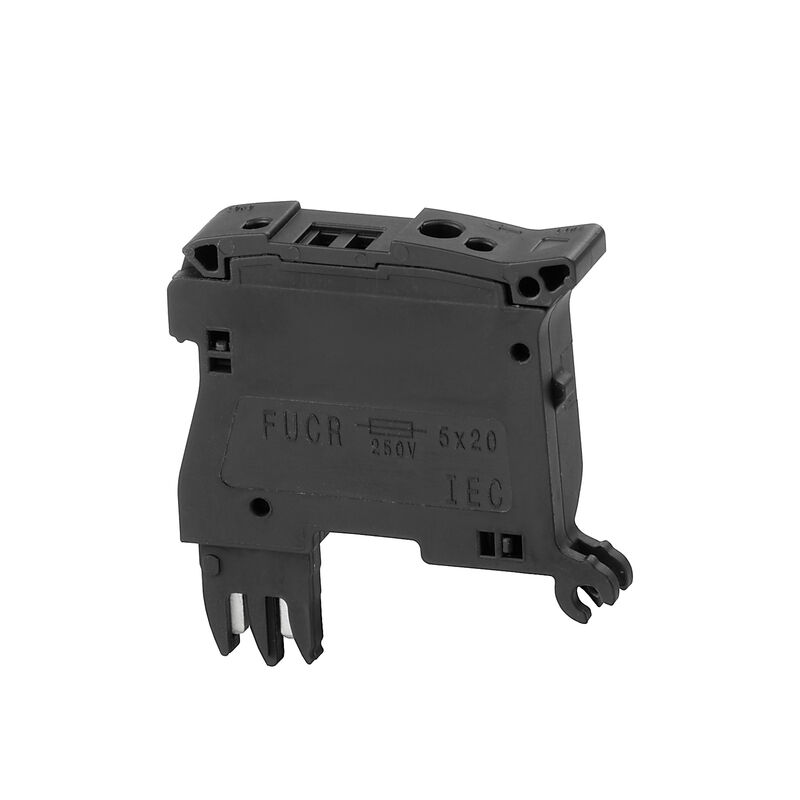

Fuse holder for feed-through modular terminal, black, 6.3 A, Pivoting, pluggable, V-0, Wemid

Item No. 1167630000
Download data sheet Engineering Support Product Downloads
Is accessory of 4 Related products 72
Agréments General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data General Clasificaciones

Agréments

ROHS
Conforme

General ordering data

Version
Fuse holder for feed-through modular terminal, black, 6.3 A, Pivoting, pluggable, V-0, Wemid
Order No.
1167630000
Type
FUCR SW
GTIN (EAN)
4032248113903
Förp.
10 items

Dimensions and weights

Depth
40.5 mm
Depth (inches)
1.594 inch
Height
38 mm
Höhe (inch)
1.496 inch
Width
8 mm
Larghezza (pollici)
0.315 inch
Net weight
6.3 g

Temperatures

Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
długotrwała temperatura użytkowa, maks.
120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Pas de SVHC au-dessus de 0,1 % en poids

Material data

Basic material
Wemid
Colour
검정
Класс пожаростойкости UL 94
V-0

System specifications

Version
Fuse cartridge

Additional technical data

Installation advice
Direct mounting
Type of mounting
Plugged

General

Installation advice
Direct mounting

Clasificaciones

ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
