HDC S6/36 FC
HDC S6/36 FC
HDC S6/36 FC

HDC S6/36 FC

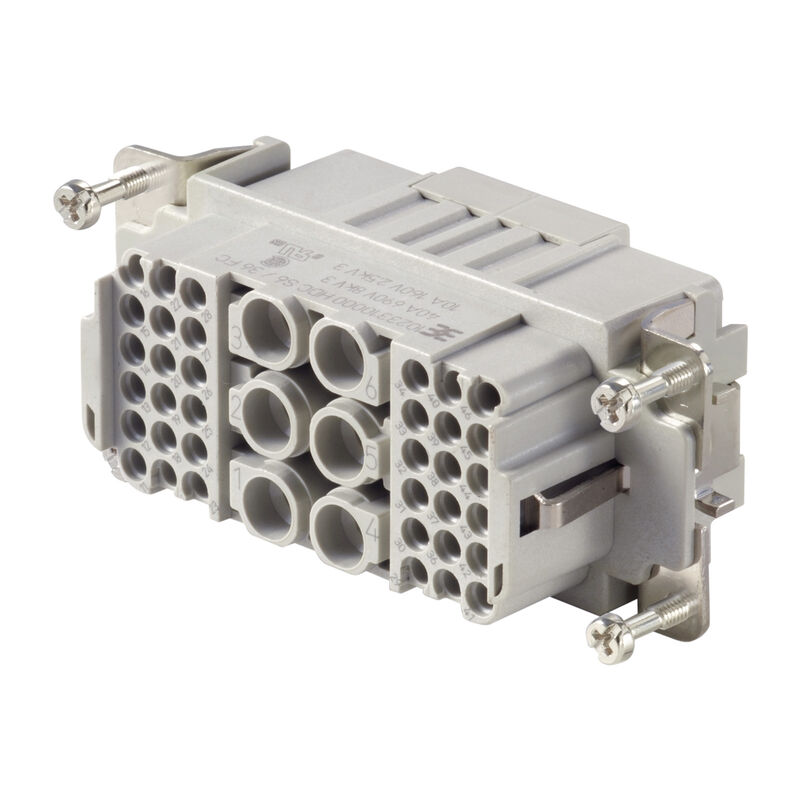

HDC insert, Female, 690 V, 40 A, Number of poles: 42, Crimp connection, Size: 6

Product ID 1023310000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 16 Verwante producten 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Connection data PE Power contact Signal contact Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version
HDC insert, Female, 690 V, 40 A, Number of poles: 42, Crimp connection, Size: 6
Order No.
1023310000
Type
HDC S6/36 FC
GTIN (EAN)
4032248739455
Qty.
1  items

Dimensions and weights

Depth
84,5  mm
Depth (inches)
3,327  inch
Height
40,6  mm
Height (inches)
1,598  inch
Width
34  mm
Width (inches)
1,339  inch
Net weight
69  g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
Potassium perfluorobutane sulfonate 29420-49-3
SCIP
1609748e-c278-4c9b-b3d1-e6215d2988cd
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Resistant
  • Substance:
    Ammonia, watery
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Petrol
  • Chemical resistance:
    Resistant
  • Substance:
    Benzene
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Acetic acid, concentrated
  • Chemical resistance:
    Resistant
  • Substance:
    Potassium hydroxide
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Methanol
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Motor oil
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Lye, diluted
  • Chemical resistance:
    Resistant
  • Substance:
    Hydrochlorofluorocarbons
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Outdoor use
  • Chemical resistance:
    Conditionally resistant

Dimensions

Height of socket
40,6  mm
Total length base
84,5  mm
Width
34  mm

General data

BG
6
Colour
beige
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation strength
1010 Ω
Low smoke acc. DIN EN 45545-2
Yes
Material
Copper alloy
Number of poles
42
Number of power contacts
6
Number of signal contacts
36
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Power contact, type
HX
Rated current (DIN EN 61984)
40  A
Rated impulse voltage (DIN EN 61984)
8  kV
Rated voltage (DIN EN 61984)
690  V
Rated voltage according to UL/CSA
600 V AC/DC
Series
MixMate
Signal contact, type
HD
Size
6
Type
Female
Type of connection
Crimp connection
UL 94 flammability rating
V-0
Volume resistance
≤2 mΩ

Connection data PE

Blade size, slotted (PE connection)
SD 1.2 x 6.5
Connection type PE
Screw connection
Fixing screw
M 5
Rated cross-section
6  mm²
Stripping length PE connection
13  mm
Tightening torque, max. PE connection
2,5  Nm
Tightening torque, min. PE connection
2  Nm
Wire cross section, AWG (PE), max.
AWG 10
Wire cross section, AWG (PE), min.
AWG 20

Power contact

Clamping range, power contact, max.
6  mm²
Clamping range, power contact, min.
1,5  mm²
Number of poles, performance contact
6
Rated current (DIN EN 61984), power contact
40  A
Rated impulse voltage (DIN EN 61984), power contact
8  kV
Rated voltage (DIN EN 61984), power contact
690  V
Stripping length, performance contact
9  mm
Type of connection, power contact
Crimp connection

Signal contact

Clamping range, signal contact, max.
2,5  mm²
Clamping range, signal contact, min.
0,5  mm²
Number of poles, signal
36
Rated current (DIN EN 61984), signal
10  A
Rated current power circuit (cUR)
  • Wire connection cross section AWG:
    AWG 10
  • Rated current:
    19 A
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    15 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    10 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    6 A
Rated current power circuit (UR)
  • Wire connection cross section AWG:
    AWG 10
  • Rated current:
    40 A
  • Wire connection cross section AWG:
    AWG 12
  • Rated current:
    20 A
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    15 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    10 A
Rated current signal circuit (cUR)
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    7 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    7 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    5 A
  • Wire connection cross section AWG:
    AWG 22
  • Rated current:
    3 A
Rated current signal circuit (UR)
  • Wire connection cross section AWG:
    AWG 14
  • Rated current:
    10 A
  • Wire connection cross section AWG:
    AWG 16
  • Rated current:
    8 A
  • Wire connection cross section AWG:
    AWG 18
  • Rated current:
    7 A
  • Wire connection cross section AWG:
    AWG 20
  • Rated current:
    5 A
  • Wire connection cross section AWG:
    AWG 22
  • Rated current:
    3 A
Rated impulse voltage (DIN EN 61984), signal
2,5  kV
Rated voltage (DIN EN 61984), signal contact
160  V
Stripping length, signal
8  mm
Type of connection, signal
Crimp connection

Version

BG
6
Conductor cross-section, max.
6  mm²
Conductor cross-section, min.
1,5  mm²
Material
Copper alloy
Size
6
Stripping length, rated connection
9  mm
Type of connection
Crimp connection
Volume resistance
≤2 mΩ
Wire connection cross section AWG, max.
AWG 10
Wire connection cross section AWG, min.
AWG 16
Wire connection cross section, finely stranded, max.
6  mm²
Wire connection cross section, finely stranded, min.
0,5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5  mm²
Wire cross-section, solid, max.
6  mm²
Wire cross-section, solid, min.
0,5  mm²

Classifications

ETIM 6.0
EC000438
ETIM 7.0
EC000438
ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 9.0
27-44-02-05
ECLASS 9.1
27-44-02-05
ECLASS 10.0
27-44-02-05
ECLASS 11.0
27-44-02-05
ECLASS 12.0
27-44-02-05
ECLASS 13.0
27-44-02-05
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
