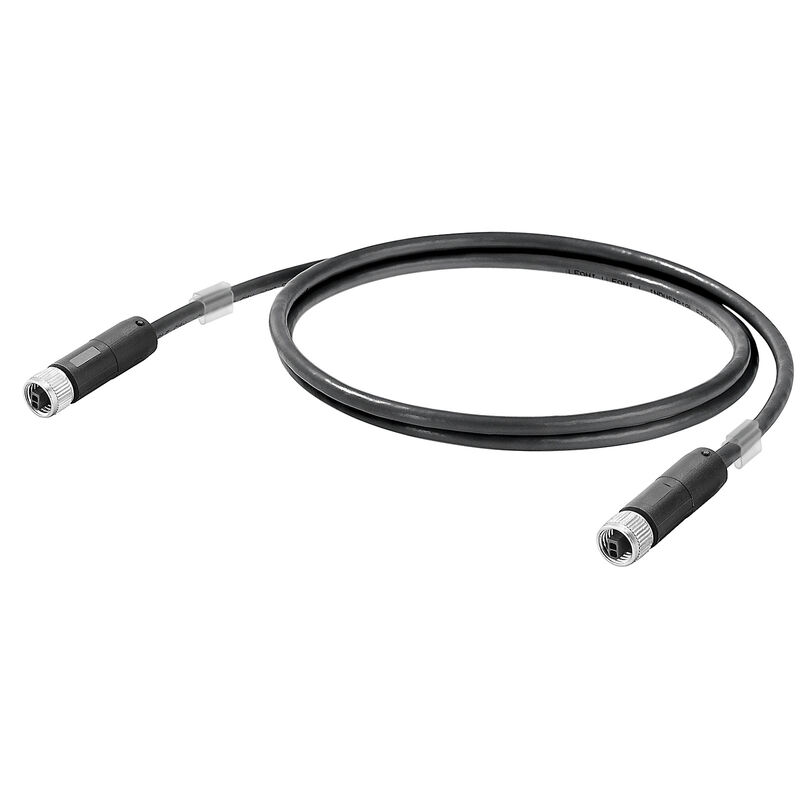

Patch cable, M8 SPE ( IEC63171-5) - IP67 socket contact - straight, M8 SPE ( IEC63171-5) - IP67 socket contact - straight, T1-B, PVC, 15 m

Item No. 2726050150
Download data sheet Engineering Support Product Downloads
Related products 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Electrical properties Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Patch cable, M8 SPE ( IEC63171-5) - IP67 socket contact - straight, M8 SPE ( IEC63171-5) - IP67 socket contact - straight, T1-B, PVC, 15 m
Order No.
2726050150
Type
IE-S1DS2VE0150TM1TM1-E
GTIN (EAN)
4064675597476
Qty.
1  items

Dimensions and weights

Length
15  m
Length (inches)
590.551  inch
Net weight
515  g

Temperatures

Operating temperature
-40 °C...85 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Electrical properties

Current-carrying capacity
  • Current-carrying capacity:
    3.5 A
  • Temperature:
    0 °C
Dielectric strength, contact / contact
1000 V DC
Dielectric strength, contact / shield
2250 V DC
PoE / PoE+
PoDL acc. to IEEE 802.3bu / cg

Standards

Connector standard
IEC 63171-5

Cable structure

Colour coding
white / blue
Complete shielding
Shielding braid made from copper wiring
Cross-section
2*AWG 22
Insulation
PE
Insulation diameter 2
1.65  mm
Material sheath
PVC
Number of wires
2
Overlap of shielding braid
80  %
Sheath diameter, max.
5.3  mm
Sheath diameter, min.
4.9  mm
Sheathing colour
black
Shielding
STP
Strands
7

Electrical properties of cable

Capacity at 800 Hz
1.6  nF/km
Category
T1-B
Characteristic impedance
100 ± 15 Ω at 20 MHz
Coupling attenuation 1 to 600 MHz
Type I
Rated current
3.5  A
Rated voltage (DC)
60 V
Resistance differential
2  %
Test voltage: wire-wire-shield
1 kV DC, 1 min
Transmission rate
10/100 MBit/s
1000 MBit/s

Mechanical and material properties of cable

Colour
black
Halogen
Yes
Resistance to oils
IRM 902/903 oil resistance test at (70℃x4h)
Resistance to spread of flame
FT1
UV-resistant
Complies with UL 1581 Sec. 1200

Plug

Plug left
M8, Number of poles: 2, IP67, female contact, straight, Plastic, IEC 63171-5, shielded
Plug right
M8, Number of poles: 2, IP67, female contact, straight, Plastic, IEC 63171-5, shielded

Plug, left

Plug left
M8, Number of poles: 2, IP67, female contact, straight, Plastic, IEC 63171-5, shielded

Plug, right

Plug right
M8, Number of poles: 2, IP67, female contact, straight, Plastic, IEC 63171-5, shielded

Classifications

ETIM 6.0
EC002599
ETIM 7.0
EC002599
ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 9.0
27-06-03-08
ECLASS 9.1
27-06-03-08
ECLASS 10.0
27-06-03-08
ECLASS 11.0
27-06-03-08
ECLASS 12.0
27-06-03-08
ECLASS 13.0
27-06-03-08
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
