MF-WO 9/6 MC NE WS

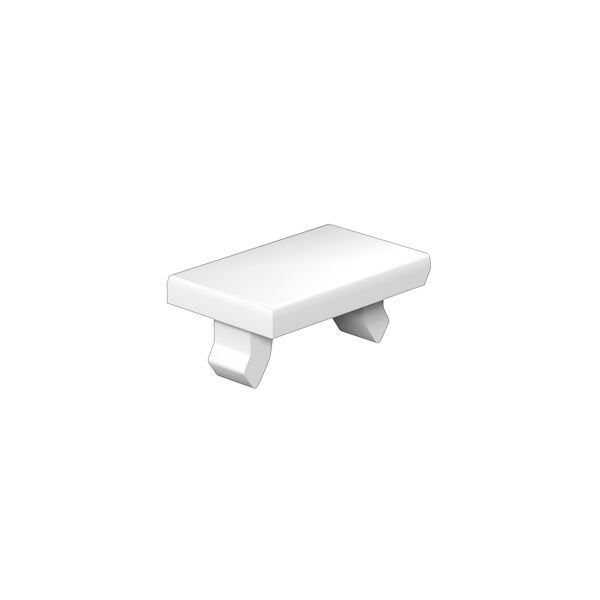

MultiFit, Terminal marker, 9 x 6 mm, Pitch in mm (P): 6.00 Woertz, white

Product ID 1716820000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Verwante producten 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Connector markers Classifications

Approvals

ROHS
Conform

General ordering data

Versión
MultiFit, Terminal marker, 9 x 6 mm, Pitch in mm (P): 6.00 Woertz, white
Best.-Nr.
1716820000
Tipo
MF-WO 9/6 MC NE WS
GTIN (EAN)
4008190344467
Qty.
400 items

Dimensions and weights

Altura
9 mm
Height (inches)
0,354 inch
Anchura
6 mm
Width (inches)
0,236 inch
Net weight
0,255 g

Temperatures

Gama de temperaturas de servicio
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.002 kg CO2 eq.

General data

anpassad skrivare
[PRINTJET CONNECT](~/p/2715590000)
Application/manufacturer
Woertz
Campo delle temperature di impiego, min.
-40 °C
Classe d'inflammabilité selon UL 94
V-2
Largeur
6 mm
Material colour according to resistance code
9
Materiał podstawowy
Polyamide 66
Nadrukowane znaki
neutral
Number of markers per combination
1 MultiCard = Terminal marker
Type d'impression
neutral
Zakres temperatury stosowania
-40...100 °C
Üzemi hőmérsékleti tartomány, max.
100 °C
Количество маркировочных элементов в упаковочной единице

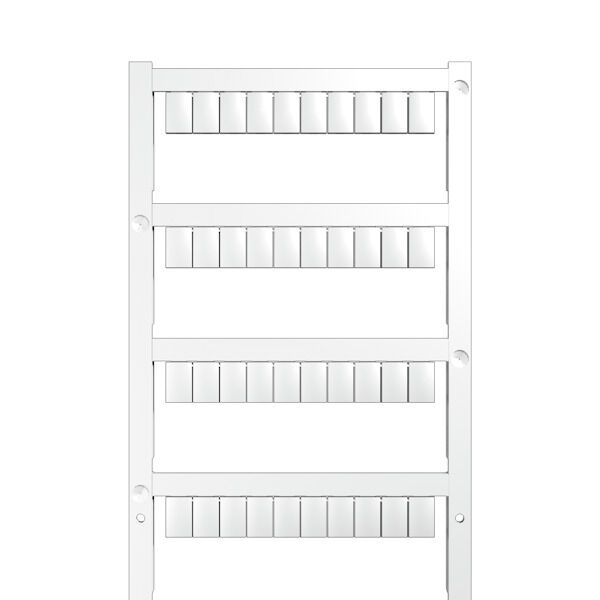

  • Form of supply:
    MultiCard
컬러 코드
white
할로겐
No

Connector markers

Pas en mm (P)
6 mm

Classifications

ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
