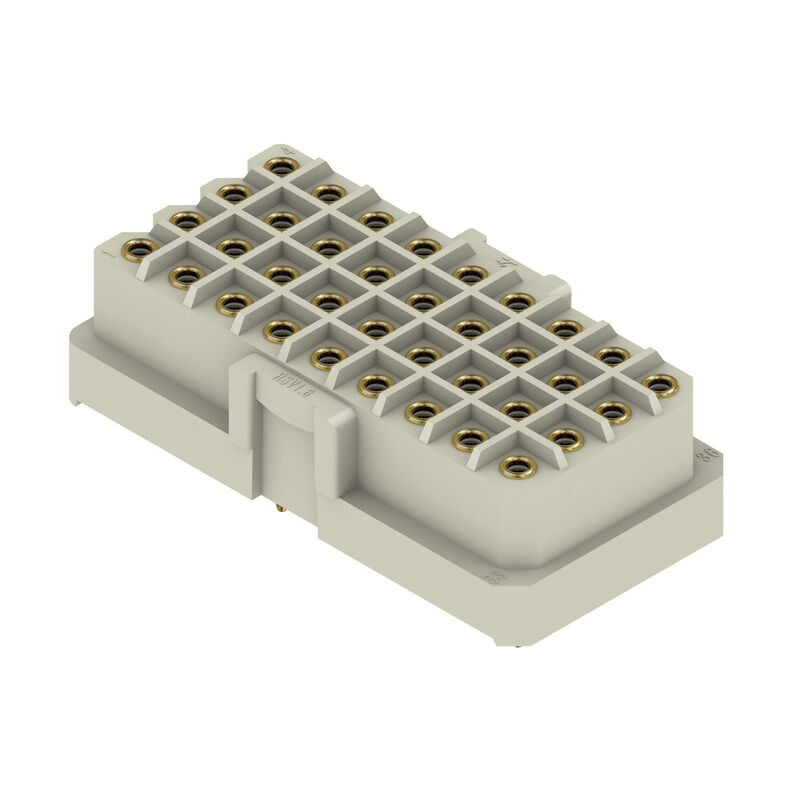

PCB plug-in connector, female header, closed side, THT solder connection, 5.00 mm, Number of poles: 36, 180°, Solder pin length (l): 3.2 mm, Au (Gold), Pebble grey, Box

Produkt ID 1446200000
Download datablad Engineering-support Produktdownloads
Tilbehør 1 Anvendte produkter 7
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° certificato (UR)
E92202

General ordering data

Versione
PCB plug-in connector, female header, closed side, THT solder connection, 5.00 mm, Number of poles: 36, 180°, Solder pin length (l): 3.2 mm, Au (Gold), Pebble grey, Box
N. d’ordine
1446200000
Tipo
RSV1,6 LB36 GR 3,2 AU
GTIN (EAN)
4008190013639
CPZ
10 Styk
Product data
IEC: 500 V / 14 A
UL: 300 V / 10 A
Packaging
Box

Dimensions and weights

Profondità
47,6 mm
Głębokość (cale)
1,874 inch
Posizione verticale
14,3 mm
Height (inches)
0,563 inch
Height of lowest version
14,3 mm
Larghezza
28,8 mm
Width (inches)
1,134 inch
Net weight
22,792 g

Environmental Product Compliance

Stato conformità RoHS
Compliant with exemption
Esenzione RoHS (se applicabile/nota)
6c
REACH SVHC
Lead 7439-92-1
SCIP
68d3d3f5-e017-411e-997f-7ad2b75c9062

System specifications

Product family
OMNIMATE Signal - series RSV
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
5 mm
Delning i tum (P)
0,197 "
Anslutningsvinkel
180°
Počet pólů
36
Number of solder pins per pole
1
Lötstiftlänge (l)
3,2 mm
Solder pin dimensions
d = 0.97 mm
Solder eyelet hole diameter (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
40 mm
L1 in inches
1,575 "
Number of rows
4
Pin series quantity
9
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch
Touch-safe protection acc. to DIN VDE 0470
IP 20
Can be coded
Yes
Plugging cycles
≥ 200
Plugging force/pole, max.
5,5 N
Pulling force/pole, max.
5,5 N

Material data

Materiale isolante
PA 66/6
Colori
Pebble grey
Tabella dei colori (simile)
RAL 7032
Gruppo materiali isolanti
I
Porównywalny wskaźnik śledzenia (CTI)
≥ 600
UL 94 flammability rating
V-0
Materiale dei contatti
Copper alloy
Superficie dei contatti
Au (Gold)
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Corrente di dimensionamento, numero minimo di poli (Tu=20 °C)
14 A
Corrente di dimensionamento, numero massimo di poli (Tu=20 °C)
10 A
Corrente di dimensionamento, numero minimo di poli (Tu=40 °C)
12 A
Corrente di dimensionamento, numero massimo di poli (Tu = 40°C)
8,5 A
Rated voltage for surge voltage class / pollution degree II/2
500 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
2,5 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
2,5 kV
Sovratensione nominale con classe di sovratensione/grado di lordura III/3
4 kV
Portata transitoria
3 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
53975-13
Rated voltage (Use group C / CSA)
300 V
Rated current (Use group C / CSA)
13 A
Riferimento ai valori di omologazione
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E92202
Rated voltage (Use group C / UL 1059)
300 V
Rated current (Use group C / UL 1059)
10 A
Riferimento ai valori di omologazione
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
167 mm
VPE width
69 mm
VPE height
44 mm

Important note

Conformità IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Note
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Spacing between rows: see hole layout
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
