SAIL-M12GM12W-4-5.0V
SAIL-M12GM12W-4-5.0V
Dimensioned drawing
Male, straight
SAIL-M12GM12W-4-5.0V
Dimensioned drawing
Angled socket
SAIL-M12GM12W-4-5.0V
Pole scheme
Pin
SAIL-M12GM12W-4-5.0V
Pole scheme
Socket
SAIL-M12GM12W-4-5.0V
Wiring diagram

SAIL-M12GM12W-4-5.0V

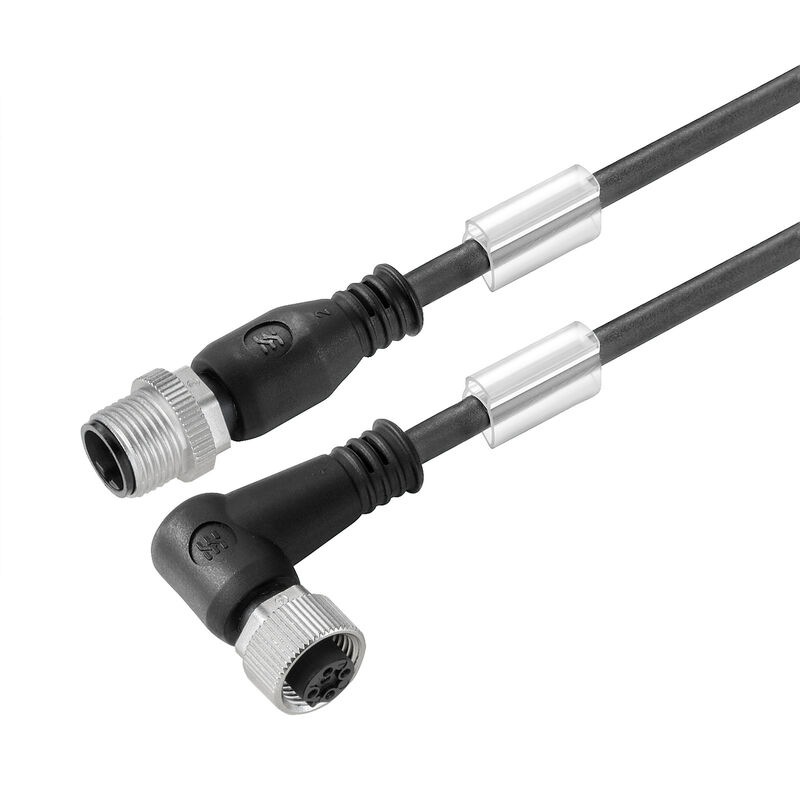

Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 5 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes

Produkt ID 1925350500
Download datablad Produktdownloads Engineering-support
Tilbehør 7 Anvendte produkter 8
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Utförande
Sensor/actuator line, Connecting line, M12 / M12, Number of poles : 4, 5 m, pin, straight - socket, 90°, Shielded: No, LED: No, Sheath material: PVC, Halogen: Yes
Order No.
1925350500
Type
SAIL-M12GM12W-4-5.0V
GTIN (EAN)
4032248567805
Qty.
1 Styk

Dimensions and weights

Net weight
231,968 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Antal poler
4
Bestrålning tvärbunden
No
Beständighet mot svetsgnistor
No
Colore della guaina
black
Configurable cable length
Yes
Core cross-section
0,34 mm²
Färkodning
brown
white
blue
black
Halogen
Yes
Insulation
PVC
Longueur du câble
5 m
Outer cladding in accordance with UL AWM style
2464 (80 °C / 300 V)
Sheath material
PVC
Shielded
No
Säker mot svetsstänk
No
Temperaturområde, fast lagd
-30...80 °C
Temperaturområde, rörligt
-5...80 °C
Vridtålighet
0 °/m
Ytterdiameter
5.3 mm ± 0.2 mm
케이블 캐리어에 적합
No

General technical data

Coding
A-coded
Connection thread
M12 / M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
250 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
IP68
when fully mounted
IP65
IP66
Shock and vibration proof according to
Section B
Temperature range of housing
-25…+85 °C
Threaded ring material
Diecast zinc
Tightening torque
M12: 0.8 - 1.2 Nm
Version
pin, straight - socket, 90°

Electrical properties

Isolationsmotstånd
108 Ω
Nominell spänning
250 V

General standards

Conector norma
IEC 61076-2-101
Nº de certificat (cULus)
E307231

Standards

Connector standard
IEC 61076-2-101
Shock and vibration proof according to
Section B

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M12, A-coded, IP69, female contact, angled 90°, Plastic, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
