WPD 231 2X95/2X95 BN
Product image
WPD 231 2X95/2X95 BN
WPD 231 2X95/2X95 BN
WPD 231 2X95/2X95 BN
WPD 231 2X95/2X95 BN
WPD 231 2X95/2X95 BN

WPD 231 2X95/2X95 BN

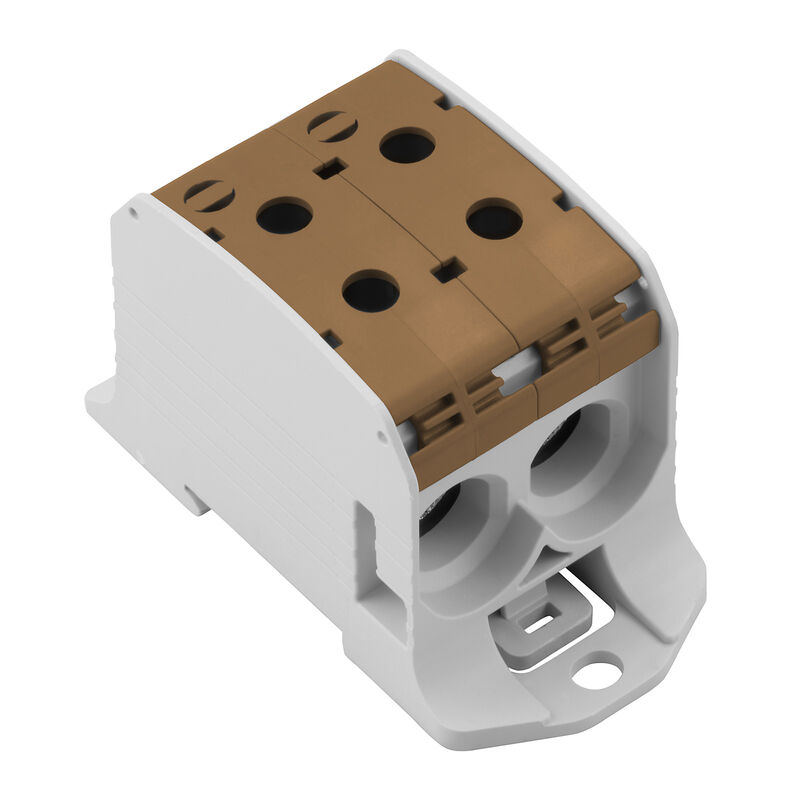

Potential distributor terminal, Screw connection, brown, 95 mm², 232 A, 1000 V, Number of connections: 4, Number of levels: 1

Item No. 2502730000
Download data sheet Engineering Support Product Downloads
Accessories 6 Related products 15
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Rating data UL rating data Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319236/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319263/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Potential distributor terminal, Screw connection, brown, 95 mm², 232 A, 1000 V, Number of connections: 4, Number of levels: 1
Order No.
2502730000
Type
WPD 231 2X95/2X95 BN
GTIN (EAN)
4050118516555
Qty.
1  items

Dimensions and weights

Depth
57  mm
Depth (inches)
2.244  inch
Height
93  mm
Height (inches)
3.661  inch
Width
47  mm
Width (inches)
1.85  inch
Net weight
178  g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50  °C
Continuous operating temp., max.
120  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Material
Wemid
Colour
brown
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
CNEX18ATEX0016U
Certificate No. (IECEX)
IECEXNEX18.0010U
Max. voltage (ATEX)
880 V
Current (ATEX)
232 A
Wire cross section max. (ATEX)
95 mm²
Max. voltage (IECEX)
880 V
Current (IECEX)
232 A

System specifications

Version
Screw connection
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Levels cross-connected internally
No
PE connection
No
Rail
TS 35
PE function
No

Additional technical data

Explosion-tested version
Yes
Installation advice
Terminal rail / mounting plate
Type of mounting
Snap-on

Conductors for clamping (additional connection)

Connection type, additional connection
Screw connection

Conductors for clamping (rated connection)

Clamping range, max.
95  mm²
Clamping range, min.
10  mm²
Connection cross-section, stranded, max.
95  mm²
Connection direction
on side
Number of connections
4
Type of connection
Screw connection
Type of connection 2
Screw connection
Wire connection cross section AWG, max.
AWG 3/0
Wire connection cross section AWG, min.
AWG 16
Wire connection cross section, finely stranded, max.
0  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
70  mm²
Wire connection cross-section, solid core, max.
95  mm²

General

Installation advice
Terminal rail / mounting plate
Number of poles
1
Rail
TS 35
Standards
IEC 60947-7-1
UL 1059
CSA
Wire connection cross section AWG, max.
AWG 3/0
Wire connection cross section AWG, min.
AWG 16

Rating data

Rated cross-section
95  mm²
Rated voltage
1,000  V
Rated AC voltage
1,000  V
Rated DC voltage
1,000  V
Rated current
232  A
Current at maximum wires
232  A
Standards
IEC 60947-7-1
UL 1059
CSA
Volume resistance according to IEC 60947-7-x
0.14  mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
7.42  W
Short-time withstand current resistance
8/20µs with 50 kA
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693

Important note

Product information
You will find additional information in the downloadsection of the onlinecatalogue

Classifications

ETIM 6.0
EC000897
ETIM 7.0
EC000897
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 9.0
27-14-11-20
ECLASS 9.1
27-14-11-20
ECLASS 10.0
27-14-11-20
ECLASS 11.0
27-14-11-20
ECLASS 12.0
27-14-11-20
ECLASS 13.0
27-25-01-19
ECLASS 14.0
27-25-01-19
ECLASS 15.0
27-25-01-19
