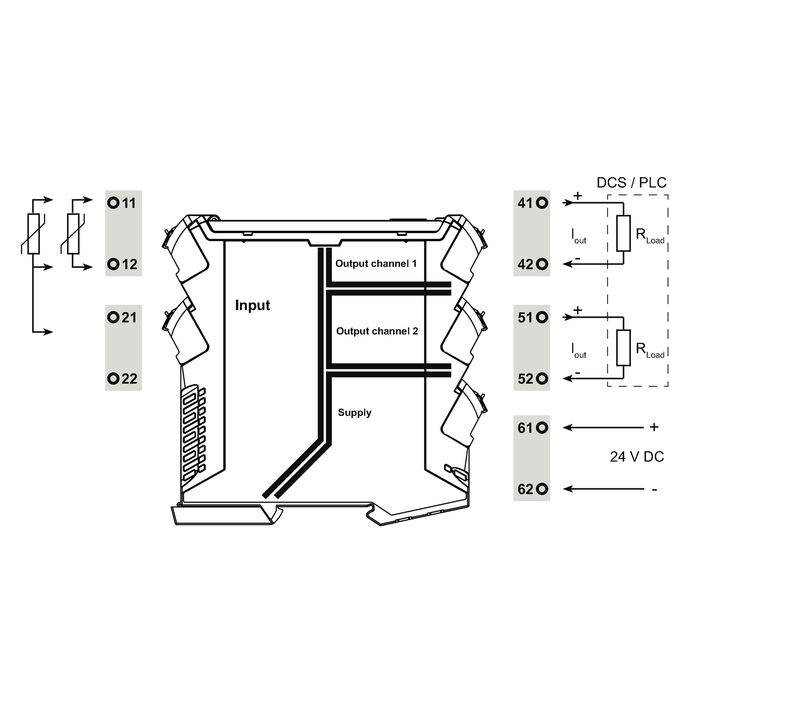

Connection diagram
ACT20P-RTI-2AO-S
Dimensioned drawing
ACT20P-RTI-2AO-S
Similar to illustration
ACT20P-RTI-2AO-S
ACT20P-RTI-2AO-S
ACT20P-RTI-2AO-S
ACT20P-RTI-2AO-S

ACT20P-RTI-2AO-S

Temperature converter, Signal duplicator/isolator, Input : Temperature, PT100, Output : 2 x 0(4) - 20 mA

Ürün No. 7760054236
Veri sayfasını indir Engineering Support Software Support Product Downloads
Aksesuarlar 3 Münferit parçalar 1 İlgili ürünler 18
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Input Output General data Insulation coordination Connection data Classifications

Approvals

Jóváhagyások
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Változat
Temperature converter, Signal duplicator/isolator, Input : Temperature, PT100, Output : 2 x 0(4) - 20 mA
Rendelési szám
7760054236
Type
ACT20P-RTI-2AO-S
GTIN (EAN)
6944169696442
Qty.
1 adet

Dimensions and weights

Mélység
114 mm
Depth (inches)
4,488 inch
Высота
117 mm
Height (inches)
4,606 inch
Larghezza
12,5 mm
Width (inches)
0,492 inch
Net weight
115 g

Temperatures

Temperatura di magazzinaggio
-40 °C...85 °C
Operating temperature
-20 °C...60 °C
Humidity
5...95 %, no condensation

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
2f6dd957-421a-46db-a0c2-cf1609156924

Input

Line resistance in measuring circuit
≤ 50 Ω
Number inputs
1
Sensor
2-/3-wire
PT100
Cu50
Cu100
Temperature input range
Configurable
PT100: -200…+850 °C
min. measurement range 10°C (RTD)

Output

Load impedance current
per channel
≤ 300 Ω
Number of outputs
2
Output current
Adjustable
2 x 0 (4)...20 mA
Type
active
connected control must be passive
Wire break detection
Yes
Output value: 22 mA

General data

Accuracy
0.2 °C ⁄ 0.1% of end value
Configuration
With free software ACT20P TOOL PACK
Requires configuration adapter 8978580000 CBX200 USB
+ 2907490000 ADAPTER CBX200 - MINI USB
Current consumption
<65 mA @ IOUT = 20 mA
Mounting rail
TS 35
Operating altitude
≤ 2000 m
Power consumption
ca. 1.5 W
Protection degree
IP20
Step response time
≤1s
Supply voltage
24 V DC ± 20 %
Temperature coefficient
≤ 100 ppm/K

Insulation coordination

EMC standards
EN 61326-1
Galvanic isolation
between input ⁄ output ⁄ supply
Impulse withstand voltage
4 kV (1.2/50 µs)
Insulation voltage
2 kV inputs / outputs / power supply
Pollution severity
2
Rated voltage
300 V
Surge voltage category
III
Test voltage
0,3 kV

Connection data

Type de raccordement
Screw connection
Tightening torque, max.
0,6 Nm
Clamping range, rated connection
2,5 mm²
Clamping range, min.
0,5 mm²
2,5 mm²
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section AWG, max.
AWG 14

Classifications

ETIM 8.0
EC002919
ETIM 9.0
EC002919
ETIM 10.0
EC002919
ECLASS 14.0
27-21-01-29
ECLASS 15.0
27-21-01-29
