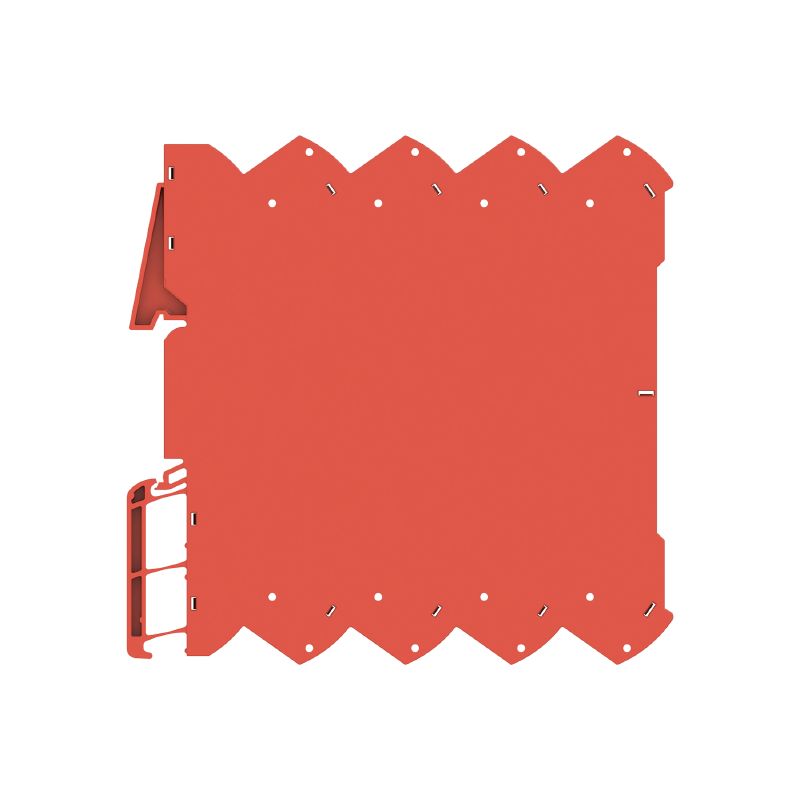

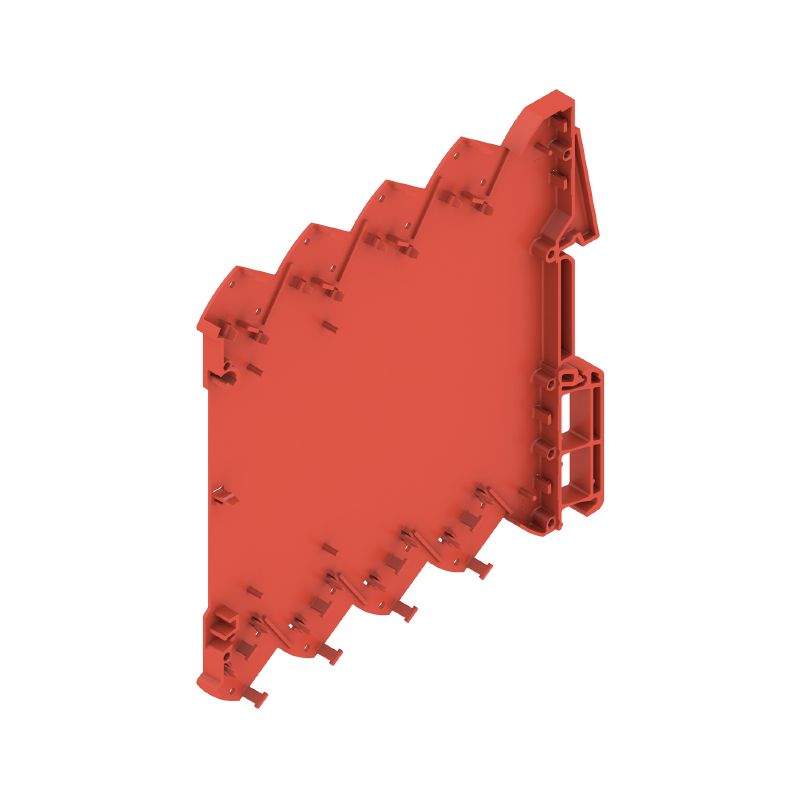

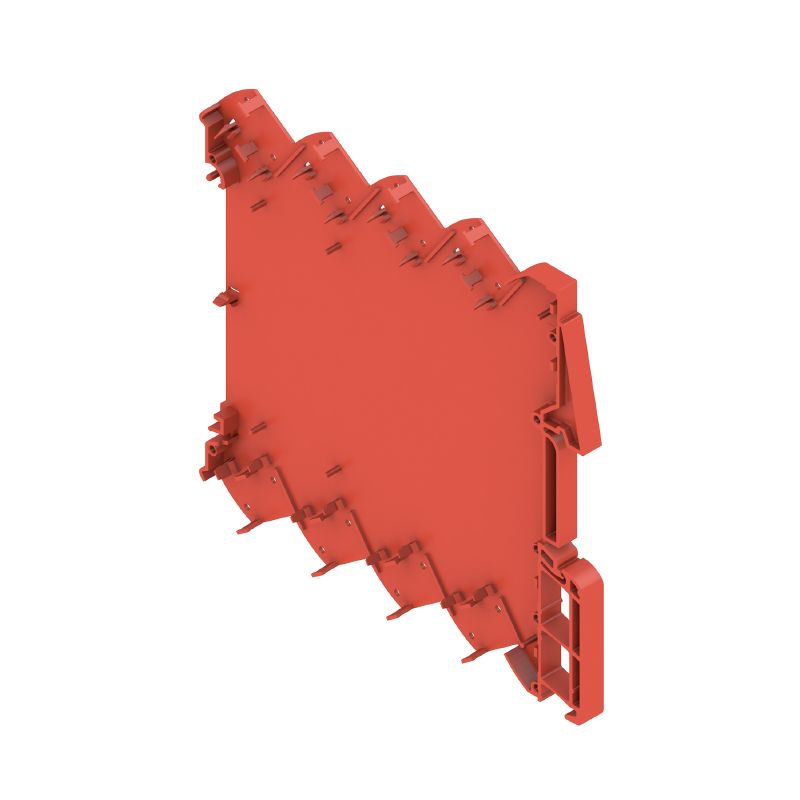

CH20M6 BP 4P-4P RD LF 1 1261515

Modular housing, OMNIMATE Housing - series CH20M red, Housing base, Width: 6.1 mm

Ürün No. 2771490000

Özellikler

General ordering data

Version	Modular housing, OMNIMATE Housing - series CH20M red, Housing base, Width: 6.1 mm
Order No.	2771490000
Type	CH20M6 BP 4P-4P RD LF 1 1261515
GTIN (EAN)	4064675032229
Qty.	50 adet

Dimensions and weights

Depth	114,3 mm
Depth (inches)	4,5 inch
Height	110,7 mm
Height (inches)	4,358 inch
Width	6,1 mm
Width (inches)	0,24 inch
Net weight	18,2 g

Environmental Product Compliance

RoHS Compliance Status	Compliant without exemption
REACH SVHC	No SVHC above 0.1 wt%

Material data

Comparative Tracking Index (CTI)	400 ≤ CTI <600
Insulating material	PBT
Insulating material group	II
Material	Plastic
Surface finish	untreated
UL 94 flammability rating	V-0

General data

Colour	red
Colour chart (similar)	RAL 3020
Encapsulation option	No
Protection degree	IP20 in installed state
Rail	TS 35

Assembly properties

Number of PCBs, max.	1
Number of connection levels, max.	8
Number of poles, max.	8
Height of components on the PCB, max.	3,5 mm
Type of assembly of the PCB	one-sided

Mechanical tests

According to Standard	DIN EN 61373:1999 (shock and vibration)
Test conditions	50g additional weight on the PCB five housings installed in a row with endbrackets WEW 35/1 (1059000000)
Proved axles	X Y Z
Shock test	General test advices: All mechanical tests were tested on examplary setup, or in view of depending regulation. The specified results do not replace approval relevant tests. They are just orientation values. Test category: 2 Number of shocks per axle: 3 in positive and negative direction Shock duration: 18 ms Acceleration horizontal: 300 m/s² Acceleration vertical: 300 m/s² Acceleration longitudinal: 300 m/s²
Vibration test	Test duration: 5 hours per axle Effective acceleration: 42,5 m/s²

Component properties

Number of connection levels, max.

Design - IN requirements

PCB thickness	0,8 mm
Tolerance for the PCB shape	±0.1 mm
Tolerance of circuit board thickness	±0.1 mm

Individualization options

Alternitive colours	More on request
Customer specific cutouts possible	Yes
Customer specific labelling possible	Yes
Customer specific order process	See guideline under downloads

Downloads

Engineering Data	[CAD data -- PCB Reference Layout](https://mdcop.weidmueller.com/mediadelivery/asset/900_73555) [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_224334)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2771490000)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 7.0	EC001031
ETIM 8.0	EC001031
ETIM 9.0	EC001031
ECLASS 11.0	27-18-27-92
ECLASS 12.0	27-18-27-92
ECLASS 13.0	27-19-06-01
ECLASS 14.0	27-19-06-01
