G-3L-106/10 C
Obrázek výrobku
G-3L-106/10 C

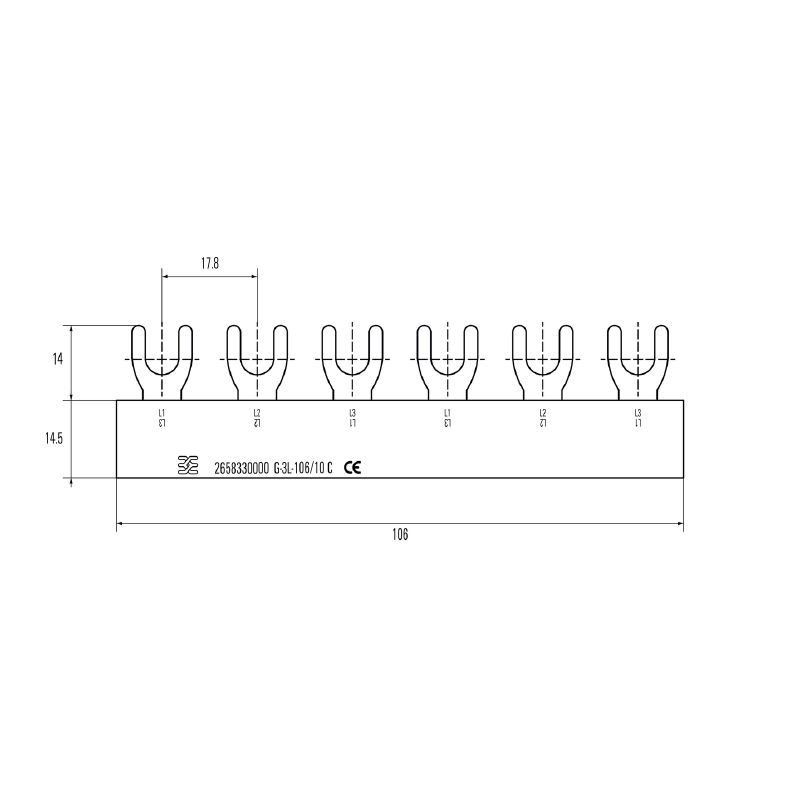

Výkres
G-3L-106/10 C

G-3L-106/10 C

Bu ürün artık mevcut değil.

Phase busbar (Terminals), 63, Number of poles: 6, Insulated: Yes, 10

Ürün No. 2658330000
Veri sayfasını indir Engineering Support Product Downloads
Approvals General ordering data Mått och vikter Temperatures Environmental Product Compliance Material data Additional technical data Dimensions Общие сведения Rating data Classifications

Approvals

Schválení
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Phase busbar (Terminals), 63, Number of poles: 6, Insulated: Yes, 10
Order No.
2658330000
Typ
G-3L-106/10 C
GTIN (EAN)
4050118672190
Qty.
20 adet
Delivery status
This article will no longer be available in the future.
Available until
01.06.2025

Mått och vikter

Hloubka
15,4 mm
Depth (inches)
0,606 inch
Výška
31 mm
Height (inches)
1,22 inch
Šířka
108 mm
Width (inches)
4,252 inch
Net weight
35 g

Temperatures

Okolní teplota
-5 °C…40 °C

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Colour
grey

Additional technical data

Explosion-tested version
Нет

Dimensions

Pitch in mm (P)
17,8 mm

Общие сведения

Número de polos
6

Rating data

Jmenovitý průřez
10 mm²
Jmenovité napětí
400 V
Nominal current
63 A

Classifications

ETIM 8.0
EC000215
ETIM 9.0
EC000215
ETIM 10.0
EC000215
ECLASS 14.0
27-37-13-06
ECLASS 15.0
27-37-13-06
