IE-BSS-VAPM-24V
IE-BSS-VAPM-24V

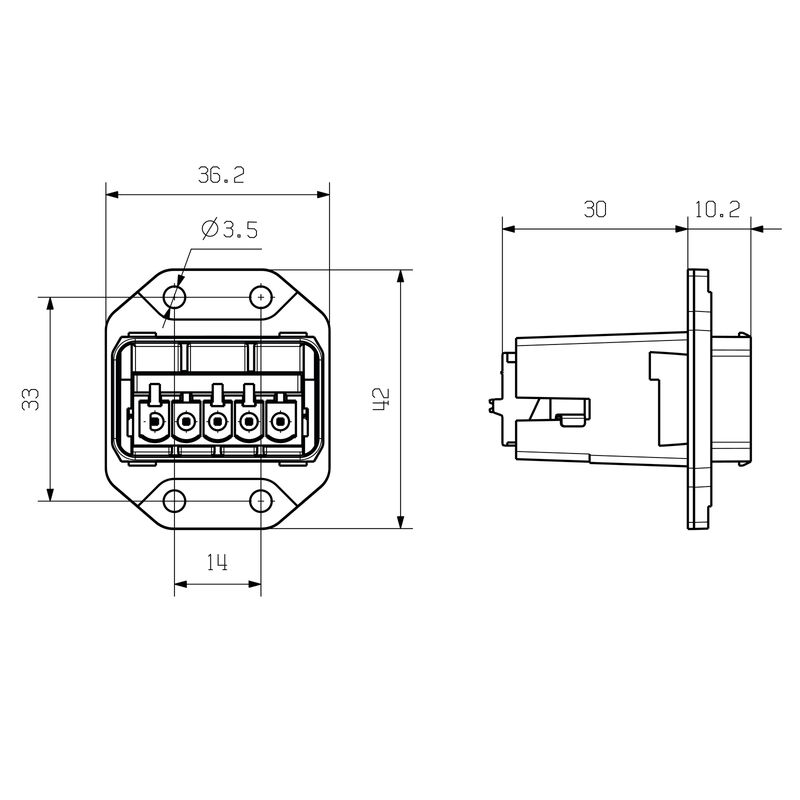

Dimensioned drawing
IE-BSS-VAPM-24V
Drawing
When using wire-end-ferrules, we recommend the length of 10 mm.

IE-BSS-VAPM-24V

Power connector, Flange, PROFINET, Set of flanges

Item No. 2493480000
Download data sheet Engineering-support Produktdownloads
Tilbehør 1 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Electrical properties General standards Standards Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certifikat nr. (UR)
E92202

General ordering data

Utförande

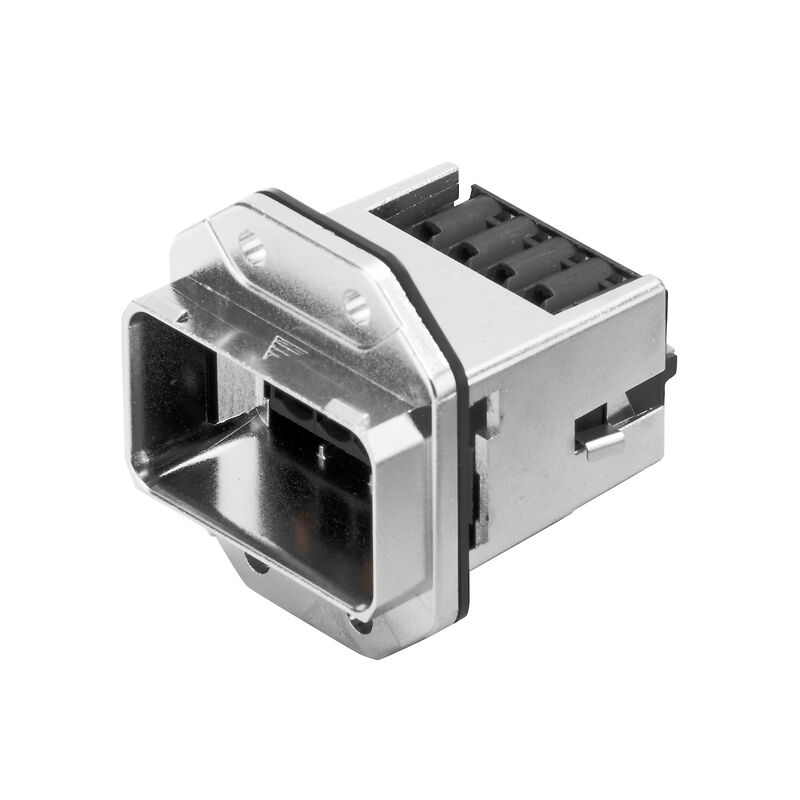

Power connector, Flange, PROFINET, Set of flanges
Order No.
2493480000
Typ
IE-BSS-VAPM-24V
GTIN (EAN)
4050118522143
Förp.
1 Styk

Dimensions and weights

Bredd
46 mm
Width (inches)
1.811 inch
Längd
66 mm
Length (inches)
2.598 inch
Net weight
54 g

Temperatures

Drifttemperatur
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Connection 1
PushPull Power
Connection 2
Tension clamp
Contact material
Copper alloy
Housing main material
Zinc diecast
nickel-plated
Plugging cycles
≥ 100
Pollution severity
2
Protection degree
IP67
Sealing material
NBR
Type of mounting
4 screws
UL 94 가연성 등급
V-2
Wire connection cross section, finely stranded, max.
2.5 mm²
Wire connection cross section, finely stranded, min.
0.75 mm²
Тип фиксации
Push Pull
극 수
5
접점 표면
Gold over nickel
차폐
unshielded
컬러 코드
Silver grey

Electrical properties

50 °C에서 전류 전달 용량
16 A
작동 전압
24 V

General standards

인증 번호(UR)
E92202
커넥터 표준
in accordance with PROFINET specification
IEC 61076-3-126

Standards

커넥터 표준
in accordance with PROFINET specification
IEC 61076-3-126

Classifications

ETIM 8.0
EC001121
ETIM 9.0
EC001121
ETIM 10.0
EC001121
ECLASS 14.0
27-44-03-90
ECLASS 15.0
27-44-03-90
