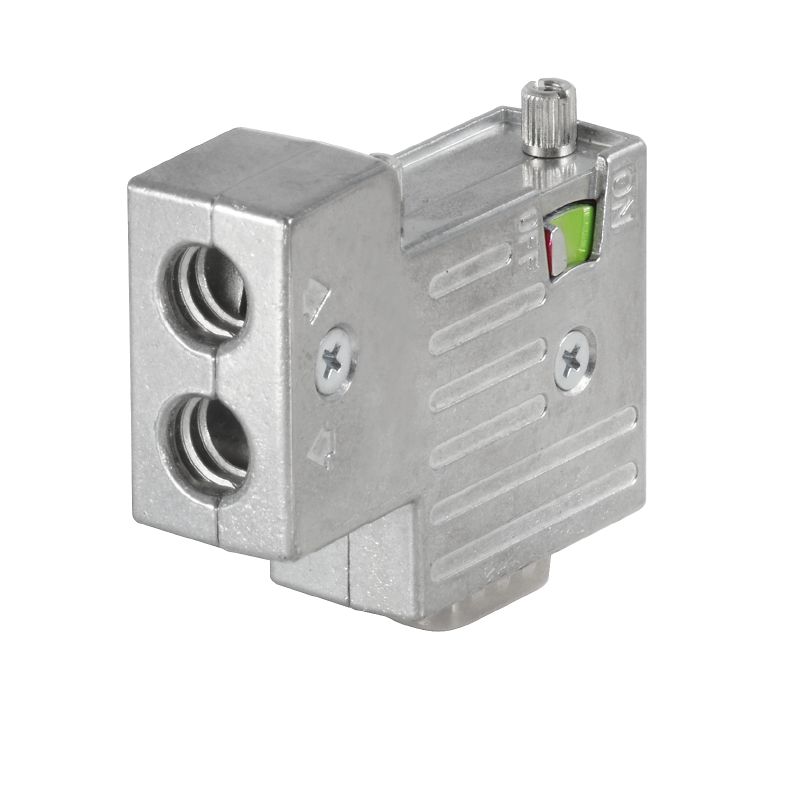

PB-DP SUB-D ZF TERM S7
PB-DP SUB-D ZF TERM S7
Similar to illustration
PB-DP SUB-D ZF TERM S7
Wiring diagram

PB-DP SUB-D ZF TERM S7

SUB-D

Produkt ID 2004310000
Download datablad Product Downloads
Anvendte produkter 14
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Technical specifications for sub-D connector Classifications

Approvals

ROHS
Conform

General ordering data

Wersja
SUB-D
Order No.
2004310000
Тип
PB-DP SUB-D ZF TERM S7
GTIN (EAN)
4050118389005
Qty.
1 Styk

Dimensions and weights

Depth
16,8 mm
Depth (inches)
0,661 inch
Höjd
77,7 mm
Height (inches)
3,059 inch
Szerokość
34,7 mm
Width (inches)
1,366 inch
Net weight
70 g

Temperatures

Humidity
Max. 75% at +25°C, non-condensing

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6aI
REACH SVHC
Lead 7439-92-1
SCIP
3cc1d9b1-0f2a-47ed-a501-ddcfcfaaf625

Technical specifications for sub-D connector

BUS interface
D-Sub 9-pole
Pin
BUS, 케이블 인터페이스
Tension clamp connection
Conector y asignación de pines
In accordance with the PROFIBUS specification
Data rate
12 MBit/s
Housing main material
ZnAl
Humidity
Max. 75% at +25°C, non-condensing
Ház hőmérsékleti tartománya
-20...+70 ° C
Interfaccia di programmazione
No
Interlock
UNC4-40
Outgoing elbow
90°
Plugging cycles
≥ 200
Protection degree
IP30
Terminating resistor available
Yes
Tightening torque
0,3 Nm

Classifications

ETIM 8.0
EC001132
ETIM 9.0
EC001132
ETIM 10.0
EC001132
ECLASS 14.0
27-44-03-02
ECLASS 15.0
27-44-03-22
