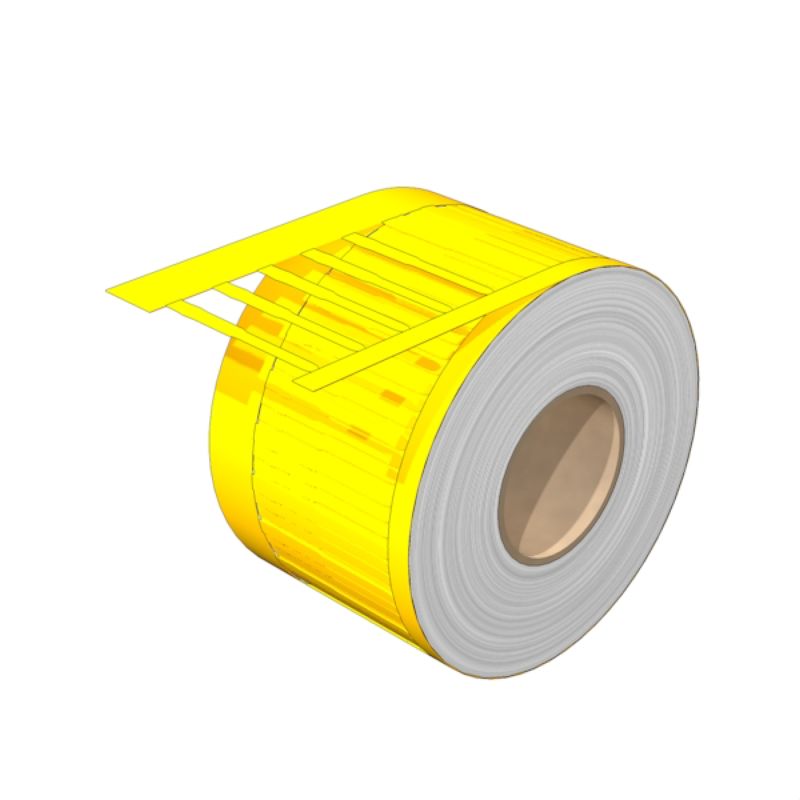

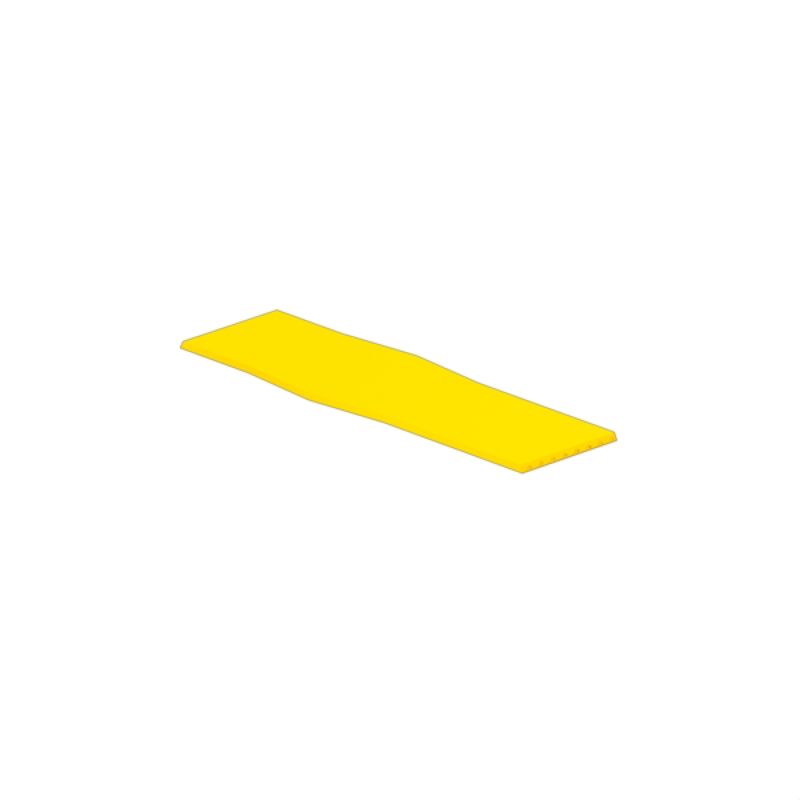

TM-I, Insert markers, 1.3 - 35 mm, 15 x 4 mm, yellow

Ürün No. 2005580000
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 3 aksesuarıdır 6 İlgili ürünler 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
TM-I, Insert markers, 1.3 - 35 mm, 15 x 4 mm, yellow
Order No.
2005580000
Type
TM-I 15 MM GE
GTIN (EAN)
4050118390353
Qty.
2.000 adet

Dimensions and weights

Height
15 mm
Height (inches)
0,591 inch
Width
4 mm
Width (inches)
0,157 inch
Net weight
0,165 g

Temperatures

Operating temperature range
-40...150 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Färgkod
yellow
Grundläggande material
Polyester
Halogener
No
Number per roll
2000
Operating temperature range
-40...150 °C
Operating temperature range, max.
150 °C
Orientamento della stampa
horizontal and vertical
Skrivna tecken
without
UL 94 flammability rating
HB
zakres temperatur roboczych, min.
-40 °C
너비
4 mm
인쇄 유형
neutral

Conductor and cable markers

Conductor cross-section, max.
70 mm²
Conductor O.D.
1.3 - 35 mm
Conductor O.D., max.
35 mm
Conductor O.D., min.
1,3 mm
Cross-section for connected wire
70 mm²
Halogen
No

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
