ZDUB 2.5-2/2AN/15 BL
Illustrazione del prodotto
ZDUB 2.5-2/2AN/15 BL

ZDUB 2.5-2/2AN/15 BL

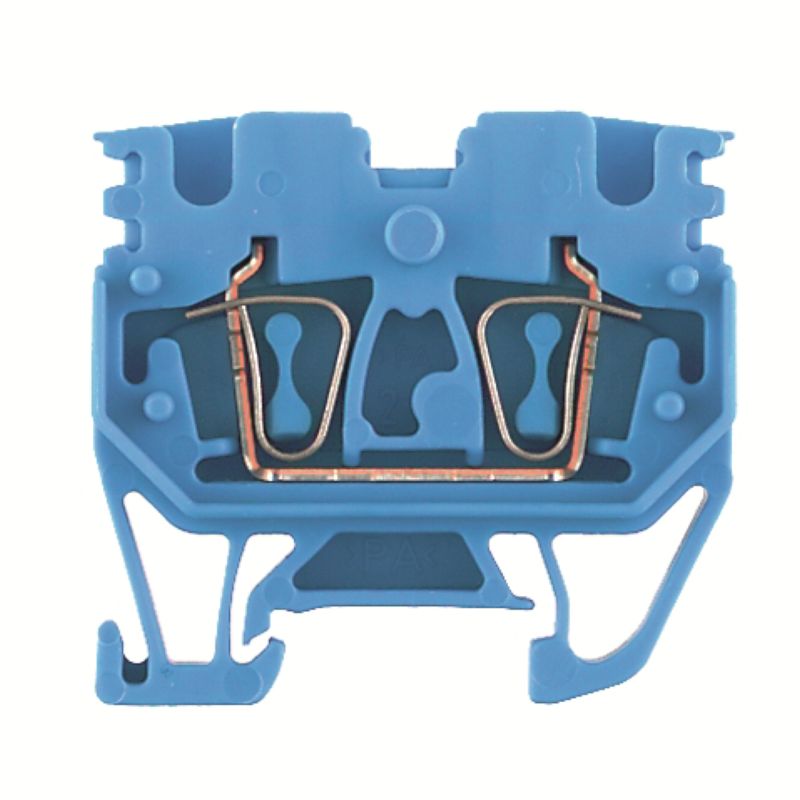

Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, blue

Product ID 1712760000
Openen in configurator
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 17 Verwante producten 50
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data Dimensions General Rating data UL rating data Product images Classifications

Approvals

Zulassungen
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL 웹사이트](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

General ordering data

Ausfuehrung
Z-series, Feed-through terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, blue
Best.-Nr.
1712760000
Art
ZDUB 2.5-2/2AN/15 BL
GTIN (EAN)
4008190333195
Qty.
100 Штука

Dimensions and weights

Tiefe
31 mm
Depth (inches)
1,22 inch
Depth including DIN rail
32 mm
Höhe
33,5 mm
Höhe (inch)
1,319 inch
Breite
5,1 mm
Width (inches)
0,201 inch
Net weight
4,45 g

Temperatures

Température de stockage
-25 °C...55 °C
Ambient temperature
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Trvalá provozní teplota, max.
120 °C

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
blue
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
DEMKO16ATEX1808U
Certificate No. (IECEX)
IECEXULD16.0036U
Max. voltage (ATEX)
550 V
Current (ATEX)
21 A
Sección máx. del conductor (ATEX)
2.5 mm²
Max. voltage (IECEX)
550 V
Corrente (IECEX)
21 A
Wire cross section max. (IECEX)
2.5 mm²
Обозначение EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

System specifications

Version
Tension-clamp connection
can only be bridged at the clamping point
One end without connector
End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
Нет
Mounting rail
TS 15
N-function
Yes
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
Yes
Open sides
right
Type of mounting
Snap-on

Conductors for clamping (additional connection)

결선 유형, 추가 결선
Tension-clamp connection

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Clamping range, max.
4 mm²
Clamping range, min.
0,13 mm²
Connection cross-section, finely stranded, min.
0,13 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,13 mm²
Connection direction
top
Ledardiameter, AWG, max
AWG 12
Number of connections
2
Stripping length
10 mm
Tolkdorn enligt 60 947-1
A2
Type of connection
Tension-clamp connection
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire connection cross section, finely stranded, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,13 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,13 mm²
Wire connection cross-section, solid core, max.
4 mm²
Wire connection cross-section, solid core, min.
0,13 mm²

CSA rating data

Certificate No. (CSA)
12400-379
Current size C (CSA)
25 A
Voltage size C (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
26 AWG

Dimensions

TS 15 offset
17 mm

General

Szabványok
IEC 60947-7-1
Vezeték csatlakozási keresztmetszet AWG, max.
AWG 12
Vezeték csatlakozási keresztmetszet AWG, min.
AWG 26
장착 레일
TS 15

Rating data

Rated cross-section
2,5 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
24 A
Current at maximum wires
30 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Pollution severity
3

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Current size C (cURus)
20 A
Voltage size C (cURus)
600 V

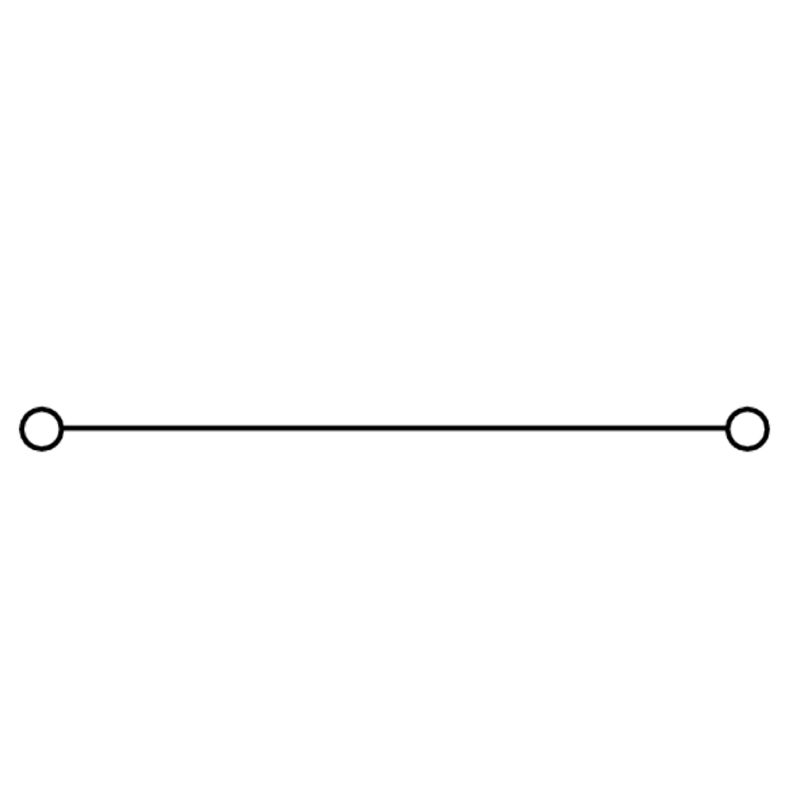

Product images

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
