Eigenschappen

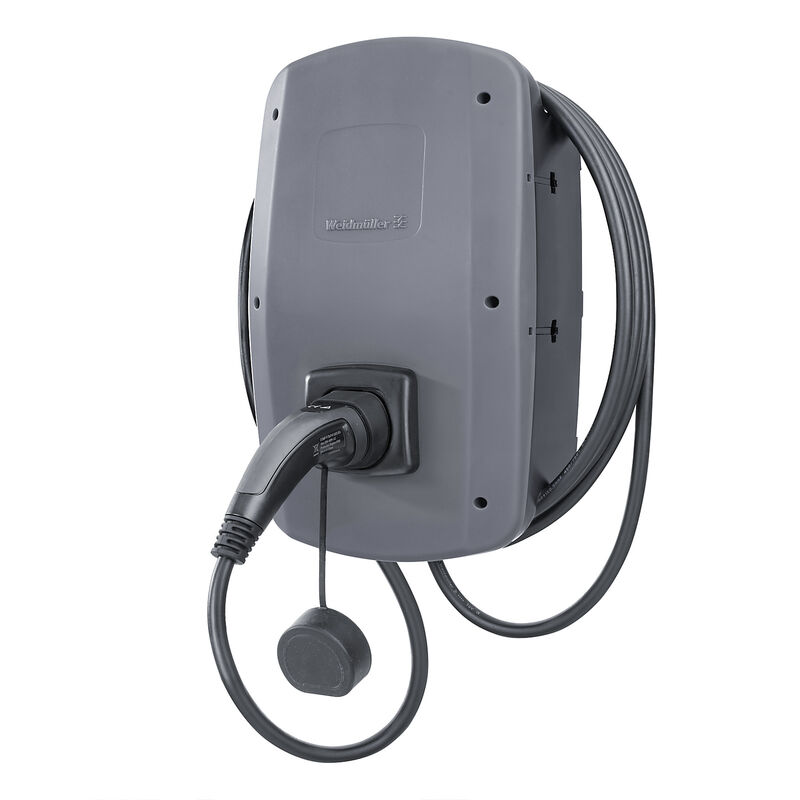

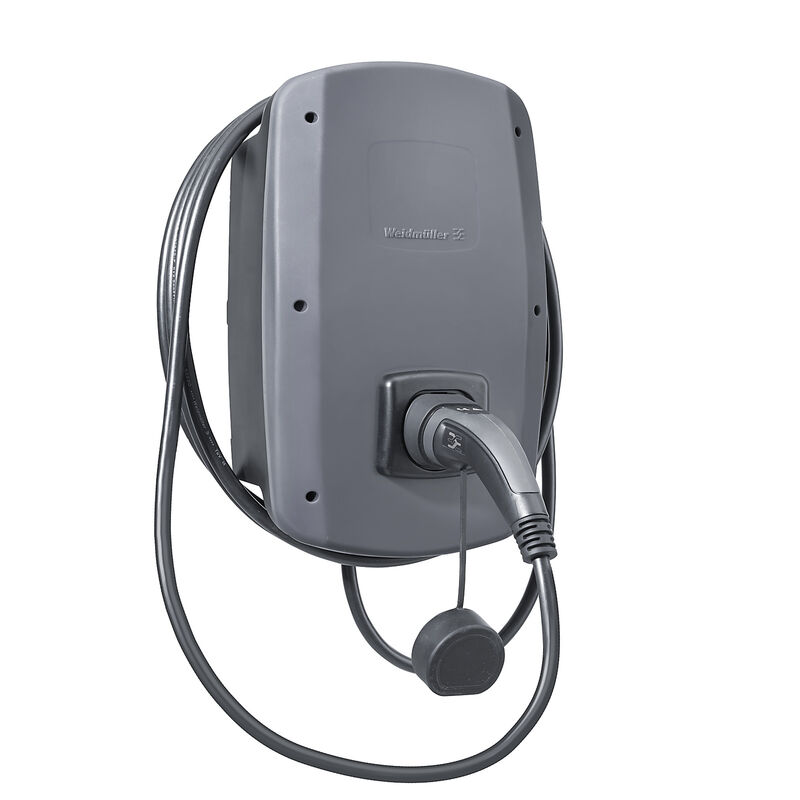

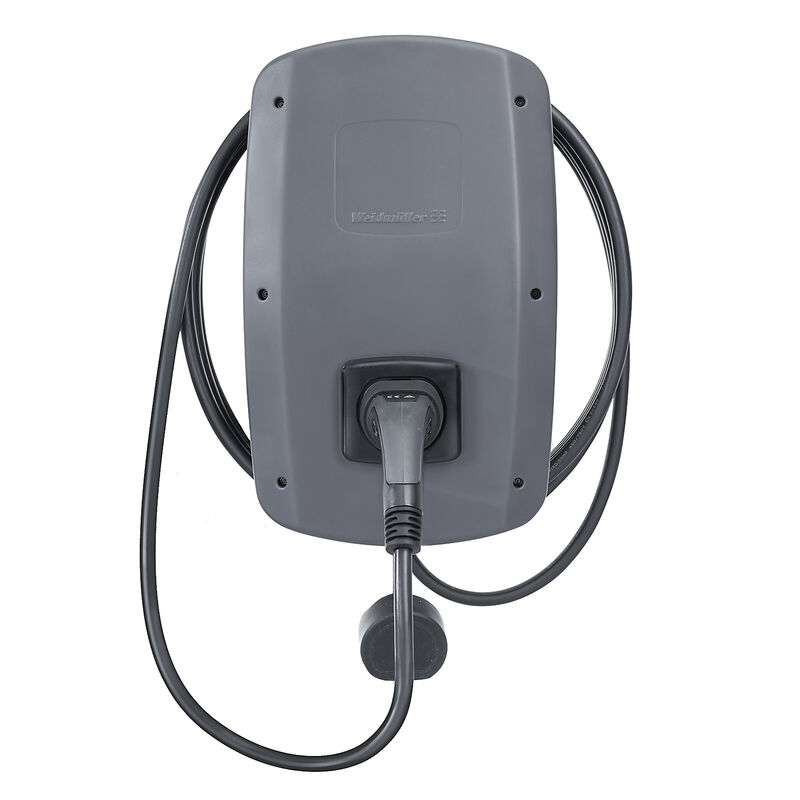

| Version | Wallbox, With attached 7.5 m cable and type 2 plug, Mobile App |
| Order No. | 2911200000 |
| Type | CH-W-S-A11-P7.5-E |
| GTIN (EAN) | 4099986532175 |
| Qty. | 1 items |
| Depth | 150 mm |
| Depth (inches) | 5,905 inch |
| Height | 433 mm |
| Height (inches) | 17,047 inch |
| Width | 268 mm |
| Width (inches) | 10,551 inch |
| Net weight | 5.423 g |
| Storage temperature | -40 °C...70 °C |
| Operating temperature | -30 °C...50 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 7a, 7cI |
| REACH SVHC |
Lead 7439-92-1
Potassium perfluorobutane sulfonate 29420-49-3 |
| SCIP | dde0af7d-c609-4edf-88f1-0eb427589c0f |
| Type of communication to vehicle |
Control Pilot (CP)
Proximity Pilot / Plug Present (PP) |
| Protection degree | IP54 |
| Performance specification |
|
| Connection system | With attached 7.5 m cable and type 2 plug |
| Type of communication to vehicle |
Control Pilot (CP)
Proximity Pilot / Plug Present (PP) |
| Charge mode | Mode 3 |
| Protection class | I |
| Surge voltage category | III |
| Pollution severity | 3 |
| Charging data exportable | No |
| Mobile App available | Yes |
| Protection degree | IP54 |
| PV surplus charging possible | No |
| Supported protocols |
Modbus RTU
Modbus TCP OCPP 1.6 (J) |
| Type of status indicator | RGB LED |
| With communication interface | Yes |
| DC - residual current detection integrated | Yes |
| DC - residual current | 6 mA |
| Type of residual current detection to be provided by the installation | RCD Type A |
| Welding detection | Yes |
| User authentification | Yes |
| User authentification type | Mobile App |
| Failure shutdown | Yes |
| Failure shutdown method | All-pole |
| Energy measurement integrated | No |
| Load management integrated | No |
| Charge status display integrated | Yes |
| Communication integrated | Yes |
| Max. relative humidity during storage | 95 % |
| Operating temperature, max. | 50 °C |
| Operating temperature, min. | -30 °C |
| Storage temperature, max. | 70 °C |
| Storage temperature, min. | -40 °C |
| Wifi frequency | 2,4 GHz |
| Wi-Fi Standard | 802.11 b/g/n |
| Bluetooth module | Bluetooth Low Energy |
| Ethernet ports | 1 |
| Digital inputs | 1 (12 V / 6 mA) |
| Digital outputs | 1 (12 V / 100 mA) |
| Type of protocol of serial interface | RS485 |
| Installation |
Wall mounting
Stand Mounting |
| Included in delivery |
Drilling template
Instruction sheet Mounting screws Assembly dowels |
| Operating altitude | ≤ 3000 m |
| Housing main material | PC |
| Protection degree | IP54 |
| Colour |
black
Anthracite grey |
| Impact resistance | IK10 in accordance with IEC 62262 |
| ROHS | Conform |
| Approvals |
IEC 61851-1
IEC 61851-21-2 EN 62368-1 EN 55011 IEC 62196-1 IEC 62196-2 EN 50620 EN 301 489-1 EN 301 908-1 EN 301 511 EN 300 328 EN 300 330 v.2.1.1 |
| Conductor cross-section, max. | 16 mm² |
| Approval/Certificate/Document of Conformity |
[Warranty Weidmüller e-mobility products](https://mdcop.weidmueller.com/mediadelivery/asset/900_311435)
[Gewährleistung Weidmüller e-mobility Produkte](https://mdcop.weidmueller.com/mediadelivery/asset/900_311436) [Self declaration test certificates AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_311494) [Selbsterklärung Testzertifikate AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_311495) [CE declaration](https://mdcop.weidmueller.com/mediadelivery/asset/900_293678) |
| Engineering Data |
[Installationsvideo AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_269640)
[Installation Video AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_274236) [AC SMART Modbus registers](https://mdcop.weidmueller.com/mediadelivery/asset/900_293656) [Application notes -- Use of an external Modbus TCP/RTU tag list (DE, EN)](https://mdcop.weidmueller.com/mediadelivery/asset/900_301824) |
| Software |
[Firmware -- Current Firmware AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293014)
[Firmware -- Archive Firmware files AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293016) [Firmware -- Release notes Current firmware AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_293638) [Firmware -- Latest Firmware Package AC SMART for Version 01.05.00 or newer (EN, FI, SV)](https://mdcop.weidmueller.com/mediadelivery/asset/900_317464) [Firmware -- Latest Firmware Package AC SMART for Version 01.05.00 or newer (EN, ES)](https://mdcop.weidmueller.com/mediadelivery/asset/900_317465) [Firmware -- Latest Firmware Package for Version 01.05.00 or newer (EN, DE, FR, IT)](https://mdcop.weidmueller.com/mediadelivery/asset/900_317466) [Firmware -- Newest Firmware for Version 01.04.05 or older (EN, FI, SV)](https://mdcop.weidmueller.com/mediadelivery/asset/900_317467) [Firmware -- Newest Firmware for Version 01.04.05 or older (EN, ES)](https://mdcop.weidmueller.com/mediadelivery/asset/900_317474) [Firmware -- Newest Firmware for Version 01.04.05 or older (EN, DE, FR, IT)](https://mdcop.weidmueller.com/mediadelivery/asset/900_317475) |
| Technical Documentation | [Abnahmeprotokoll AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_278407) |
| Tender specification |
[Ausschreibungstexte](https://mdcop.weidmueller.com/mediadelivery/asset/900_293640)
[Tender text](https://mdcop.weidmueller.com/mediadelivery/asset/900_296269) |
| User Documentation |
[Broschüre Wallbox AC SMART, AC Ladekabel, Basiskomponenten](https://mdcop.weidmueller.com/mediadelivery/asset/900_269720)
[Brochure EV charging box AC SMART, AC charging cables, Basic components](https://mdcop.weidmueller.com/mediadelivery/asset/900_269721) [MANUAL_AC SMART (SV)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304027) [MANUAL_AC SMART (CS)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304028) [MANUAL_AC SMART (HU)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304165) [MANUAL_AC SMART (PL)](https://mdcop.weidmueller.com/mediadelivery/asset/900_319944) [MANUAL_AC SMART (TR)](https://mdcop.weidmueller.com/mediadelivery/asset/900_319945) [MANUAL_AC SMART (FI)](https://mdcop.weidmueller.com/mediadelivery/asset/900_322316) [Instructionsheet_AC SMART](https://mdcop.weidmueller.com/mediadelivery/asset/900_281463) [MANUAL_AC SMART (DE)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304020) [MANUAL_AC SMART (EN)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304021) [MANUAL_AC SMART (FR)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304022) [MANUAL_AC SMART (IT)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304023) [MANUAL_AC SMART (ES)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304024) [MANUAL_AC SMART (NL)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304025) [MANUAL_AC SMART (NO)](https://mdcop.weidmueller.com/mediadelivery/asset/900_304026) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002883 |
| ETIM 7.0 | EC002883 |
| ETIM 8.0 | EC002883 |
| ETIM 9.0 | EC002883 |
| ECLASS 9.0 | 27-14-47-01 |
| ECLASS 9.1 | 27-14-47-01 |
| ECLASS 10.0 | 27-14-47-01 |
| ECLASS 11.0 | 27-14-47-01 |
| ECLASS 12.0 | 27-14-47-01 |
| ECLASS 13.0 | 27-14-47-01 |
| ECLASS 14.0 | 27-14-47-01 |
| Approvals |  |
| ROHS | Conform |
