Eigenschappen

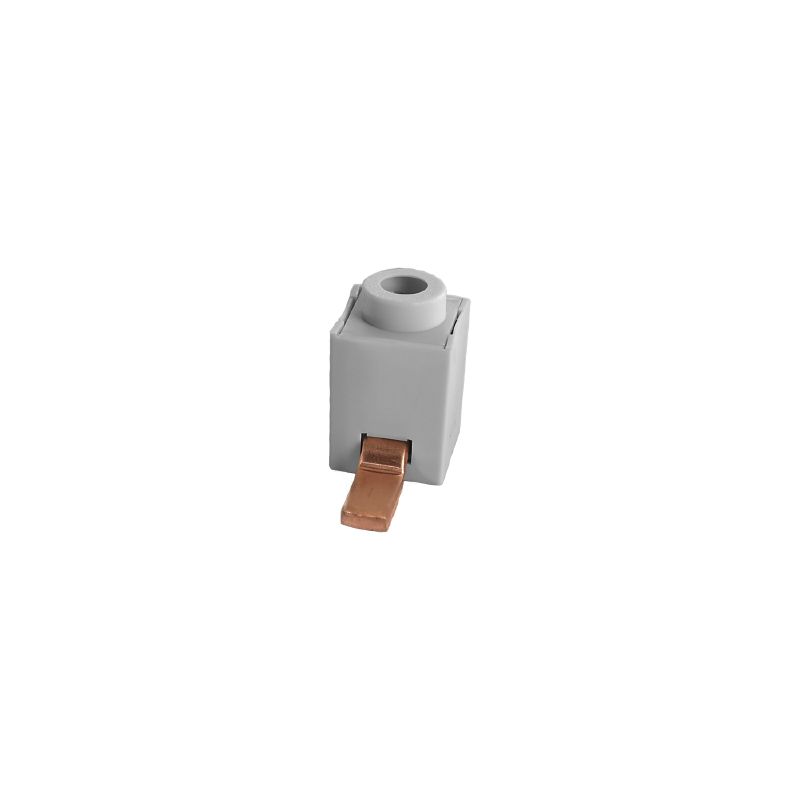

| Version | Auxiliary connection (terminal), 50 mm² |
| Order No. | 2659080000 |
| Type | FIT 50 SN |
| GTIN (EAN) | 4050118671452 |
| Qty. | 3 items |
| Depth | 27 mm |
| Depth (inches) | 1,063 inch |
| Height | 39,7 mm |
| Height (inches) | 1,563 inch |
| Width | 17,8 mm |
| Width (inches) | 0,701 inch |
| Net weight | 28 g |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 08c53393-8863-492c-addc-d040b46da0d3 |
| Colour | grey |
| Number of poles | 1 |
| Rated cross-section | 50 mm² |
| Rated current | 150 A |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002848 |
| ETIM 7.0 | EC002848 |
| ETIM 8.0 | EC002848 |
| ETIM 9.0 | EC002848 |
| ECLASS 9.0 | 27-14-11-92 |
| ECLASS 9.1 | 27-14-11-92 |
| ECLASS 10.0 | 27-14-11-92 |
| ECLASS 11.0 | 27-14-11-92 |
| ECLASS 12.0 | 27-14-11-92 |
| ECLASS 13.0 | 27-25-03-08 |
| ECLASS 14.0 | 27-25-03-08 |
| ROHS | Conform |
