Eigenschappen

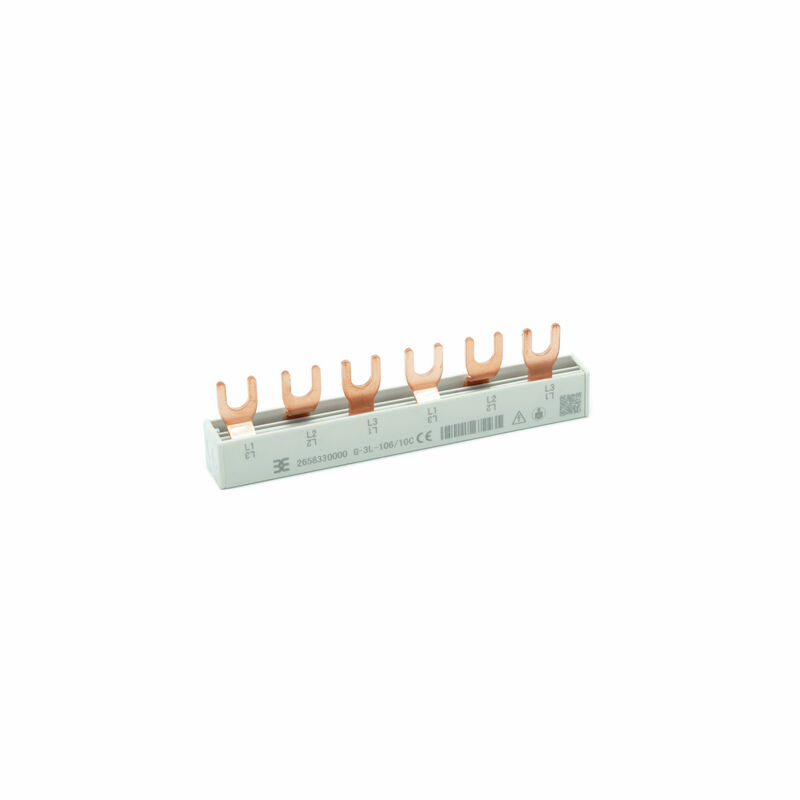

| Version | Phase busbar (Terminals), 63, Number of poles: 6, Insulated: Yes, 10 |
| Order No. | 2658330000 |
| Type | G-3L-106/10 C |
| GTIN (EAN) | 4050118672190 |
| Qty. | 20 items |

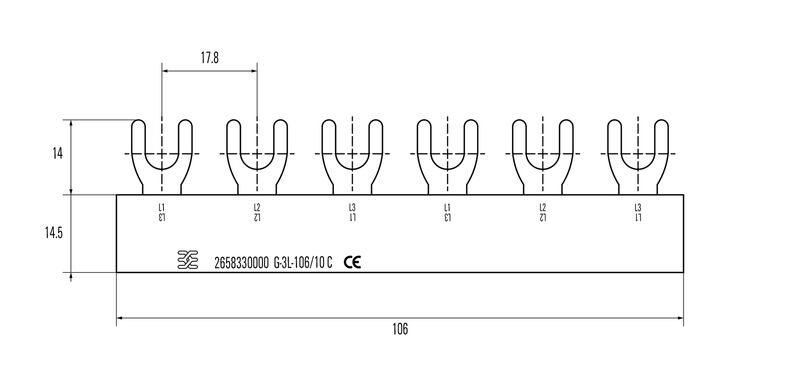

| Depth | 15,4 mm |
| Depth (inches) | 0,606 inch |
| Height | 31 mm |
| Height (inches) | 1,22 inch |
| Width | 108 mm |
| Width (inches) | 4,252 inch |
| Net weight | 35 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | grey |
| Explosion-tested version | No |
| Pitch in mm (P) | 17,8 mm |
| Number of poles | 6 |
| Rated cross-section | 10 mm² |
| Rated voltage | 400 V |
| Rated current | 63 A |
| Approval/Certificate/Document of Conformity | [CE Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_165111) |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_314850) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2658330000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2658330000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=2658330000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 7.0 | EC000215 |
| ETIM 8.0 | EC000215 |
| ETIM 9.0 | EC000215 |
| ECLASS 11.0 | 27-37-13-06 |
| ECLASS 12.0 | 27-37-13-06 |
| ECLASS 13.0 | 27-37-13-06 |
| ECLASS 14.0 | 27-37-13-06 |
| Approvals |  |
| ROHS | Conform |
Toebehoren
-
Product ID:2659000000VPE:10 items
Terminal cover, grey, Height: 20.2 mm, Width: 8.2 mm, Depth: 14.5 mm
-
Product ID:2659040000VPE:10 items
Terminal cover, yellow, Height: 18.3 mm, Width: 8.1 mm, Depth: 18 mm
-
-
-
-
-
