Eigenschappen

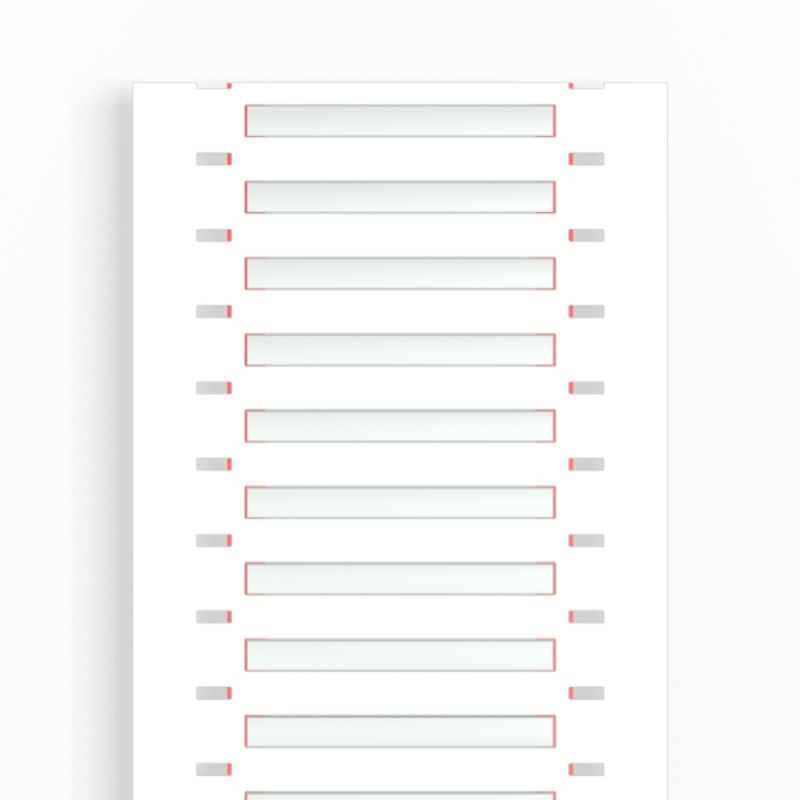

| Version | Conductor and cable markers, 0.8 - 2.4 mm, 50.8 x 4.2 mm, white |
| Order No. | 2437490000 |
| Type | HS 0.8-2.4/50 MM W |
| GTIN (EAN) | 4050118460995 |
| Qty. | 1.000 items |
| Depth | 0,77 mm |
| Depth (inches) | 0,03 inch |
| Height | 50,8 mm |
| Height (inches) | 2 inch |
| Width | 4,2 mm |
| Width (inches) | 0,165 inch |
| Net weight | 0,491 g |
| Operating temperature range | -55...135 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | white |
| compatible printer |
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000) |
| Halogen | Yes |
| Material | Polyolefine |
| Number per roll | 1000 |
| Operating temperature range | -55...135 °C |
| Operating temperature range, max. | 135 °C |
| Operating temperature range, min. | -55 °C |
| Recommended industries |
Plant manufacture
Energy Device manufacturer Machinery |
| Width | 4,2 mm |
| Conductor cross-section, max. | 0,5 mm² |
| Conductor cross-section, min. | 0,25 mm² |
| Conductor O.D. | 0.8 - 2.4 mm |
| Conductor O.D., max. | 2,4 mm |
| Conductor O.D., min. | 0,8 mm |
| Cross-section for connected wire | 0.25 - 0.5 mm² |
| Halogen | Yes |
| Rate of shrinkage | 3:1 |
| Recommended shrinking temperature | 90 °C |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2437490000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001530 |
| ETIM 7.0 | EC001530 |
| ETIM 8.0 | EC001530 |
| ETIM 9.0 | EC001530 |
| ECLASS 9.0 | 27-40-04-01 |
| ECLASS 9.1 | 27-40-04-01 |
| ECLASS 10.0 | 27-40-04-01 |
| ECLASS 11.0 | 27-28-11-02 |
| ECLASS 12.0 | 27-28-11-02 |
| ECLASS 13.0 | 27-28-11-02 |
| ECLASS 14.0 | 27-28-11-02 |
| ROHS | Conform |
