Eigenschappen

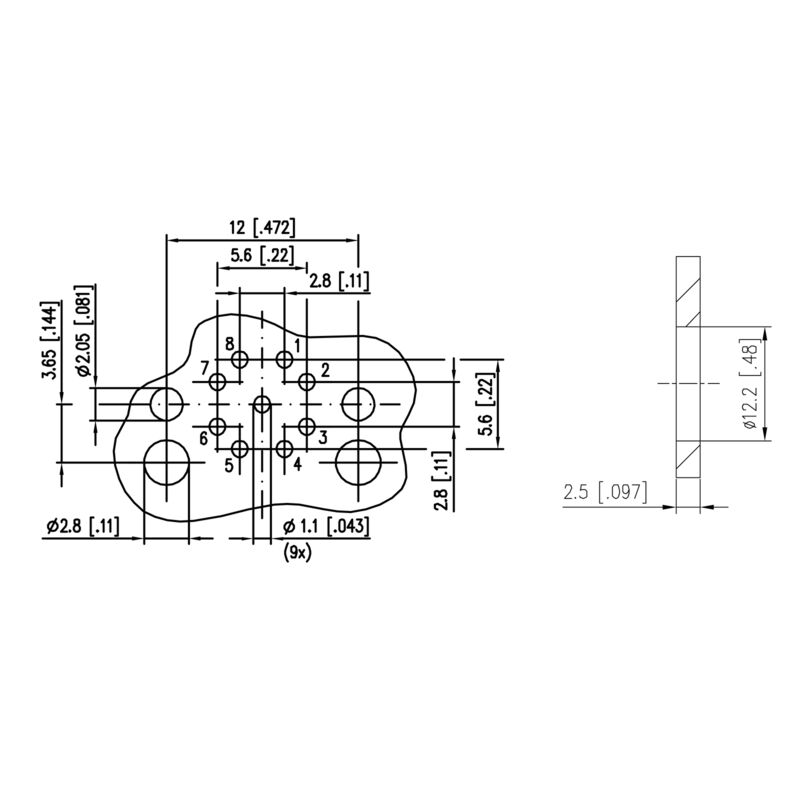

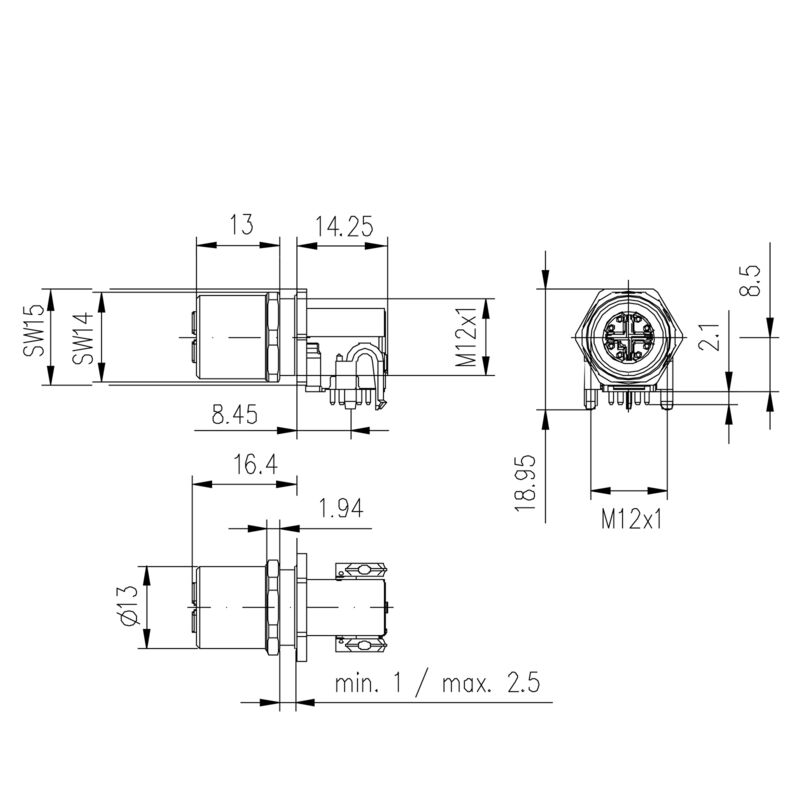

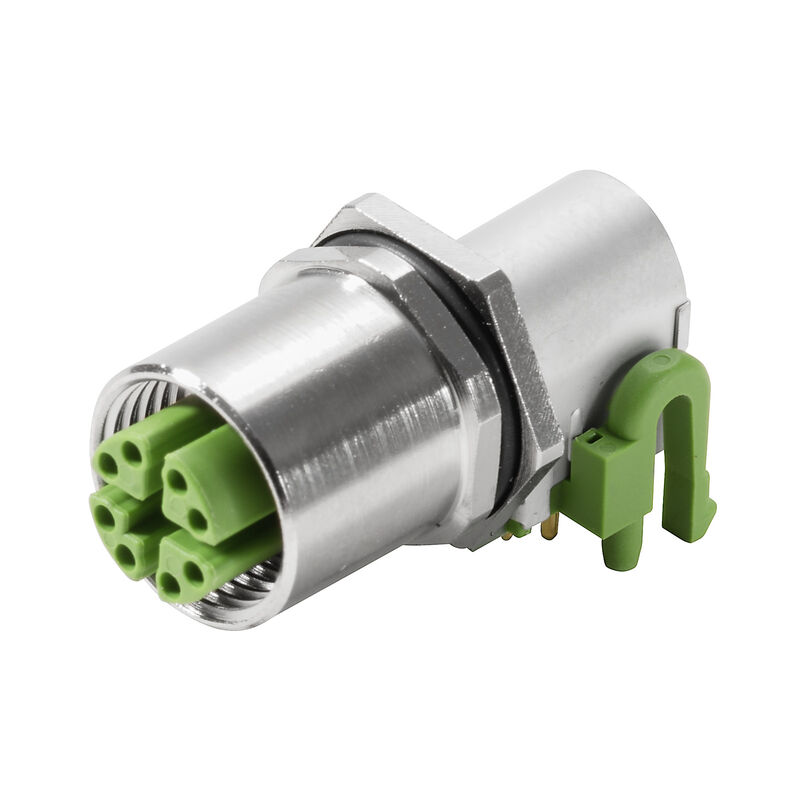

| Version | PCB plug-in connector, M12, Solder connection, Cat.6A / Class EA (ISO/IEC 11801 2010), IP67, when screwed in, Reflow compatible, 1-part |
| Order No. | 2168220000 |
| Type | IE-PCB-M12X-S-90 |
| GTIN (EAN) | 4050118427233 |
| Qty. | 10 items |
| Wall thickness, min. | 1 mm |
| Wall thickness, max. | 2,5 mm |
| Net weight | 0,01 g |
| Operating temperature | -40 °C...85 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 67cf1078-beca-4687-860b-dc475a6ec24a |
| Coding | X-coded |
| Number of poles | 8 |
| Rated voltage | 48 V |
| Protection degree |
IP67
when screwed in |
| Contact surface | Gold over nickel |
| Housing main material | CuZn |
| Connection thread | M12 |
| Insulation strength | 100 MΩ |
| Plugging cycles | ≥ 100 |
| Contact material | Cu-alloy |
| Number of poles | 8 |
| Connection 1 | M12 |
| Connection 2 | Solder connection |
| Configuration | Reflow compatible |
| Housing main material | CuZn |
| Category | Cat.6A / Class EA (ISO/IEC 11801 2010) |
| Connection thread | M12 |
| Contact material | Cu-alloy |
| Contact surface | Gold over nickel |
| Shielding material | CuSn |
| Shielding | 360° all-round enclosure |
| Protection degree |
IP67
when screwed in |
| Plugging cycles | ≥ 100 |
