Eigenschappen
| Version | Power supply, switch-mode power supply unit, 48 V |
| Order No. | 2467170000 |

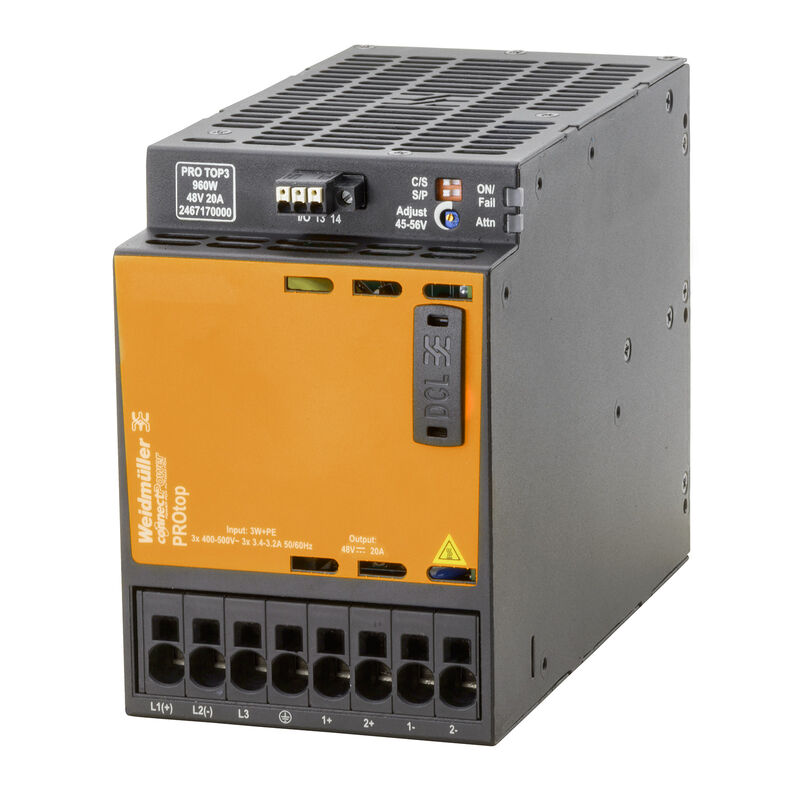

| Type | PRO TOP3 960W 48V 20A |
| GTIN (EAN) | 4050118482072 |
| Qty. | 1 items |
| Depth | 175 mm |
| Depth (inches) | 6,89 inch |
| Height | 130 mm |
| Height (inches) | 5,118 inch |
| Width | 89 mm |
| Width (inches) | 3,504 inch |
| Net weight | 2.490 g |
| Storage temperature | -40 °C...85 °C |
| Operating temperature | -25 °C...70 °C |
| Humidity at operating temperature | 5...95 %, no condensation |
| Start-up | ≥ -40 °C |
| RoHS Compliance Status | Compliant with exemption |
| RoHS Exemption (if applicable/known) | 6c, 7a, 7cI |
| REACH SVHC | Lead 7439-92-1 |
| SCIP | 6d8cdf22-8230-4af8-86c8-3558c716666d |
| AC input voltage range | 3 x 320...3 x 575 V AC / 2 x 360...2 x 575 V AC |
| Connection system | PUSH IN |
| Current consumption in relation to the input voltage |
|
| DC input voltage range | 450...800 V DC |
| Frequency range AC | 45…65 Hz |
| Input fuse (internal) | No |
| Inrush current | Max. 10 A |
| Nominal power consumption | 1.007 VA |
| Rated input voltage | 3x 400...3x 500 V AC (wide-range input) |
| Recommended back-up fuse | 6 - 8 A, Char. C |
| Surge protection | Varistor |
| Connection system | PUSH IN |
| DCL - peak load reserve |
|
| Mains failure bridge-over time | > 20 ms @ 115V AC/ 230 VAC |
| Nominal output current for Unom | 20 A @ 60 °C |
| Output power | 960 W |
| Output voltage, max. | 56 V |
| Output voltage, min. | 45 V |
| Output voltage, note | adjustable with potentiometer or comunication module |
| Parallel connection option | Yes, for redundancy and power increase (with ORing MOSFET) |
| Protection against inverse voltage | Yes |
| Ramp-up time | ≤ 100 ms |
| Rated output voltage | 48 V DC ± 1 % |
| Residual ripple, breaking spikes | <50 mVss @ UNenn, Full Load |
| AC failure bridging time @ Inom | > 20 ms @ 230 V AC / > 20 ms @ 115 V AC |
| Conformal coating | No |
| Degree of efficiency | 95,3 % |
| Derating | > 60°C (2.5% / 1°C) |
| Earth leakage current, max. | 3,5 mA |
| Housing version | Metal, corrosion resistant |
| MTBF |
|
| Power factor (approx.) | > 0.75 @ 3x400 V AC |
| Protection degree | IP20 |
| Short-circuit protection |
Yes
internal |
| Surge voltage category |
III
II |
| Weight | 2.490 g |
| Interference immunity test acc. to |
EN 55024
EN 55032 (EN 55022) EN 61000-6-1, 2, 3, 4 |
| Shock resistance IEC 60068-2-27 | 30 g in all directions |
| Vibration resistance IEC 60068-2-6 |
2.3 g (on DIN rail)
4 g (with direct mounting) |
| Insulation voltage input / earth | 3,2 kV |
| Insulation voltage output / earth | 0,5 kV |
| Insulation voltage, input/output | 3,5 kV |
| Pollution severity | 2 |
| Protection class | I, with PE connection |
| Surge voltage category |
III
II |
| Electrical machine equipment | Acc. to EN60204 |
| For use with electronic equipment | Acc. to EN50178 / VDE0160 |
| Protection against dangerous shock currents | Acc. to VDE0106-101 |
| Protective separation / protection against electrical shock | VDE0100-410 / acc. to DIN57100-410 |
| Safety extra-low voltage |
SELV acc. to IEC 60950-1
PELV according to EN 60204-1 |
| Safety transformers for switch-mode power supplies | According to EN 61558-2-16 |
| Conductor cross-section, AWG/kcmil , max. | 4 AWG |
| Conductor cross-section, AWG/kcmil , min. | 20 AWG |
| Conductor cross-section, flexible , min. | 0,75 mm² |
| Conductor cross-section, rigid , max. | 16 mm² |
| Conductor cross-section, rigid , min. | 0,75 mm² |
| Connection system | PUSH IN |
| Number of terminals | 4 for L1/L2/L3/PE |
| Wire connection cross section, flexible (input), max. | 16 mm² |
| Conductor cross-section, AWG/kcmil , max. | 4 AWG |
| Conductor cross-section, AWG/kcmil , min. | 20 AWG |
| Conductor cross-section, flexible , max. | 16 mm² |
| Conductor cross-section, flexible , min. | 0,75 mm² |
| Conductor cross-section, rigid , max. | 16 mm² |
| Conductor cross-section, rigid , min. | 0,75 mm² |
| Connection system | PUSH IN |
| Number of terminals | 4 (++ / --) |
| Wire connection cross-section, flexible (signal), max. | 1,5 mm² |
| Wire connection cross-section, flexible (signal), min. | 0,14 mm² |
| Wire connection method | PUSH IN |
| Wire cross-section, AWG/kcmil , max. | 16 |
| Wire cross-section, AWG/kcmil , min. | 26 mm² |
| Wire cross-section, solid , max. | 1,5 mm² |
| Wire cross-section, solid , min. | 0,14 mm² |
| Floating contact | Yes |
| LED green/red |
Green: Operation (failure-free)
Flashing green: advance warning I>90% Green/red flashing: output switched off (switch-off mode) Flashing red: overload/error |
| Status relay (max. load) | Output voltage OK (30 V DC / 1 A) |
| Approval/Certificate/Document of Conformity |
[Lloyds Register Certificate](https://mdcop.weidmueller.com/mediadelivery/asset/900_305375)
[DNV Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_305414) [RINA Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_305415) [UL 121201 CL1 DIV 2 Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306012) [ABS Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306100) [BV Certificate.pdf](https://mdcop.weidmueller.com/mediadelivery/asset/900_306101) [Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_85824) [UK Conformity Assessed](https://mdcop.weidmueller.com/mediadelivery/asset/900_310856) |
| Engineering Data |
[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66166)
[Application notes -- PROtop-topGUARD_IO-Link_CODESYS](https://mdcop.weidmueller.com/mediadelivery/asset/900_319010) [Application notes -- PROtop_topGUARD_IO-Link_Twincat](https://mdcop.weidmueller.com/mediadelivery/asset/900_319013) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.2467170000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2467170000) |
| User Documentation |
[Operating instruction](https://mdcop.weidmueller.com/mediadelivery/asset/900_86891)
[IO-Link Register Description PROtop](https://mdcop.weidmueller.com/mediadelivery/asset/900_102811) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[Produkt Information PROTOP DE](http://download.weidmueller.com/asset/download/file/86233)
[Produkt Information PROTOP EN](http://download.weidmueller.com/asset/download/file/86234) |
| ETIM 6.0 | EC002540 |
| ETIM 7.0 | EC002540 |
| ETIM 8.0 | EC002540 |
| ETIM 9.0 | EC002540 |
| ECLASS 9.0 | 27-04-07-01 |
| ECLASS 9.1 | 27-04-07-01 |
| ECLASS 10.0 | 27-04-07-01 |
| ECLASS 11.0 | 27-04-07-01 |
| ECLASS 12.0 | 27-04-07-01 |
| ECLASS 13.0 | 27-04-07-01 |
| ECLASS 14.0 | 27-04-07-01 |
| Approvals |          |
| ROHS | Conform |
| UL File Number Search | [UL Website](LINK/UL_search.html) |
| Certificate no. (cULus) | E258476 |
| Certificate no. (cULusEX) | E470829 |
