Eigenschappen
| Version | Field attachable connector, Valve plug, Socket, angled |
| Order No. | 2451220000 |
| Type | SAIB-VSA-3P/24/9/SD |
| GTIN (EAN) | 4050118465426 |
| Qty. | 1 items |
| Net weight | 26 g |
| REACH SVHC | Lead 7439-92-1 |

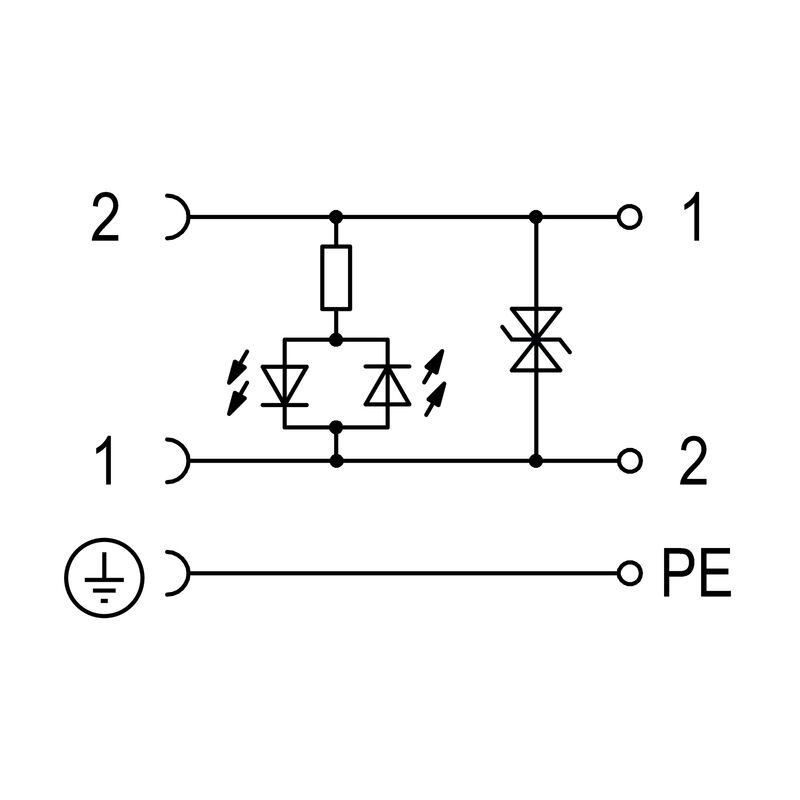

| All valve plugs are fitted with protective circuits | Suppressor diode |
| Cable diameter, max. | 7 mm |
| Cable diameter, min. | 4,5 mm |
| Coding | Design A (18 mm) |
| Connection cross-section, max. | 1,5 mm² |
| Contact surface | CuSn |
| Housing main material | PA 6 GF |
| LED | No |
| Number of poles | 3 |
| Plugging cycles | ≤ 50 |
| Pollution severity | 3 |
| Protection degree | IP65 |
| Rated current | 10 A |
| Rated voltage | 24 V |
| Shield connection | No |
| Temperature range of housing | -30…+90 °C |
| Type of connection | Screw connection |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures | [FL FIELDWIRING EN](http://download.weidmueller.com/asset/download/file/38293) |
| ETIM 6.0 | EC002062 |
| ETIM 7.0 | EC003623 |
| ETIM 8.0 | EC003623 |
| ETIM 9.0 | EC003623 |
| ECLASS 9.0 | 27-44-01-05 |
| ECLASS 9.1 | 27-44-01-05 |
| ECLASS 10.0 | 27-44-01-05 |
| ECLASS 11.0 | 27-44-01-05 |
| ECLASS 12.0 | 27-44-01-05 |
| ECLASS 13.0 | 27-44-01-05 |
| ROHS | Conform |
