SAIE-M8S-3-F13SMT
Similar to illustration
SAIE-M8S-3-F13SMT

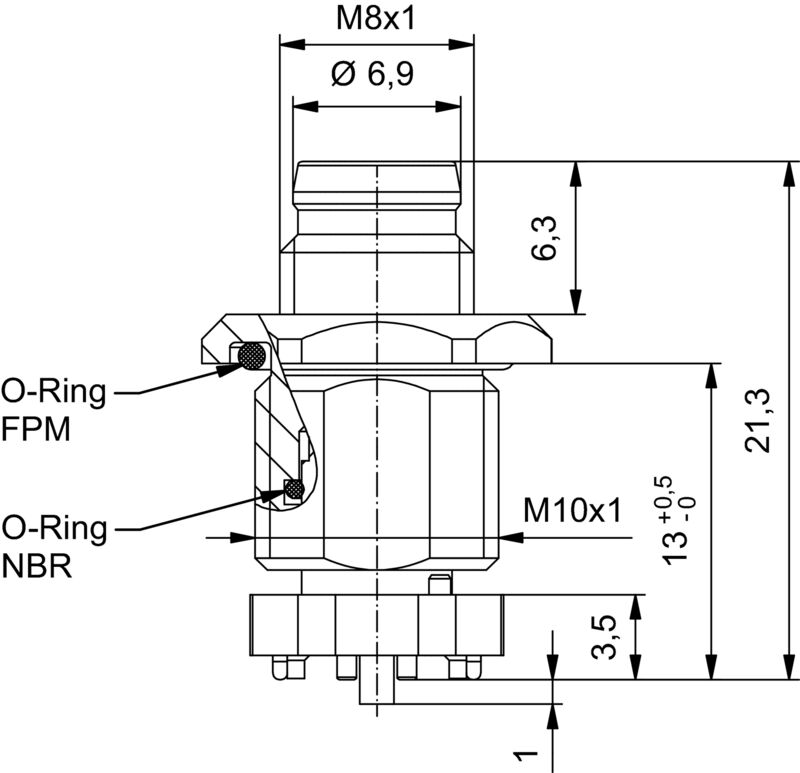

Dimensioned drawing
SAIE-M8S-3-F13SMT
PCB design
SAIE-M8S-3-F13SMT
Pole scheme
Male

SAIE-M8S-3-F13SMT

Built-in plugs, M8, Mounting thread: M10, Number of poles: 3, Strand / cable length:

Item No. 2422290000
Download data sheet Engineering Support
Related products 16
Approvals General ordering data Dimensions and weights Environmental Product Compliance Tekniska data för kretskortskontakt General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Ausfuehrung
Built-in plugs, M8, Mounting thread: M10, Number of poles: 3, Strand / cable length:
Order No.
2422290000
Type
SAIE-M8S-3-F13SMT
GTIN (EAN)
4050118430059
Qty.
25 items

Dimensions and weights

순중량
2 g

Environmental Product Compliance

RoHS-Konformitätsstatus
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Tekniska data för kretskortskontakt

Coding
M8 = none
Housing surface
nickel-plated
Housings
M8 pin
Installation height
13 mm
Montagegewinde
M10
Number of poles
3
Shield connection
No
Type of mounting
Front mounting
Nominal voltage
60 V
Rated voltage
60 V (3-pole) / 30 V (4-,5- and 8-pole)
Corriente nominal
4 A
Rated current
4 A (3-, 4- and 5-pole) / 1.5 A (8-pole)
Plage de températures
-30…80 °C
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
결선 나사산
M8
Tightening torque
M8: 0.5 Nm
장착 나사산
M10
Mounting torque
  • max.:
    0,8 Nm
Zakres momentu dokręcania przy montażu
0.8 Nm
Сопротивление изоляции
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Seal material
NBR
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn
Grouting material
PUR

General Info

Number of poles
3
Housing main material
CuZn
nickel-plated
Connection thread
M8
Contact material
Cu-alloy
Поверхность контакта
Au (Gold)
Type of mounting
Front mounting
IP67
Plugging cycles
≥ 100

Material data

Érintkező anyaga
Cu-alloy
Contact surface
Au (Gold)

System parameters

IP67
Odpor izolace
100 MΩ
Pin series quantity
1
Plugging cycles
≥ 100
Počet pólů
3

Classifications

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
