SAIL-M8BGR-4-3.0U
SAIL-M8BGR-4-3.0U
Dimensioned drawing
Straight socket
SAIL-M8BGR-4-3.0U
Pole scheme
Socket
SAIL-M8BGR-4-3.0U
Wiring diagram

SAIL-M8BGR-4-3.0U

Dette produkt er ikke længere tilgængeligt.

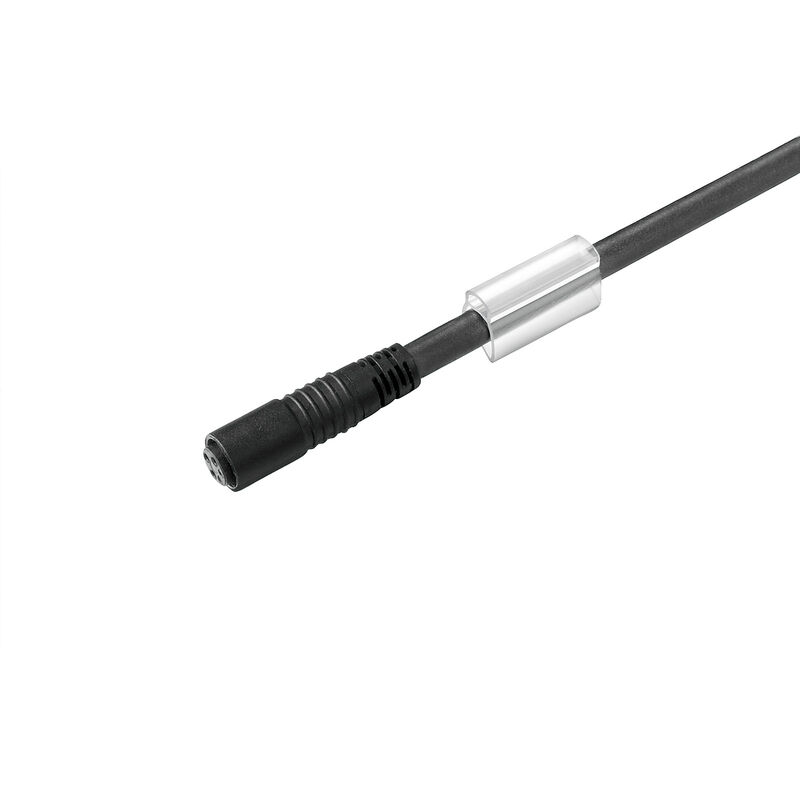

Sensor/actuator line, One end without connector, M8, Number of poles : 4, 3 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1948530300
Download datablad Product Downloads Engineering Support
Tilbehør 6
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Omologazioni
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

버전
Sensor/actuator line, One end without connector, M8, Number of poles : 4, 3 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1948530300
Type
SAIL-M8BGR-4-3.0U
GTIN (EAN)
4032248625215
Qty.
1 Styk
Delivery status
This article will no longer be available in the future.
Available until
30.11.2025

Dimensions and weights

Net weight
95,04 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS-undantag (om tillämpligt/känt)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Acceleration
5 m/s²
Bending cycles
12 Mio
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Biegezyklen bei Torsionsbeanspruchung
> 5 Mio.
Cable length
3 m
Configurable cable length
No
Core cross-section
0,25 mm²
Core in accordance with UL AWM style
10493 (80 °C / 300 V)
Diámetro exterior
4.4 mm ± 0.2 mm
Farbcodierung
brown
white
blue
black
Halogen
No
Hydrolysis and microbe resistant
Yes
Insulation
PP
LABS-free
Yes
Length of torsion
1 m
Número de polos
4
Outer cladding in accordance with UL AWM style
20549 (80 °C / 300 V)
Resistance to oils
in accordance with IEC 60811:404
Resistance to spread of flame
In accordance with UL1581 UL / CUL FT2
in accordance with IEC 60332-2-2
Schweißfunkenbeständigkeit
No
Schweißperlenfest
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Speed
5 m/s
Suitable for cable carriers
Yes
Temperaturbereich, fest verlegt
-40...80 °C
Temperature range, moving
-25...80 °C
Torsionsfestigkeit
360 °/m
Zesítěné vyzařování
No

General technical data

Coding
A-coded
Connection thread
M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
4 A
Nominal voltage
30 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP65 (in plugged condition)
Temperature range of housing
-25…+85 °C
Threaded ring material
PUR
Version
Female socket, straight

Electrical properties

Névleges feszültség
30 V
Résistance d'isolation
108 Ω

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-104

Standards

Connector standard
IEC 61076-2-104

Plug, left

Plug left
M8, IP69, female contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
