Özellikler

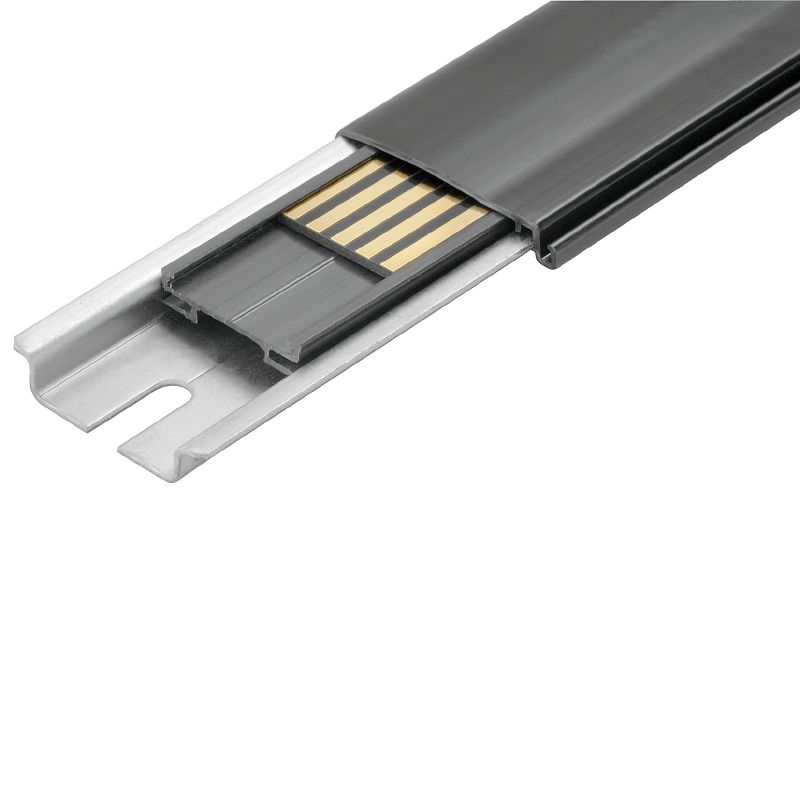

| Version | OMNIMATE Housing - series CH20M, Length: 250 mm, Width: 25.1 mm |
| Order No. | 1335140000 |
| Type | SET CH20M BUS 250MM TS 35X7.5 |
| GTIN (EAN) | 4050118138375 |
| Qty. | 1 adet |
| Depth | 250 mm |
| Depth (inches) | 9,842 inch |
| Height | 6,2 mm |
| Height (inches) | 0,244 inch |
| Width | 25,1 mm |
| Width (inches) | 0,988 inch |
| Length | 250 mm |
| Length (inches) | 9,842 inch |
| Net weight | 47,21 g |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| UL 94 flammability rating | V-0 |
| Material | Plastic |
| Surface finish | untreated |
| UL 94 flammability rating | V-0 |
| Colour | black |
| Colour chart (similar) | RAL 9011 |
| Protection degree | IP20 in installed state |
| Rail |
TS 35 x 7.5
TS 35 x 15 via bus profil |
| Coating thickness Au, min. | 0,5 µm |
| Coating thickness Au, max. | 0,8 µm |
| Coating thickness Cu, min. | 0,7 µm |
| Current carrying capacty, max. circuit path (sum current) | 25 A |
| Voltage AC bus rail according to DIN EN 60664, max. | 63 V |
| Voltage AC bus rail according to UL840, C22.2 no. 14.5, max. | 30 V |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_204420) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1335140000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| Brochures |
[FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237)
[MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) [FL ANALO.SIGN.CONV. EN](http://download.weidmueller.com/asset/download/file/38237) [MB DEVICE MANUF. EN](http://download.weidmueller.com/asset/download/file/38257) [FL MACHINE SAFETY EN](http://download.weidmueller.com/asset/download/file/38228) [FL 72H SAMPLE SER EN](http://download.weidmueller.com/asset/download/file/38294) [PO OMNIMATE EN](http://download.weidmueller.com/asset/download/file/38132) |
| ETIM 7.0 | EC001031 |
| ETIM 8.0 | EC001031 |
| ETIM 9.0 | EC001031 |
| ECLASS 11.0 | 27-18-27-02 |
| ECLASS 12.0 | 27-18-27-02 |
| ECLASS 13.0 | 27-19-06-05 |
| ECLASS 14.0 | 27-19-06-05 |
| ROHS | Conform |
Aksesuarlar
-
Ürün No.:1510340000Ambalaj birimi:1 adet
Bus termination terminal for ACT20C station, Input : 0…40/50/60 A, Output : Pulse
aksesuarıdır
-
Ürün No.:1375500000Ambalaj birimi:1 adet
Temperature converter, Thermocouple, Without galvanic isolation, Input : Temperature, thermocouple, Output : I / U
-
Ürün No.:1375510000Ambalaj birimi:1 adet
Temperature converter, With galvanic isolation, Input : Temperature, PT100, Output : I / U
-
Ürün No.:1375480000Ambalaj birimi:1 adet
Temperature converter, Thermocouple, With galvanic isolation, Input : Temperature, thermocouple, Output : I / U
-
Ürün No.:1375520000Ambalaj birimi:1 adet
Temperature converter, Without galvanic isolation, Input : Temperature, PT100, Output : I / U
-
Ürün No.:1176000000Ambalaj birimi:1 adet
Signal converter/insulator, Configurable, with sensor supply, Input : I / U, Output : I / U
-
Ürün No.:1375450000Ambalaj birimi:1 adet
Signal converter/insulator, Configurable, Input : I/U/bidirectional I, Output : I / U
-
Ürün No.:1176010000Ambalaj birimi:1 adet
Signal converter/insulator, Configurable, without sensor supply, Input : I / U, Output : I / U
-
Ürün No.:1175980000Ambalaj birimi:1 adet
Signal converter/insulator, Input : 0(4)-20 mA, Output : 0(4)-20 mA
-
Ürün No.:1176030000Ambalaj birimi:1 adet
Signal converter/insulator, Temperature converter, Input : universal U, I, R,ϑ, Output : I / U
-
Ürün No.:1176020000Ambalaj birimi:1 adet
Signal splitter, Configurable, with sensor supply, Input : I / U, Output : 2 x I/U
-
Ürün No.:1175990000Ambalaj birimi:1 adet
Signal splitter, Signal distributor, Input : 0(4)-20 mA, Output : 2 x 0(4) - 20 mA
-
Ürün No.:1375470000Ambalaj birimi:1 adet
Signal splitter, Configurable, Input : I/U/bidirectional I, Output : 2 x I/U or 1 x bidirectional
-
Ürün No.:8965500000Ambalaj birimi:1 adet
Supply module, Distributes supply voltage to rail bus, Optional connection of backup supply
-
Ürün No.:2456870000Ambalaj birimi:1 adet
Supply module, Distributes supply voltage to rail bus, Optional connection of backup supply
-
Ürün No.:1282490000Ambalaj birimi:1 adet
Supply module, Distributes supply voltage to rail bus
-
Ürün No.:1510240000Ambalaj birimi:1 adet
Current-measuring transducer, Input : 0…5/10 A, Output : 0(4)-20 mA, 0-10 V, Relay
-
Ürün No.:1510370000Ambalaj birimi:1 adet
Gateway for ACT20C station, Configurable, Modbus TCP/IP, Distributes supply voltage to rail bus, Input : 0…40/50/60 A, Output : Pulse
-
Ürün No.:2044840000Ambalaj birimi:1 adet
Current-measuring transducer, Input : 0…5/10 A, Output : 0(4)-20 mA, 0-10 V, Relay
-
Ürün No.:1510420000Ambalaj birimi:1 adet
Current-measuring transducer, Input : 0…40/50/60 A, Output : 0(4)-20 mA, 0-10 V, Relay
-
Ürün No.:1510340000Ambalaj birimi:1 adet
Bus termination terminal for ACT20C station, Input : 0…40/50/60 A, Output : Pulse
Münferit parçalar
-
Ürün No.:1248150000Ambalaj birimi:10 adet
OMNIMATE Housing - series CH20M, Length: 250 mm, Width: 25.1 mm
-
Ürün No.:1193170000Ambalaj birimi:50 adet
OMNIMATE Housing - series CH20M, Length: 40.5 mm, Width: 5.1 mm
-
Ürün No.:1193160000Ambalaj birimi:50 adet
OMNIMATE Housing - series CH20M, Length: 40.5 mm, Width: 5.1 mm
-
Ürün No.:1248220000Ambalaj birimi:10 adet
OMNIMATE Housing - series CH20M, Length: 250 mm, Width: 21.8 mm
-
Ürün No.:1248250000Ambalaj birimi:10 adet
OMNIMATE Housing - series CH20M, Length: 250 mm, Width: 39.5 mm
