SLD 3.50/30/90G 3.2SN BK BX

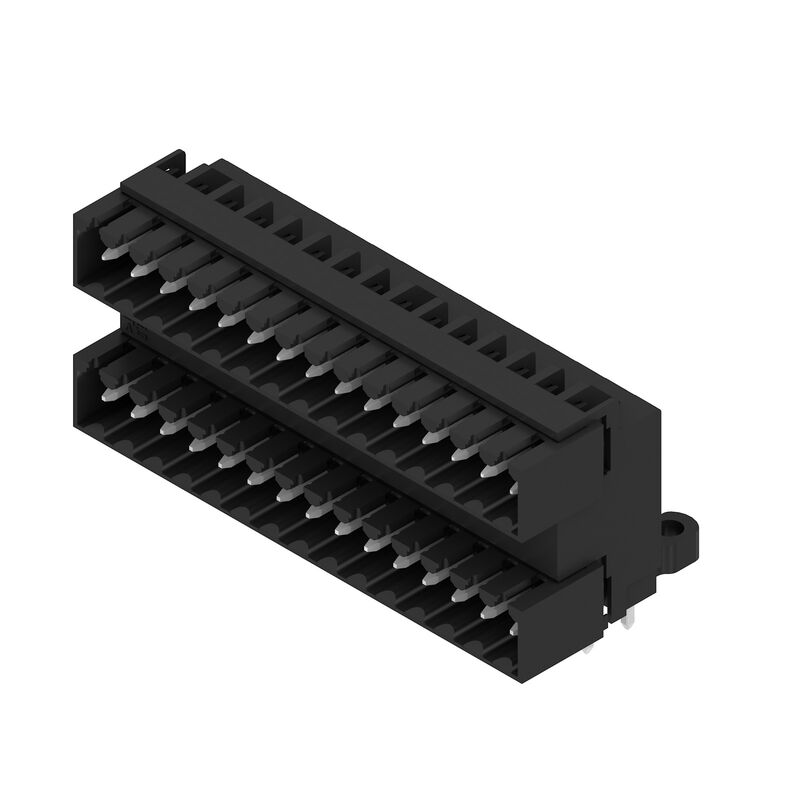

Product image
SLD 3.50/30/90G 3.2SN BK BX

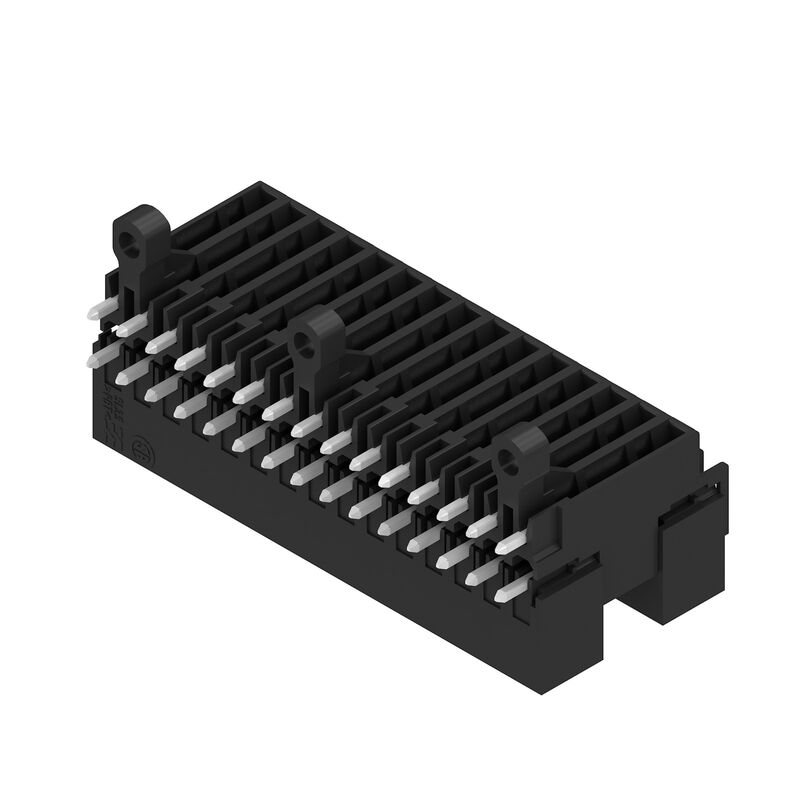

Product image
SLD 3.50/30/90G 3.2SN BK BX
Dimensional drawing

SLD 3.50/30/90G 3.2SN BK BX

PCB plug-in connector, male header, closed side, THT solder connection, 3.50 mm, Number of poles: 30, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box

Ürün No. 1794130000
Veri sayfasını indir Product Downloads Engineering Support
İlgili ürünler 29
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
PCB plug-in connector, male header, closed side, THT solder connection, 3.50 mm, Number of poles: 30, 90°, Solder pin length (l): 3.2 mm, tinned, black, Box
Order No.
1794130000
Type
SLD 3.50/30/90G 3.2SN BK BX
GTIN (EAN)
4032248231539
Qty.
10 adet
Product data
IEC: 200 V / 10.5 A
UL: 300 V / 8 A
Packaging
Box

Dimensions and weights

Depth
24,7 mm
깊이 (인치)
0,972 inch
Height
26,5 mm
Height (inches)
1,043 inch
Height of lowest version
23,3 mm
Width
53,9 mm
Width (inches)
2,122 inch
Nettó tömeg
16,896 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Skupina produktů
OMNIMATE Signal - series BL/SL 3.50
Typ připojení
Board connection
Mounting onto the PCB
THT solder connection
Rozteč v mm (P)
3,5 mm
Pitch in inches (P)
0,138 "
Outgoing elbow
90°
Number of poles
30
Number of solder pins per pole
1
Solder pin length (l)
3,2 mm
Solder pin length tolerance
0 / -0.3 mm
Forrasztótüske méretei
d = 1.2 mm
Octagonal
Solder pin dimensions = d tolerance
0 / -0,03 mm
Forrasztószem lyukátmérő (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
49 mm
L1 in inches
1,929 "
Number of rows
2
Pin series quantity
2
Touch-safe protection acc. to DIN VDE 57 106
finger-safe plugged/ back-of-hand-safe unplugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging force/pole, max.
10 N
Pulling force/pole, max.
8 N

Material data

Insulating material
PBT
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
CTI(Comparative Tracking Index, 비교 추적 지수)
≥ 200
UL 94 flammability rating
V-0
Material de contacto
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
2...3 µm Ni / 5...7 µm Sn glossy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

依据标准进行测试
IEC 60664-1
IEC 61984
Névleges áram, min. pólusszám (Tu=20 °C)
10,5 A
Rated current, max. number of poles (Tu=20°C)
8 A
Rated current, min. number of poles (Tu=40°C)
9 A
Rated current, max. number of poles (Tu=40°C)
7 A
서지 전압 클래스 정격 전압 / 오염 등급 II/2
200 V
서지 전압 클래스 정격 전압 / 오염 등급 III/2
160 V
Névleges feszültség a III/3 túlfeszültség osztályhoz / szennyezés mértékéhez
125 V
Névleges lökőfeszültség a II/2 túlfeszültség osztályhoz / szennyezés mértékéhez
2,5 kV
Névleges lökőfeszültség a III/2 túlfeszültség osztályhoz / szennyezés mértékéhez
2,5 kV
Sobretensión de choque nominal con categoría de sobretensión/grado de polución III/3
2,5 kV
Short-time withstand current resistance
3 x 1s with 80 A

Rated data acc. to CSA

Institut (CSA)
CSA
Zertifikat-Nr. (CSA)
154685-1318353
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
8 A
Rated current (Use group D / CSA)
8 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Tensione nominale (Gruppo D / UL 1059)
300 V
Névleges áram (B felhasználási csoport/ UL 1059)
8 A
Rated current (Use group D / UL 1059)
8 A
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Verpackung
Box
VPE Länge
167 mm
VPE width
69 mm
VPE height
43 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
