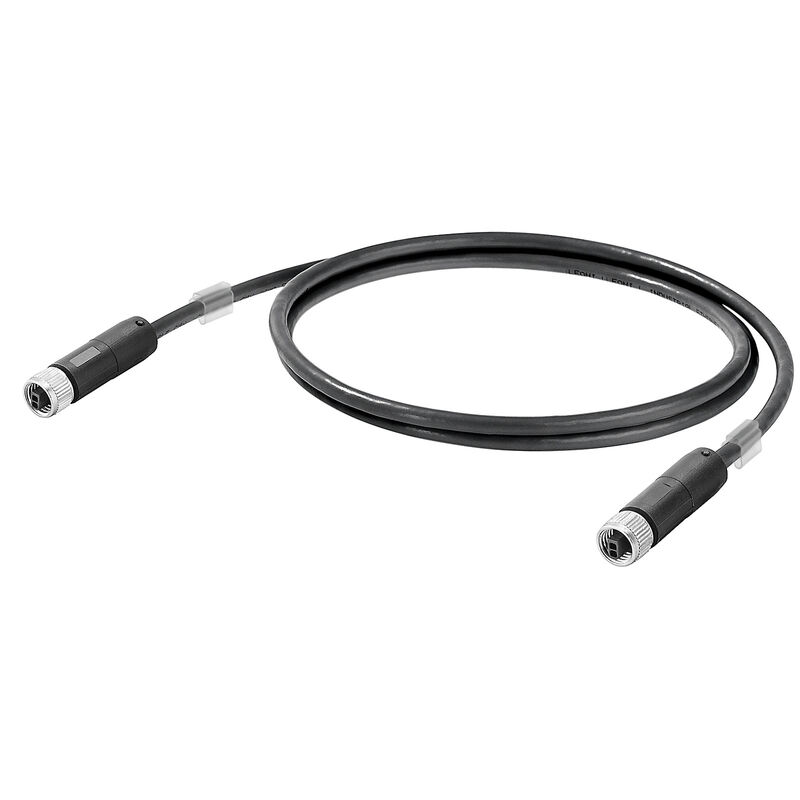

Patch cable, M8 SPE ( IEC63171-5) - IP67 socket contact - straight, M8 SPE ( IEC63171-5) - IP67 socket contact - straight, T1-B, PVC, 10 m

Ürün No. 2726050100
Veri sayfasını indir Mérnöki támogatás
Связанные продукты 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Electrical properties Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Plug Plug, left Plug, right Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Version
Patch cable, M8 SPE ( IEC63171-5) - IP67 socket contact - straight, M8 SPE ( IEC63171-5) - IP67 socket contact - straight, T1-B, PVC, 10 m
Order No.
2726050100
Type
IE-S1DS2VE0100TM1TM1-E
GTIN (EAN)
4064675597452
Qty.
1 Styk

Dimensions and weights

Length
10 m
Length (inches)
393,701 inch
Net weight
335 g

Temperatures

Operating temperature
-40 °C...85 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Electrical properties

Current-carrying capacity
  • Current-carrying capacity:
    3,5 A
  • Temperature:
    0 °C
PoE / PoE+
PoDL acc. to IEEE 802.3bu / cg
Rigidità dielettrica contatto-contatto
1000 V DC
Átütési szilárdság, érintkező / árnyékolás
2250 V DC

Standards

Csatlakozó, standard
IEC 63171-5

Cable structure

Codifica a colori
white / blue
Copertura calza di schermatura
80 %
Diamètre de la gaine, max.
5,3 mm
Diamètre de la gaine, min.
4,9 mm
Insulation
PE
Insulation diameter 2
1,65 mm
Komplett árnyékolás
Shielding braid made from copper wiring
Köpeny anyaga
PVC
Número de conductores
2
Průřez
2*AWG 22
Schirmung
STP
Sheathing colour
svart
Strands
7

Electrical properties of cable

Capacity at 800 Hz
1,6 nF/km
Category
T1-B
Characteristic impedance
100 ± 15 Ω at 20 MHz
Coupling attenuation 1 to 600 MHz
Type I
Nominal current
3,5 A
Resistance differential
2 %
Test voltage: wire-wire-shield
1 kV DC, 1 min
Överföringshastighet
10/100 MBit/s
1000 MBit/s
Номинальное напряжение (DC)
60 V

Mechanical and material properties of cable

Colour
black
Halogen
Yes
Resistance to oils
IRM 902/903 oil resistance test at (70℃x4h)
Resistance to spread of flame
FT1
UV-resistant
Complies with UL 1581 Sec. 1200

Plug

Plug left
M8, Number of poles: 2, IP67, female contact, straight, Plastic, IEC 63171-5, shielded
Plug right
M8, Počet pólů: 2, IP67, Kontakt samice, přímý, Plast, IEC 63171-5, stíněné

Plug, left

Plug left
M8, Number of poles: 2, IP67, female contact, straight, Plastic, IEC 63171-5, shielded

Plug, right

Plug right
M8, Number of poles: 2, IP67, female contact, straight, Plastic, IEC 63171-5, shielded

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
