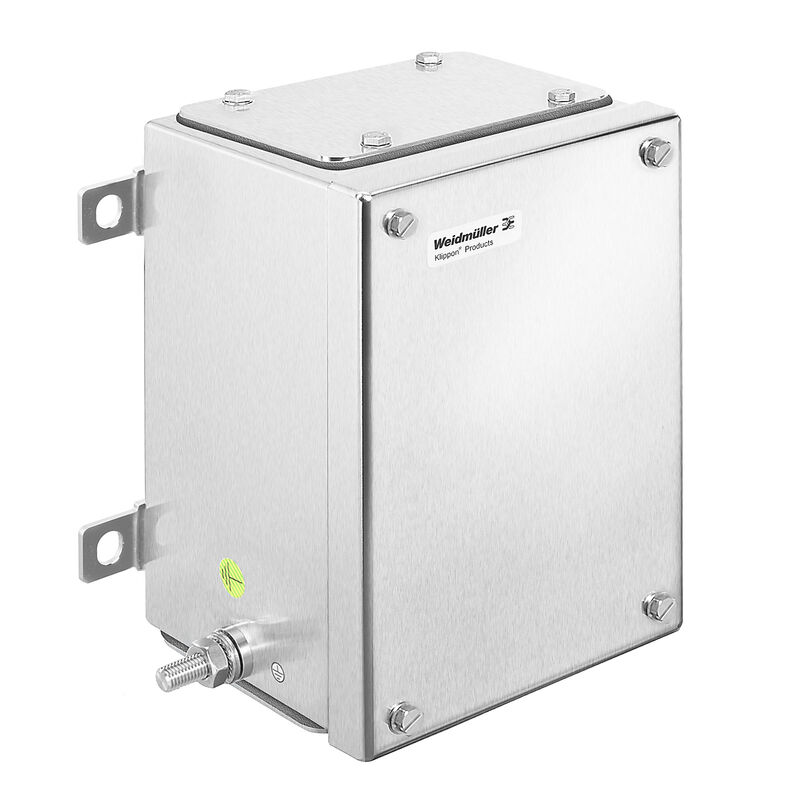

KTB FS 221513 S2B2 TUBEBOX
KTB FS 221513 S2B2 TUBEBOX

KTB FS 221513 S2B2 TUBEBOX

Dette produkt er ikke længere tilgængeligt.

Klippon TB FS (Terminal Box - Fixing Screw), Enclosures, Height: 229 mm, Width: 152 mm, Depth: 133 mm, Gland plates: Bottom, top, Basic material: Stainless steel 1.4301 (304), Brushed, silver

Item No. 8000080476
Download data sheet Produktdownloads
General ordering data Abmessungen und Gewichte Hőmérsékletek Environmental Product Compliance General information 水平装配 vertical assembly Material data General data Housing Classifications

General ordering data

Version
Klippon TB FS (Terminal Box - Fixing Screw), Enclosures, Height: 229 mm, Width: 152 mm, Depth: 133 mm, Gland plates: Bottom, top, Basic material: Stainless steel 1.4301 (304), Brushed, silver
Order No.
8000080476
Type
KTB FS 221513 S2B2 TUBEBOX
GTIN (EAN)
4064675593072
Ilość
1 szt.
Status dostawy
element wycofywany z produkcji

Abmessungen und Gewichte

Depth
133 mm
Depth (inches)
5,236 inch
Height
229 mm
Altura (pulgadas)
9,016 inch
Width
152 mm
Szerokość (cale)
5,984 inch
Net weight
4.420 g

Hőmérsékletek

Operating temperature
-60 °C...135 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
0.1 wt% 이상의 SVHC 없음

General information

IP66
IP67
Basic material
Stainless steel 1.4301 (304)
Flange plate
Yes
Gland plates
Bottom
top
Impact resistance
10 J version standard
Lid attachment
M6 hex-head slotted screws SW10
Material thickness of cover
1,5 mm
Material thickness of enclosure
1,5 mm
Material thickness of flange
3 mm
Operating temperature, max.
135 °C
Operating temperature, min.
-60 °C
Protection class (UL)
Type 3
Type 4X
Type 12
Seal material
Silicone
Standards
EN 60068 ≤1m from the track
EN 45545 HL3
Surface finish
Brushed
UL 94 flammability rating
V-0

水平装配

Fuse holder available
Yes

vertical assembly

Fuse holder available
Yes

Material data

Basic material
Stainless steel 1.4301 (304)
Surface finish
Brushed
UL 94 flammability rating
V-0

General data

IP66
IP67
Colour
silver
Colour chart (similar)
RAL 7001

Housing

Basic material
Stainless steel 1.4301 (304)
Drill holes side A
none
Drill holes side B
none

Classifications

ETIM 8.0
EC000261
ETIM 9.0
EC000261
ETIM 10.0
EC000261
ECLASS 14.0
27-18-01-01
ECLASS 15.0
27-18-01-01
