PAC-MICR-HE20-V2-5M

PAC-MICR-HE20-V2-5M

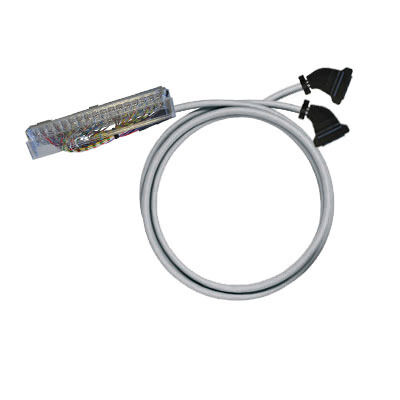

Pre-assembled cable, PAC, Cable LiYY, 0.25 mm²

Product ID 7789314050
Gegevensblad downloaden Productdownloads
Verwante producten 40
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General Data Electrical Data Classifications

Approvals

ROHS
Conform

General ordering data

Verze
Pre-assembled cable, PAC, Cable LiYY, 0.25 mm²
Order No.
7789314050
Typ
PAC-MICR-HE20-V2-5M
GTIN (EAN)
8430243969659
Qty.
1 items

Dimensions and weights

Net weight
1.170 g

Temperatures

Skladovací teplota
-10...60 °C
Provozní teplota
-10...50

Environmental Product Compliance

Stav souladu se směrnicí RoHS
Compliant
REACH SVHC
No SVHC above 0.1 wt%

General Data

Conector al lado control
SCHNEIDER TSX BLZ L01 35P
Diámetro exterior
8.6 ± 1 mm
Geeignet für
Digital signals
Interface connector
2X FLAT CABLE CONNECTOR HE10 20P
Kabel
Cable LiYY
Kabellänge
5 m
Number of poles, min.
20-pole
Sección del conductor
0,25 mm²
Werkstoff
PVC

Electrical Data

Celkový proud, max.
3 A
Kapazität Ader / Adern
300 pF/m
Kapazität Ader / Schirm
300 pF/m
Permissible current strength per path, max.
1 A
Rated voltage
≤ 60 Vdc ≤ 25 Vac
Resistance
≤ 80 mΩ/m
Zkouška vysokého napětí
1 KV/1s

Classifications

ETIM 8.0
EC000237
ETIM 9.0
EC000237
ETIM 10.0
EC000237
ECLASS 14.0
27-24-22-20
ECLASS 15.0
27-24-22-20
