SAIL-M12BG-12-30U
SAIL-M12BG-12-30U
Dimensioned drawing
Straight socket
SAIL-M12BG-12-30U
Pole scheme
Socket
SAIL-M12BG-12-30U
Wiring diagram

SAIL-M12BG-12-30U

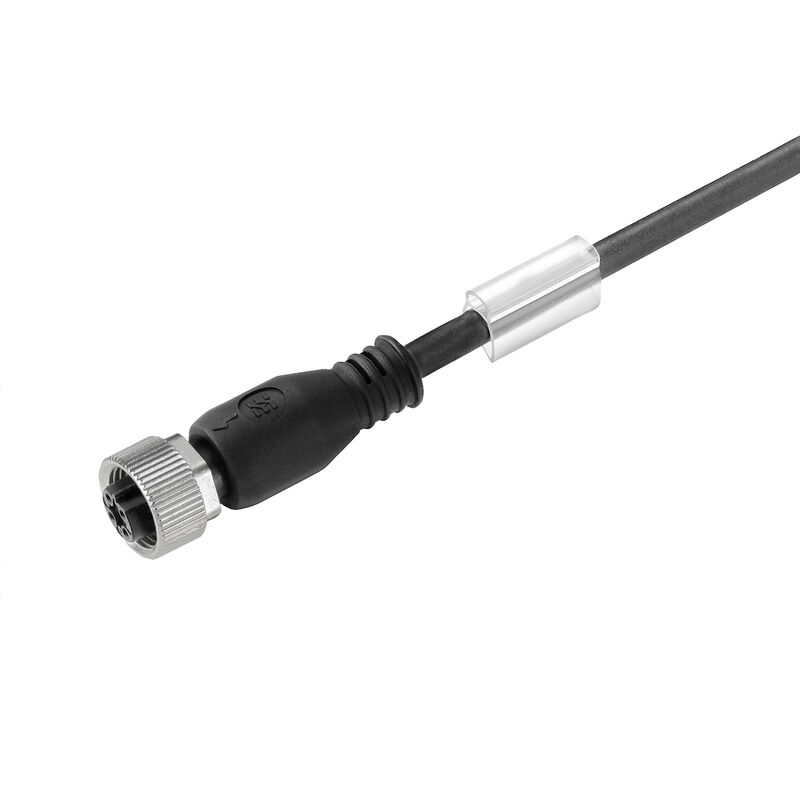

Sensor/actuator line, One end without connector, M12, Number of poles : 12, 30 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Ürün No. 1879713000
Veri sayfasını indir Mühendislik desteği
Tartozékok 7 Prodotti correlati 9
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E307231

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 12, 30 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
1879713000
Type
SAIL-M12BG-12-30U
GTIN (EAN)
4050118256604
Qty.
1 adet

Dimensions and weights

Net weight
1 101 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical specifications for cable

Acceleration
5 m/s²
Antal poler
12
Bending cycles
1 mill.
Bending radius, min., moving
10 x cable diameter
Bending radius, min., stationary
5 x cable diameter
Cable length
30 m
Core cross-section
0,14 mm²
Halogen
No
Insulation
PP
Irradiazione con legami trasversali
No
Kodowanie kolorami
yellow
pink
red / blue
black
grey / pink
green
white
blue
violet
brown
red
grey
Konfigurálható kábelhossz
No
Köpeny anyaga
PUR
Külső bevonat az UL AWM stílusnak megfelelően
20549 (80 °C / 300 V)
Outside diameter
5.6 mm ± 0.2 mm
Sebesség
5 m/s
Sheathing colour
black
Shielded
No
Suitable for cable carriers
Yes
Welding spark resistance
No
Wytrzymałość na skręcanie
180 °/m
Zakres temperatur, stały
-40...80 °C
Ér, az UL AWM stílusnak megfelelően
10493 (80 °C / 300 V)
Диапазон температур, движущ.
-25...80 °C
Устойчивые к каплям сварочного металла
No

General technical data

AF size
13 mm
Codificación
A-coded
Connection thread
M12
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
1,5 A
Nominal voltage
30 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP67
when screwed in
IP65
IP66
Temperature range of housing
-40 … +85 ° C
Threaded ring material
Brass, nickel-plated
Tightening torque
M12: 1.0 Nm
Version
Female socket, straight
접점 표면
Gold-plated

Electrical properties

Insulation resistance
108 Ω
Nennstrom
2 A (8-pole) / 1.5 A (12-pole)
Nominal voltage
30 V

General standards

Certificate no. (cULus)
E307231
Connector standard
IEC 61076-2-101

Standards

Standardní konektor
IEC 61076-2-101

Plug, left

Plug left
M12, A-coded, IP67, female contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
