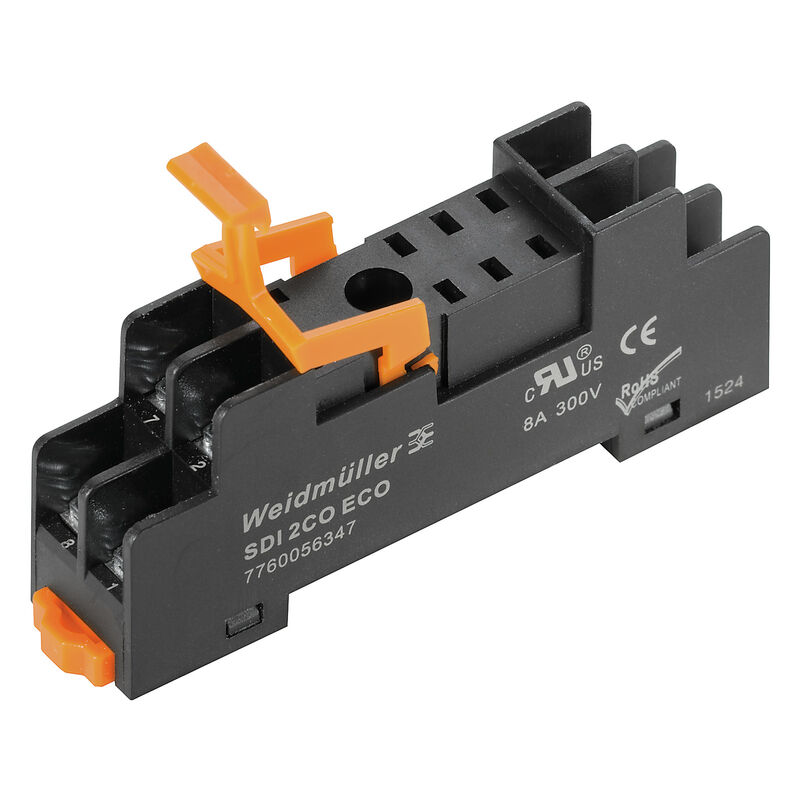

SDI 2CO ECO

D-SERIES DRI, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection

Item No. 7760056347

Properties

General ordering data

Version	D-SERIES DRI, Relay socket, Number of contacts: 2, CO contact, Continuous current: 8 A, Screw connection
Order No.	7760056347
Type	SDI 2CO ECO
GTIN (EAN)	6944169739941
Qty.	10 items

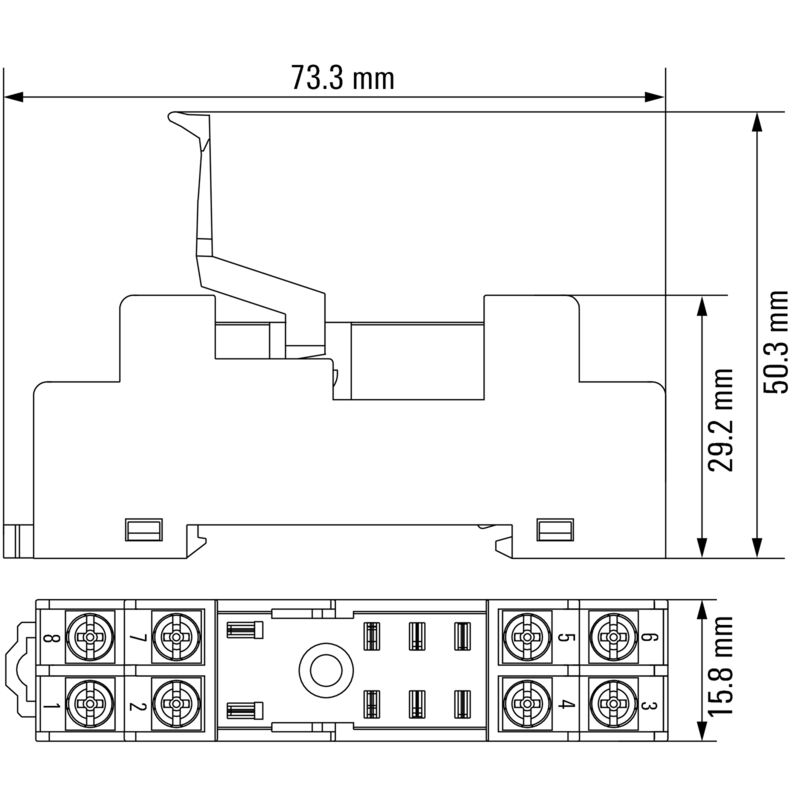

Dimensions and weights

Depth	29.2 mm
Depth (inches)	1.15 inch
Height	73.3 mm
Height (inches)	2.886 inch
Width	15.8 mm
Width (inches)	0.622 inch
Net weight	23 g

Temperatures

Storage temperature	-40 °C...85 °C
Operating temperature	-40 °C...70 °C
Humidity	35...85 % rel. humidity, no condensation

Environmental Product Compliance

RoHS Compliance Status	Compliant
REACH SVHC	No SVHC above 0.1 wt%

Load side

Rated switching voltage	250 V AC
Continuous current	8 A
Max. switching voltage, AC	250 V

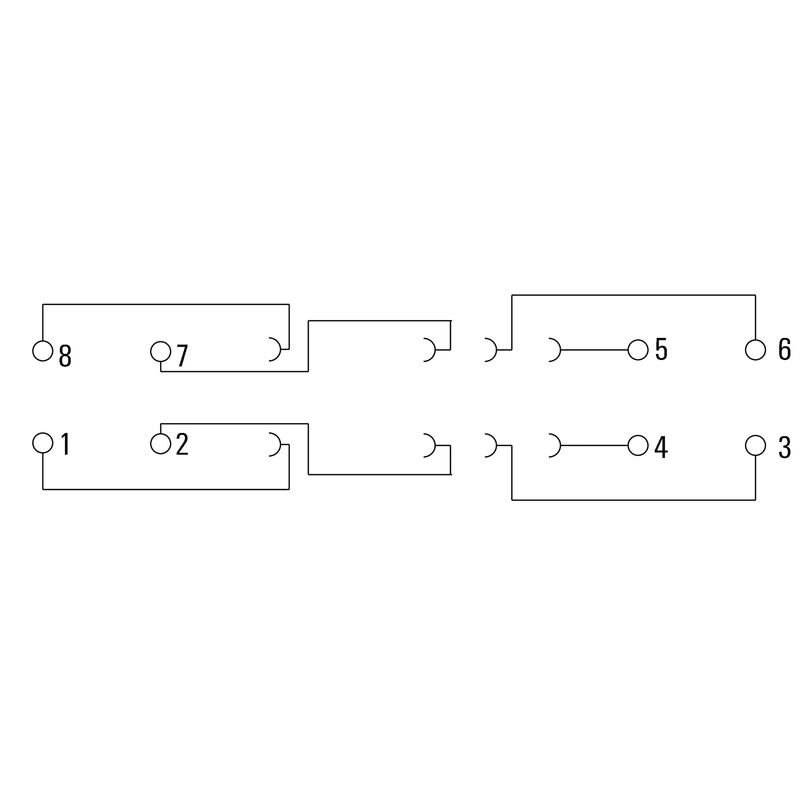

Contact type	2 CO contact

General data

Version	flat design
Rail	TS 35
Colour	black
UL94 flammability rating component	Component: Housing UL94 flammability rating: V-2 Component: Mounting foot UL94 flammability rating: HB Component: Retaining clip UL94 flammability rating: HB

Insulation coordination

Rated voltage	250 V
Pollution severity	2
Surge voltage category	III
Insulating material group	IIIb
Clearance and creepage distances for control side - load side	≥ 3 mm
Dielectric strength for control side - load side	4 kV_eff / 1 Min.
Dielectric strength of neighbouring contacts	2.5 kV_eff / 1 Min.
Impulse withstand voltage	4.8 kV (1.2/50 µs)
Protection degree	IP10

Connection data

Wire connection method	Screw connection
Stripping length, rated connection	8 mm
Tightening torque, min.	0.5 Nm
Tightening torque, max.	0.8 Nm
Clamping range, rated connection	1.5 mm²
Clamping range, min.	0.5 mm²
Clamping range, max.	2.5 mm²
Wire cross-section, solid, min.	0.5 mm²
Wire cross-section, solid, max.	2.5 mm²
Wire connection cross section, finely stranded, min.	0.5 mm²
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	1.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	0.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	1.5 mm²
Wire connection	M3 ring cable lug (insulated)
Blade size	size PH1

Important note

Product information

For this socket, a cross connection is not available.

For this socket, markers are not available.

Downloads

Approval/Certificate/Document of Conformity	[EU Konformitätserklärung / EU Declaration of Conformity](https://mdcop.weidmueller.com/mediadelivery/asset/900_35367)
Engineering Data	[CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_66558)
Eplan Data Portal	[Eplan data](https://dataportal.eplan.com/part-details/WEI.7760056347)
CADENAS eCATALOG	[CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=7760056347)
Catalogues	[Catalogues in PDF-format](LINK/Catalog.html)

Classifications

ETIM 6.0	EC001456
ETIM 7.0	EC001456
ETIM 8.0	EC001456
ETIM 9.0	EC001456
ECLASS 9.0	27-37-16-03
ECLASS 9.1	27-37-16-03
ECLASS 10.0	27-37-16-03
ECLASS 11.0	27-37-16-03
ECLASS 12.0	27-37-16-03
ECLASS 13.0	27-37-16-03
ECLASS 14.0	27-37-16-03

Approvals

Approvals	![CE](/picture/CE.gif)
ROHS	Conform

Accessories

ToolsScrewdriversUninsulated screwdrivers and setsCrosshead screwdriver Phillips

SDK PH1 X 80

Item No.:

2749410000

Packaging unit:

1 PC

Screwdriver, Blade width (B): 1 mm, 80 mm, Blade thickness (A):

Data sheet Downloads

ToolsCable lugs and ConnectorsInsulated connectorRing cable lugs

LIR 1,5M3 V

Item No.:

9200070000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1.5 mm²,0.5 mm² - 1.5 mm²

Data sheet Downloads

LIR 2,5M3 V

Item No.:

9200150000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²

Data sheet Downloads

ToolsScrewdriversVDE insulated screwdrivers and setsCrosshead screwdriver Phillips

SDIK PH1 X 80

Item No.:

2749890000

Packaging unit:

1 PC

Screwdriver, Blade width (B): 1 mm, 80 mm, Blade thickness (A): 1

Data sheet Downloads

ToolsScrewdriversVDE-insulated SlimLine screwdriverCrosshead screwdriver, Phillips

SDIK SLIM PH1 X 80

Item No.:

2749650000

Packaging unit:

1 PC

Screwdriver, Blade width (B): 1 mm, 80 mm, Blade thickness (A): 1

Data sheet Downloads

ToolsCable lugs and ConnectorsInsulated connectorCrimp cable lugs

KQI-M3/-2,5

Item No.:

1492250000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,2.5 mm²,1.5 mm² - 2.5 mm²

Data sheet Downloads

KQI-M3/-1

Item No.:

1492170000

Packaging unit:

100 PC

cable lug, terminal end,Insulated cable connector,1 mm²,0.5 mm² - 1 mm²

Data sheet Downloads

Is accessory of

Relay Modules & Solid-State RelaysUniversal rangeD-SERIESIndividual componentsDRI (16 mm width)Individual relays2 CO contactsStandard relay

DRI424048

Item No.:

7760056323

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 48 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424730

Item No.:

7760056327

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 230 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424110

Item No.:

7760056324

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 110 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424024

Item No.:

7760056322

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424524

Item No.:

7760056325

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424012

Item No.:

7760056321

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 12 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424615

Item No.:

7760056326

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 115 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

Relay Modules & Solid-State RelaysUniversal rangeD-SERIESIndividual componentsDRI (16 mm width)Individual relays2 CO contactsWith LED and free-wheel diode

DRI424024LD

Item No.:

7760056336

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424048LD

Item No.:

7760056337

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 48 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424012LD

Item No.:

7760056335

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 12 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424110LD

Item No.:

7760056338

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 110 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

Relay Modules & Solid-State RelaysUniversal rangeD-SERIESIndividual componentsDRI (16 mm width)Individual relays2 CO contactsWith LED, free-wheel diode and test button

DRI424024LTD

Item No.:

7760056340

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

DRI424012LTD

Item No.:

7760056339

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 12 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

DRI424048LTD

Item No.:

7760056341

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 48 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

DRI424110LTD

Item No.:

7760056342

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 110 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

Relay Modules & Solid-State RelaysUniversal rangeD-SERIESIndividual componentsDRI (16 mm width)Individual relays2 CO contactsWith LED

DRI424615L

Item No.:

7760056333

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 115 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424524L

Item No.:

7760056332

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424012L

Item No.:

7760056328

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 12 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424024L

Item No.:

7760056329

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424048L

Item No.:

7760056330

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 48 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424110L

Item No.:

7760056331

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 110 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424730L

Item No.:

7760056334

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 230 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

Relay Modules & Solid-State RelaysUniversal rangeD-SERIESIndividual componentsDRI (16 mm width)Individual relays2 CO contactsWith LED and test button

DRI424615LT

Item No.:

7760056344

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 115 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

DRI424730LT

Item No.:

7760056345

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 230 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

DRI424524LT

Item No.:

7760056343

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

Is counterpart of

Relay Modules & Solid-State RelaysUniversal rangeD-SERIESIndividual componentsDRI (16 mm width)Individual relays2 CO contactsStandard relay

DRI424615

Item No.:

7760056326

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 115 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424048

Item No.:

7760056323

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 48 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424110

Item No.:

7760056324

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 110 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424524

Item No.:

7760056325

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424012

Item No.:

7760056321

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 12 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424730

Item No.:

7760056327

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 230 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424024

Item No.:

7760056322

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

Relay Modules & Solid-State RelaysUniversal rangeD-SERIESIndividual componentsDRI (16 mm width)Individual relays2 CO contactsWith LED

DRI424024L

Item No.:

7760056329

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424615L

Item No.:

7760056333

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 115 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424730L

Item No.:

7760056334

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 230 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424524L

Item No.:

7760056332

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424048L

Item No.:

7760056330

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 48 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424012L

Item No.:

7760056328

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 12 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424110L

Item No.:

7760056331

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 110 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

Relay Modules & Solid-State RelaysUniversal rangeD-SERIESIndividual componentsDRI (16 mm width)Individual relays2 CO contactsWith LED, free-wheel diode and test button

DRI424012LTD

Item No.:

7760056339

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 12 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

DRI424048LTD

Item No.:

7760056341

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 48 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

DRI424024LTD

Item No.:

7760056340

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

DRI424110LTD

Item No.:

7760056342

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 110 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

Relay Modules & Solid-State RelaysUniversal rangeD-SERIESIndividual componentsDRI (16 mm width)Individual relays2 CO contactsWith LED and free-wheel diode

DRI424048LD

Item No.:

7760056337

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 48 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424024LD

Item No.:

7760056336

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424012LD

Item No.:

7760056335

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 12 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

DRI424110LD

Item No.:

7760056338

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 110 V DC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: No

Data sheet Downloads

Relay Modules & Solid-State RelaysUniversal rangeD-SERIESIndividual componentsDRI (16 mm width)Individual relays2 CO contactsWith LED and test button

DRI424730LT

Item No.:

7760056345

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 230 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

DRI424524LT

Item No.:

7760056343

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 24 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

DRI424615LT

Item No.:

7760056344

Packaging unit:

20 PC

D-SERIES DRI, Relay, Number of contacts: 2, CO contact AgSnO, Rated control voltage: 115 V AC, Continuous current: 5 A, Flat blade connections (2.5 mm x 0.5 mm), Test button available: Yes

Data sheet Downloads

Popular categories

Interesting links

Solutions

Connectivity

Electronics

Automation & Software

Workplace & Accessories

Assembly

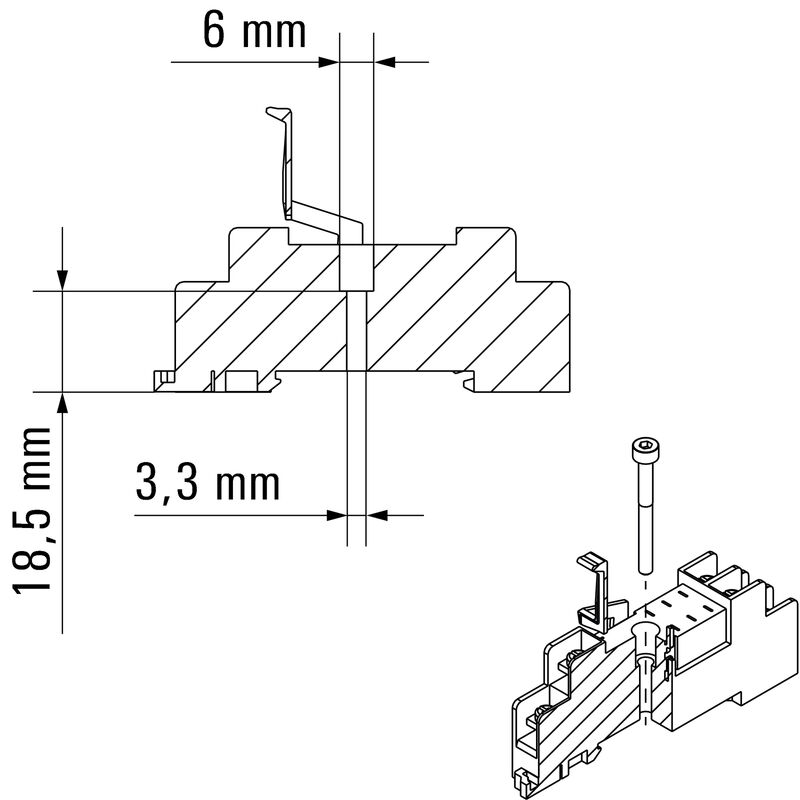

SDI 2CO ECO

Properties

Accessories

Is accessory of

Is counterpart of
