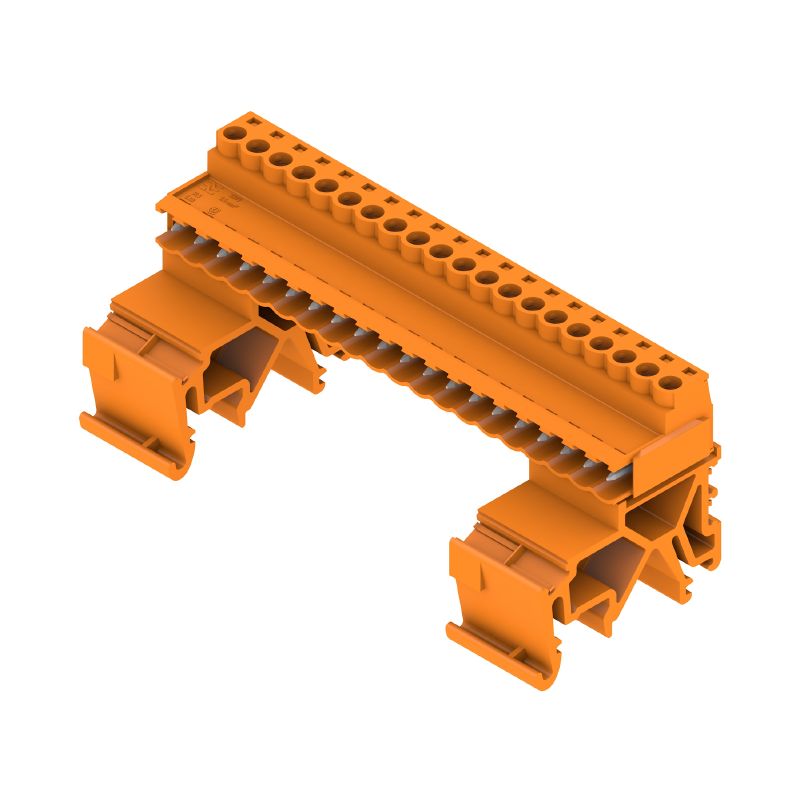

SLS 5.08/20/180TB KF SN OR BX
Product image
SLS 5.08/20/180TB KF SN OR BX
Product image
SLS 5.08/20/180TB KF SN OR BX
Dimensional drawing
SLS 5.08/20/180TB KF SN OR BX
Graph

SLS 5.08/20/180TB KF SN OR BX

PCB plug-in connector, male plug, 5.08 mm, Number of poles: 20, 180°, Clamping yoke connection, Clamping range, max. : 3.31 mm², Box

Tuotteen tunnus 1846190000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 6 On vastine kohteelle 14 Samankaltaiset tuotteet 8
Approvals General ordering data Dimensions and weights Environmental Product Compliance System Parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
PCB plug-in connector, male plug, 5.08 mm, Number of poles: 20, 180°, Clamping yoke connection, Clamping range, max. : 3.31 mm², Box
Order No.
1846190000
Type
SLS 5.08/20/180TB KF SN OR BX
GTIN (EAN)
4032248362479
Qty.
5 items
Product data
IEC: 400 V / 21.5 A / 0.2 - 2.5 mm²
UL: 300 V / 14 A / AWG 26 - AWG 12
Packaging
Box

Dimensions and weights

Depth
22,2 mm
Depth (inches)
0,874 inch
Height
15,3 mm
Height (inches)
0,602 inch
Net weight
46,992 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System Parameters

Product family
OMNIMATE Signal - series BL/SL 5.08
Type of connection
Field connection
Wire connection method
Clamping yoke connection
Pitch in mm (P)
5,08 mm
Pitch in inches (P)
0,2 "
Conductor outlet direction
180°
Number of poles
20
L1 in mm
96,52 mm
L1 in inches
3,8 "
Number of rows
1
Množství řady kolíků
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe plugged/ back-of-hand-safe unplugged
Berührungsschutz nach DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
when fully mounted
Durchgangswiderstand
≤5 mΩ
Stripping length
7 mm
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Plugging cycles
25
Tightening torque
  • Torque type:
    Wire connection
  • Usage information:
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,5 Nm

Material data

Materiales aislantes
PBT
Color
orange
Tabella dei colori (simile)
RAL 2000
Groupe de matériaux isolants
IIIa
Porównywalny wskaźnik śledzenia (CTI)
≥ 200
UL 94 flammability rating
V-0
접점 재질
Cu-alloy
Contact surface
tinned
Layer structure of plug contact
4...8 µm Sn hot-dip tinned
Storage temperature, min.
−40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
−50 °C
Operating temperature, max.
100 °C

Conductors suitable for connection

Sección de embornado, mín.
0,13 mm²
Sección de embornado, máx.
3,31 mm²
przekrój przyłącza przewodu AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 12
jednodrutowe, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
2,5 mm²
Stranded, min. H07V-R
0,2 mm²
Stranded, max. H07V-R
2,5 mm²
fintrådig, min. H05(07) V-K
0,2 mm²
fintrådig, max. H05(07) V-K
2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
2,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
2,5 mm²
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0372700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      2,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        7 mm
    • Recommended wire-end ferrule:
      0373000000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
Reference text
The outside diameter of the plastic collar should not be larger than the pitch (P)
Length of ferrules is to be chosen depending on the product and the rated voltage.

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
정격 전류, 극 수(Tu=20°C)
21,5 A
Prąd znamionowy, maks. liczba biegunów (Tu=20°C)
16 A
Névleges áram, min. pólusszám (Tu=40°C)
18 A
Courant nominal, nombre de pôles max. (Tu = 40 °C)
14 A
Номинальное импульсное напряжение при категории помехозащищенности/Категория загрязнения II/2
400 V
Märkspänning vid överspänningsk./Nedsmutsningsgrad III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
서지 전압 클래스 정격 임펄스 전압 / 오염 등급 III/3
4 kV

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
15 A
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12

Rated data acc. to UL 1059

Institute (UR)
UR
Certificate No. (UR)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
14 A
Nennstrom (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 26
Wire cross-section, AWG, max.
AWG 12
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
225 mm
VPE width
140 mm
VPE height
51 mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months
