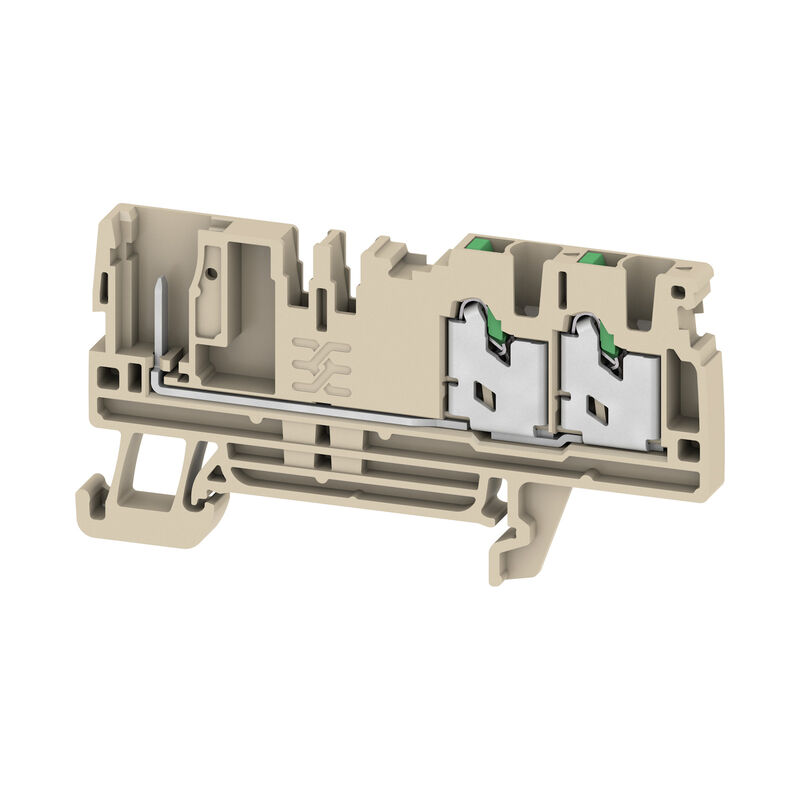

Pluggable terminal, SNAP IN, dark beige, 2.5 mm², 24 A, Number of connections: 3, Number of levels: 1, TS 35

Ürün No. 3051490000
Konfigüratörde aç
Veri sayfasını indir Mühendislik desteği Ürün İndirmleri
Aksesuarlar 110 İlgili ürünler 161
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductor embornable (conexión nominal) General Rating data UL névleges adatok Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Utförande
Pluggable terminal, SNAP IN, dark beige, 2.5 mm², 24 A, Number of connections: 3, Number of levels: 1, TS 35
Art.nr.
3051490000
Typ
SPGTB 2.5 FT 3C/1
GTIN (EAN)
4099987021531
Qty.
50 adet

Dimensions and weights

Djup
38 mm
Depth (inches)
1,496 inch
Höjd
71,5 mm
Height (inches)
2,815 inch
Bredd
5,1 mm
Width (inches)
0,201 inch
Peso neto
9,672 g

Temperatures

Continuous operating temp., min.
−60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Matériau de base
Wemid
컬러 코드
dark beige
Colour of operational elements
green
UL 94 flammability rating
V-0

System specifications

End cover plate required
Yes
Anzahl der Potentiale
1
Number of levels
1
Number of clamping points per level
2
Levels cross-connected internally
No
PE connection
No
Nosná lišta
TS 35
N-Funktion
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Snap-on
Yes
Type of mounting
TS 35
Вид крепления
Snap-on
개방측
right

Conductors for clamping (additional connection)

Anslutningstyp, ytterligare anslutning
pluggable

Conductor embornable (conexión nominal)

Anslutningsarea, flertrådig, max.
2,5 mm²
Anslutningsarea, flertrådig, min.
0,34 mm²
Anslutningsområde, max.
4 mm²
Anslutningsområde, min.
0,34 mm²
Anslutningsriktning
arriba
Anslutningstyp
SNAP IN
Antal anslutningar
3
Avisoleringslängd
10 mm
Klingmått
0.6 x 3.5 mm
Ledararea, entrådig, max.
2,5 mm²
Ledararea, entrådig, min.
0,34 mm²
Ledararea, fintrådig med ändhylsa DIN 46228/1, max.
2,5 mm²
Ledararea, fintrådig med ändhylsa DIN 46228/1, min.
0,34 mm²
Ledararea, fintrådig med ändhylsa DIN 46228/4, max.
2,5 mm²
Ledararea, fintrådig med ändhylsor DIN 46228/4, min.
0,34 mm²
Ledararea, fintrådig, min.
0,34 mm²
Ledardiameter, AWG, max
AWG 14
Ledardiameter, AWG, min.
AWG 22
Ledardiameter, fintrådig, max.
4 mm²
Tolkdorn enligt 60 947-1
A2

General

Ledardiameter, AWG, max
AWG 14
Ledardiameter, AWG, min.
AWG 22
Montageskena obestyckad
TS 35
Normer
IEC 60947-7-1

Rating data

Section nominale
2,5 mm²
Rated voltage
800 V
Tension nominale DC
800 V
Nominal current
24 A
Current at maximum wires
24 A
Standardy
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0,77 mW
Pollution severity
3
Surge voltage category
III

UL névleges adatok

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
22 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
22 AWG
Current size B (cURus)
20 A
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Tensión Gr C (cURus)
600 V
Voltage size B (cURus)
600 V
Voltage size D (cURus)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-17
ECLASS 15.0
27-25-01-17
