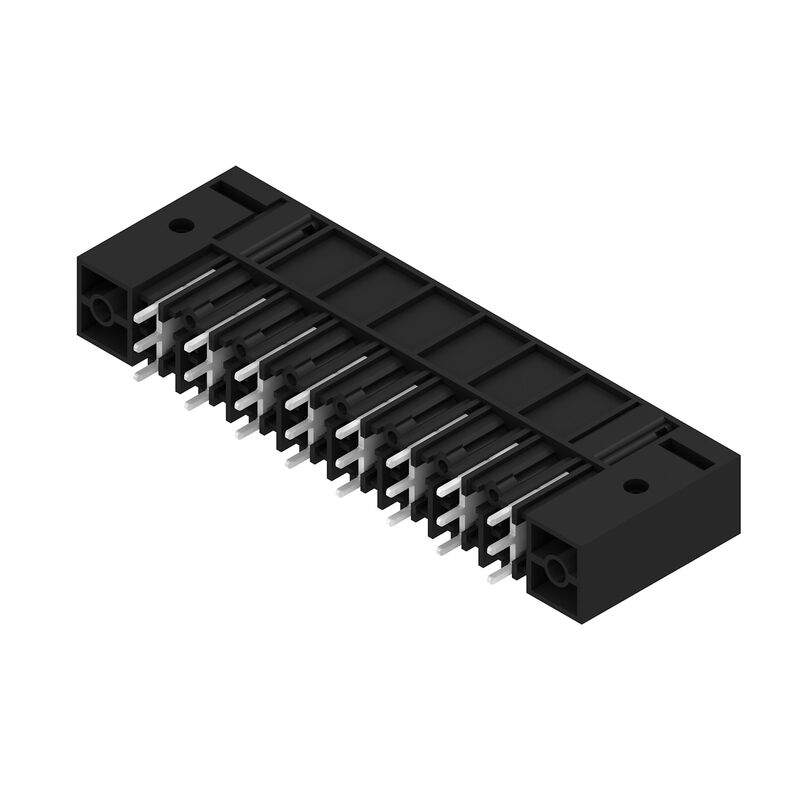

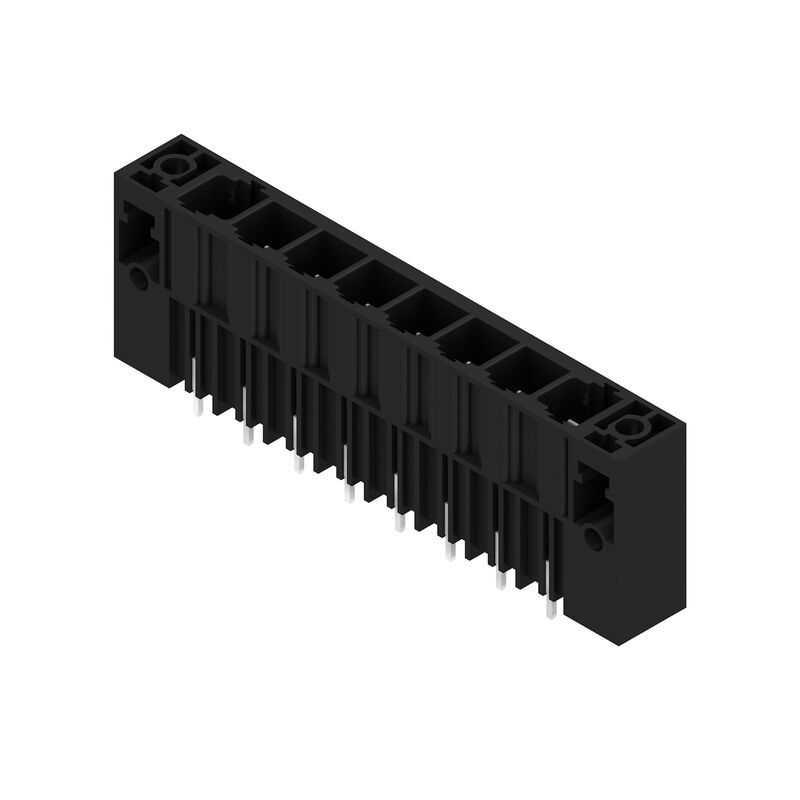

PCB plug-in connector, male header, Clip-on flange, THT solder connection, 10.16 mm, Number of poles: 8, 180°, Solder pin length (l): 3.5 mm, silver-plated, black, Box

Tuotteen tunnus 1813710000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 2 On vastine kohteelle 1 Samankaltaiset tuotteet 16
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male header, Clip-on flange, THT solder connection, 10.16 mm, Number of poles: 8, 180°, Solder pin length (l): 3.5 mm, silver-plated, black, Box
Order No.
1813710000
Type
SU 10.16HP/08/180F 3.5AG BK BX
GTIN (EAN)
4032248297931
Qty.
18  items
Product data
IEC: 1000 V / 78.3 A
UL: 300 V / 60 A
Packaging
Box

Dimensions and weights

Net weight
42,25  g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Power - series BU/SU 10.16HP
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
10,16  mm
Pitch in inches (P)
0,4  "
Outgoing elbow
180°
Number of poles
8
Number of solder pins per pole
3
Solder pin length (l)
3,5  mm
Solder pin length tolerance
+0.1 / -0.3 mm
Solder pin dimensions
1.2 x 1.1 mm
Solder pin dimensions = d tolerance
+0.1 / -0.1 mm
Solder eyelet hole diameter (D)
1,6  mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
71,12  mm
L1 in inches
2,8  "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
Safe from finger touch, plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged
Volume resistance
2.00 mΩ
Can be coded
Yes
Tightening torque
  • Torque type:
    Mounting screw, PCB
  • Usage information:
    • Thickness:
      • min.:
        1,44 mm
      • max.:
        1,76 mm
    • Tightening torque:
      • min.:
        0,25 Nm
      • max.:
        0,3 Nm
    • Recommended screw:
      • Part number:
        2812340000
    • Thickness:
      • min.:
        2,88 mm
      • max.:
        3,52 mm
    • Tightening torque:
      • min.:
        0,2 Nm
      • max.:
        0,25 Nm
    • Recommended screw:
      • Part number:
        2812340000
    • Thickness:
      • min.:
        1,44 mm
      • max.:
        3,52 mm
    • Tightening torque:
      • min.:
        0,8 Nm
      • max.:
        0,9 Nm
    • Recommended screw:
      • Part number:
        2812290000

Material data

Insulating material
PBT GF
Colour
black
Colour chart (similar)
RAL 9011
Insulating material group
IIIa
Comparative Tracking Index (CTI)
≥ 200
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
silver-plated
Layer structure of solder connection
≥ 3 µm Ag
Layer structure of plug contact
≥ 3 µm Ag
Storage temperature, min.
−40  °C
Storage temperature, max.
70  °C
Operating temperature, min.
−50  °C
Operating temperature, max.
120  °C
Temperature range, installation, min.
−25  °C
Temperature range, installation, max.
120  °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
78,3  A
Rated current, max. number of poles (Tu=20°C)
67,9  A
Rated current, min. number of poles (Tu=40°C)
70,6  A
Rated current, max. number of poles (Tu=40°C)
61,3  A
Rated voltage for surge voltage class / pollution degree II/2
1 000  V
Rated voltage for surge voltage class / pollution degree III/2
1 000  V
Rated voltage for surge voltage class / pollution degree III/3
690  V
Rated impulse voltage for surge voltage class/ pollution degree II/2
6  kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
8  kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
8  kV
Short-time withstand current resistance
3 x 1s mit 1000 A
Clearance, min.
8,9  mm
Creepage distance, min.
10,5  mm

Rated data acc. to CSA

Rated voltage (Use group B / CSA)
300  V
Rated voltage (Use group C / CSA)
300  V
Rated voltage (Use group D / CSA)
600  V
Rated current (Use group B / CSA)
60  A
Rated current (Use group C / CSA)
60  A
Rated current (Use group D / CSA)
5  A

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300  V
Rated voltage (Use group C / UL 1059)
300  V
Rated voltage (Use group D / UL 1059)
600  V
Rated current (Use group B / UL 1059)
60  A
Rated current (Use group C / UL 1059)
60  A
Rated current (Use group D / UL 1059)
5  A
Clearance distance, min.
8,9  mm
Creepage distance, min.
10,5  mm
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
353  mm
VPE width
135  mm
VPE height
48  mm

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Additional variants on request
  • Rated current related to rated cross-section & min. No. of poles.
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • For all applications with flange we recommend to fix the pin header with the help of the soldering flange or a self-tapping screw on the board.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 6.0
EC002637
ETIM 7.0
EC002637
ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 9.0
27-44-04-02
ECLASS 9.1
27-44-04-02
ECLASS 10.0
27-44-04-02
ECLASS 11.0
27-46-02-01
ECLASS 12.0
27-46-02-01
ECLASS 13.0
27-46-02-01
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
