BVF 7.62HP SH180 4-6 KIT
Product image
BVF 7.62HP SH180 4-6 KIT

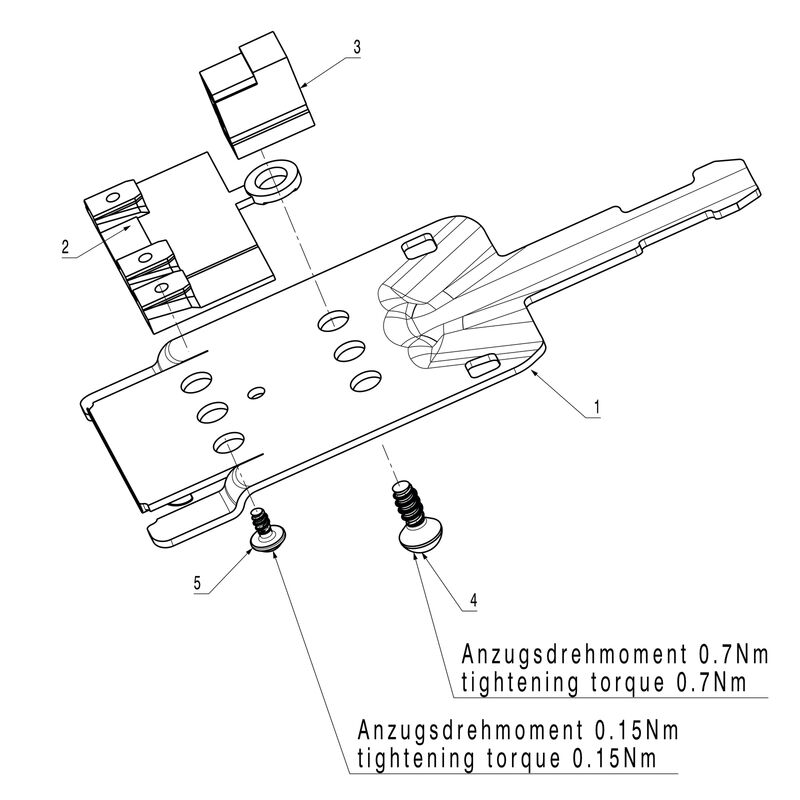

Dimensional drawing

BVF 7.62HP SH180 4-6 KIT

PCB plug-in connector, Accessories, For a shield connection, black, Number of poles: 0

Produkt ID 1118470000
Download datablad Engineering-support Produktdownloads
Er tilbehør til 117 Anvendte produkter 3
Approvals General ordering data Dimensions and weights Environmental Product Compliance Datos del material Bemessungsdaten nach IEC Packing Note importante Classifications

Approvals

ROHS
Conform

General ordering data

Version
PCB plug-in connector, Accessories, For a shield connection, black, Number of poles: 0
Order No.
1118470000
Type
BVF 7.62HP SH180 4-6 KIT
GTIN (EAN)
4032248899456
Qty.
25 Styk
Product data

Packaging
Box

Dimensions and weights

Net weight
18,762 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Datos del material

Colour
negro
Barevný graf (podobné)
RAL 9011
Contact material
Cu-alloy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Bemessungsdaten nach IEC

geprüft nach Norm
IEC 60664-1
IEC 61984

Packing

Packaging
Box
VPE length
178 mm
VPE width
101 mm
VPE height
57 mm

Note importante

IPC conformity
A termékek fejlesztése, gyártása és szállítása a nemzetközileg elismert IPC-A-610 szabvány „megengedhető” kategóriája szerint történt. A termékekkel kapcsolatos további követelményeket kérésre kiértékeljük.
Notes
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-46-04-05
ECLASS 15.0
27-46-04-05
