CH20M45 B SIM BK/BK 2010

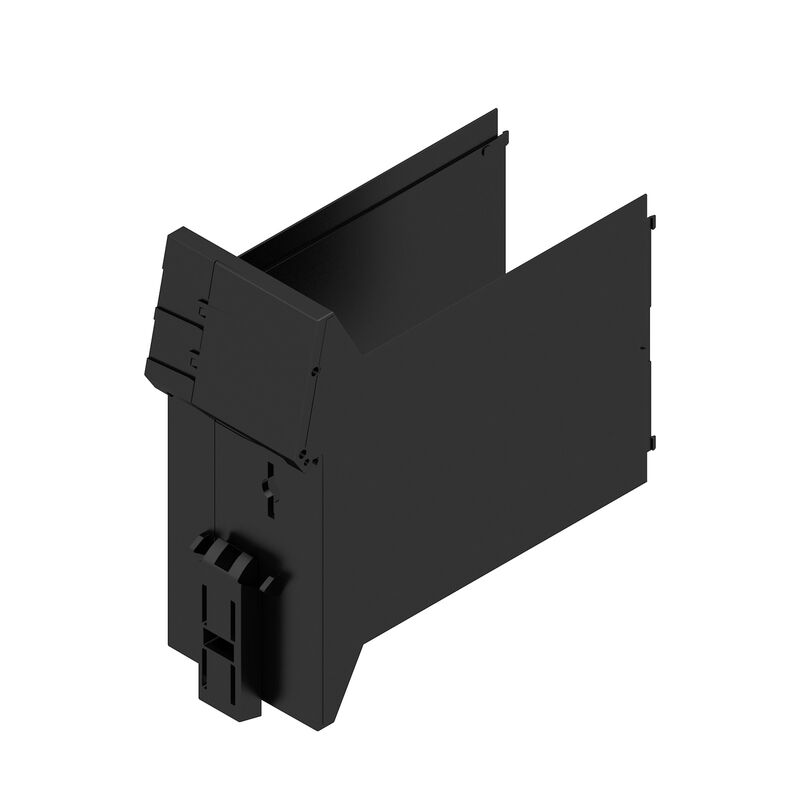

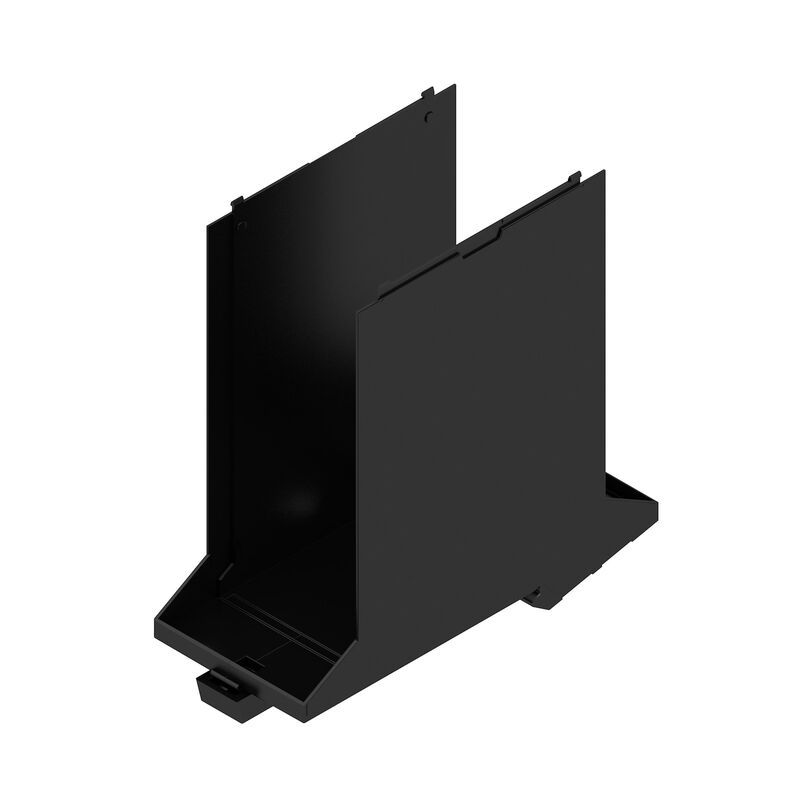

Product image
CH20M45 B SIM BK/BK 2010

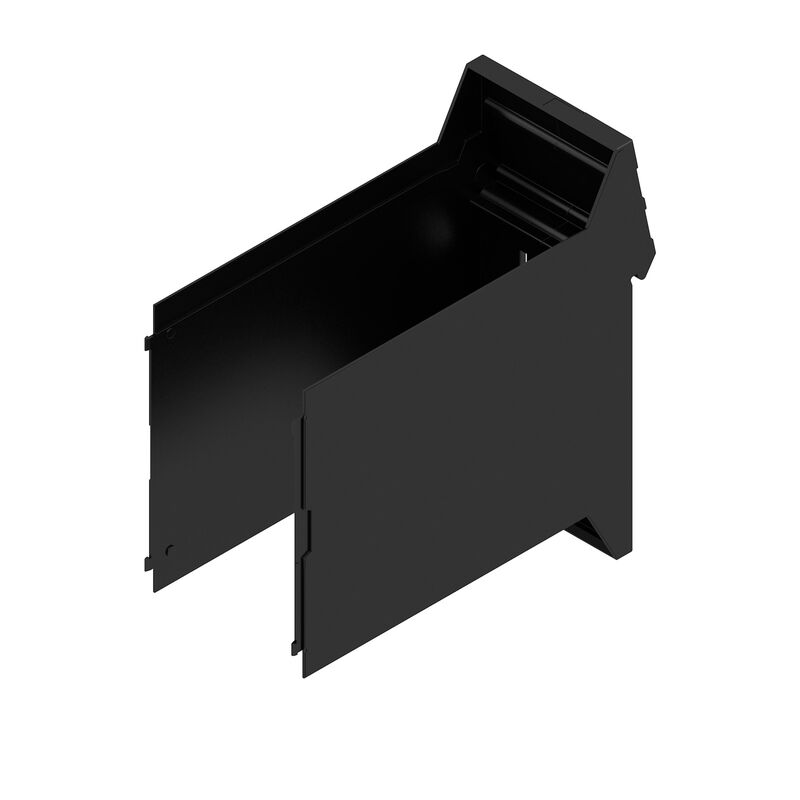

Product image
CH20M45 B SIM BK/BK 2010
Product benefits
Basiselement einschließlich SIM-Ausschnitt
CH20M45 B SIM BK/BK 2010

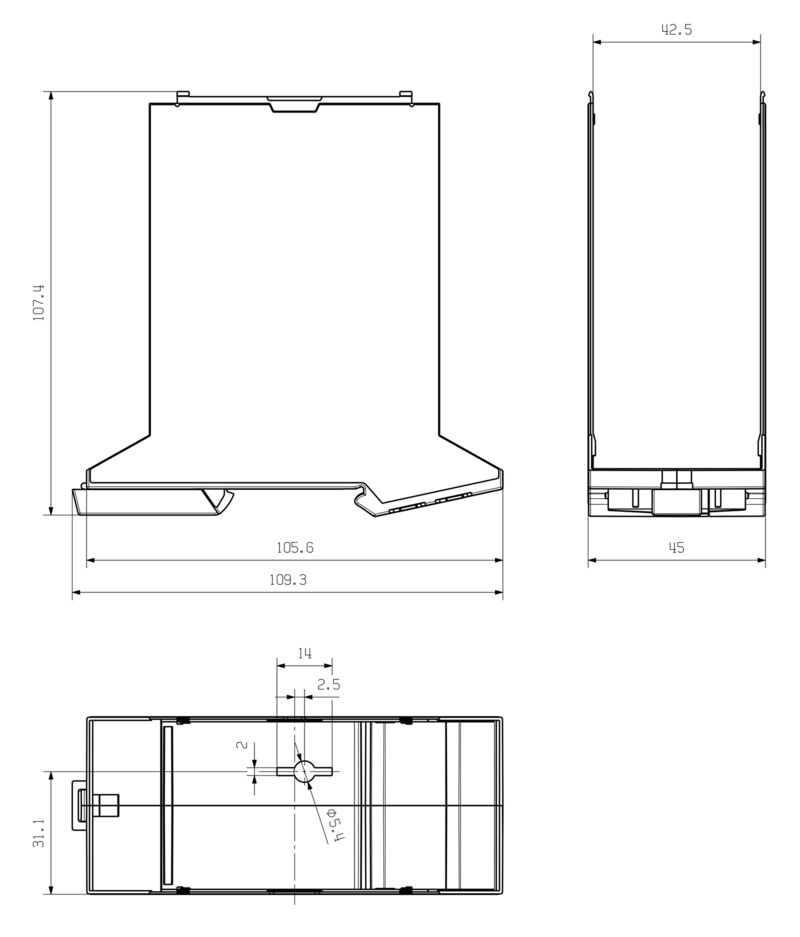

Dimensioned drawing

CH20M45 B SIM BK/BK 2010

Custodia del binario di montaggio, OMNIMATE Housing - Serie CH20M nero, Elemento laterale, preparazione connessione micro-SIM card (3FF), Larghezza: 45 mm

Produkt ID 2738670000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Anvendte produkter 5
Approvals Dati generali per l’ordinazione Rozměry a hmotnosti Temperature Conformité environnementale du produit Material data General data Assembly properties Mechanical tests Thermal tests Komponens tulajdonságok Design - IN requirements Individualization options Indicación importante Классификации

Approvals

ROHS
Conform

Dati generali per l’ordinazione

Version
Custodia del binario di montaggio, OMNIMATE Housing - Serie CH20M nero, Elemento laterale, preparazione connessione micro-SIM card (3FF), Larghezza: 45 mm
Order No.
2738670000
Type
CH20M45 B SIM BK/BK 2010
GTIN (EAN)
4064675064091
Qty.
6 Styk

Rozměry a hmotnosti

Depth
108 mm
Profondità (pollici)
4.252 inch
Height
109.3 mm
Высота (в дюймах)
4.303 inch
Width
45 mm
Width (inches)
1.772 inch
Net weight
36.534 g

Temperature

Ambient temperature
-25 °C…85 °C
Operating temperature range
-40...120 ℃
Humidity
5 - 93% rel. humidity, Tu = 40°C, no condensation

Conformité environnementale du produit

RoHS Compliance Status
Megfelel, kivétel nélkül
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Plastic
Comparative Tracking Index (CTI)
600 ≤ CTI
Insulating material
PA 66 GF 30
Insulating material group
I
Surface finish
untreated
UL 94 flammability rating
V-0

General data

Barevný
černá
Farbtabelle (ähnlich)
RAL 9011
Nosná lišta
TS 35
Stupeň krytí
IP20 in installed state
Vergießbarkeit
No

Assembly properties

Number of slots for female connectors of the mounted assembly, max.
12
Number of PCBs, max.
2
Number of connection levels, max.
3
Number of poles, max.
48
Height of components on the PCB (usage of 1 PCB), max.
38.6 mm
Height of components on the PCB (usage of 2 PCB), max.
34.7 mm
Type of assembly of the PCB
double-sided

Mechanical tests

According to Standard
DIN EN 61373:1999 (nárazy a vibrace)
Test conditions
5 последовательно установленных корпусов
Доп. вес 200 г на каждую печатную плату
2 установленные печатные платы
Proved axles
X
Y
Z
Shock test
  • General test advices:
    All mechanical tests were tested on examplary setup, or in view of depending regulation. The specified results do not replace approval relevant tests. They are just orientation values.
  • Test category:
    1
  • Number of shocks per axle:
    3 in positive and negative direction
  • Shock duration:
    30 ms
  • Acceleration horizontal:
    30 m/s²
  • Acceleration vertical:
    30 m/s²
  • Acceleration longitudinal:
    50 m/s²
振動試験
  • Test category:
    1B
  • Test duration:
    5 hours per axle
  • Effective acceleration:
    7.9 m/s²

Thermal tests

Thermal tests
  • General test advices:
    All thermal tests were tested on examplary setup, or in view of depending regulation. The specified results do not replace approval relevant tests. They are just orientation values.
  • Test conditions:
    seven housings installed in a row - no spacing
  • Test axles:
    horizontal
  • Ambient temperature:
    55 °C
  • Power dissapation, max.:
    4.2 W
  • Ambient temperature:
    50 °C
  • Power dissapation, max.:
    4.8 W
  • Ambient temperature:
    40 °C
  • Power dissapation, max.:
    5.9 W
  • Ambient temperature:
    20 °C
  • Power dissapation, max.:
    8.25 W

Komponens tulajdonságok

Color of clip-on foot
검정
Cut out in clip-on foot area as preperation for
Micro SIM-kort (3FF)
Number of connection levels, max.
3

Design - IN requirements

PCB thickness
1.6 mm
Tolerance of circuit board thickness
±0.15 mm
Сертификат на очертания печатной платы
±0.1 mm

Individualization options

Behandlingsmöjligheter
Laser processing
Customer specific labelling possible
Да
Warianty kolorystyczne
More on request
고객 특정적 주문 절차
See guideline under downloads

Indicación importante

Product information
Le contour du circuit imprimé, les zones restreintes et d'autres informations relatives à la conception du circuit imprimé se trouvent dans la catégorie technologie de connexion sous les connecteurs mâles correspondants dans les téléchargements.

Классификации

ETIM 8.0
EC001031
ETIM 9.0
EC001031
ETIM 10.0
EC001031
ECLASS 14.0
27-19-06-01
ECLASS 15.0
27-19-06-01
