HDC 06B AS ATEX
HDC 06B AS ATEX

HDC 06B AS ATEX

HDC enclosures, Installation size: 3, Protection degree: Back: IP20, Bulkhead housing, Clamping yoke connection, Standard

Item No. 3139900000
Download data sheet Product Downloads
Accessories 4 Is accessory of 3 Related products 4
Approvals General ordering data Dimensions and weights Temperatures Rating data IECEx/ATEX Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)

General ordering data

Version
HDC enclosures, Installation size: 3, Protection degree: Back: IP20, Bulkhead housing, Clamping yoke connection, Standard
Order No.
3139900000
Type
HDC 06B AS ATEX
GTIN (EAN)
4099987382267
Qty.
1  items

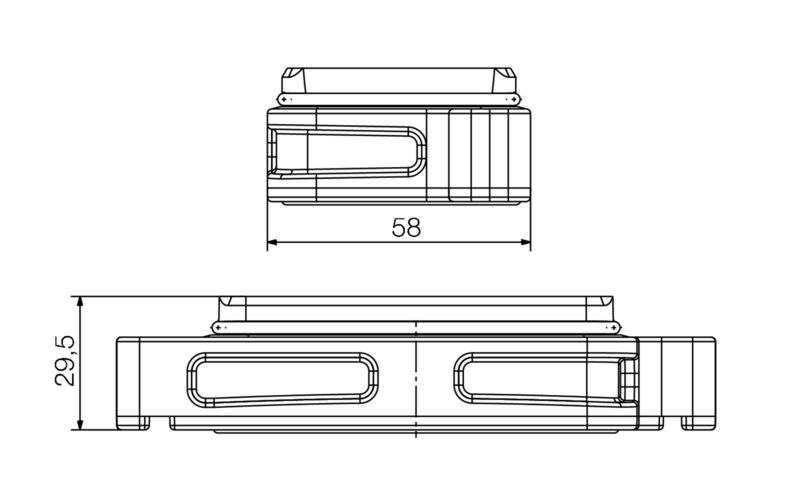

Dimensions and weights

Height
30  mm
Height (inches)
1.181  inch
Width
58  mm
Width (inches)
2.283  inch
Mounting dimension - height
32  mm
Mounting dimension - width
70  mm
Net weight
141.68  g

Temperatures

Limit temperature
-20 °C ... 80 °C

Rating data IECEx/ATEX

Certificate No. (ATEX)
IECEXTUR24.0077X
Certificate No. (IECEX)
TUEV24ATEX9197X

Classifications

ETIM 6.0
EC000437
ETIM 7.0
EC000437
ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 9.0
27-44-02-02
ECLASS 9.1
27-44-02-02
ECLASS 10.0
27-44-02-02
ECLASS 11.0
27-44-02-02
ECLASS 12.0
27-44-02-02
ECLASS 13.0
27-44-02-02
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
