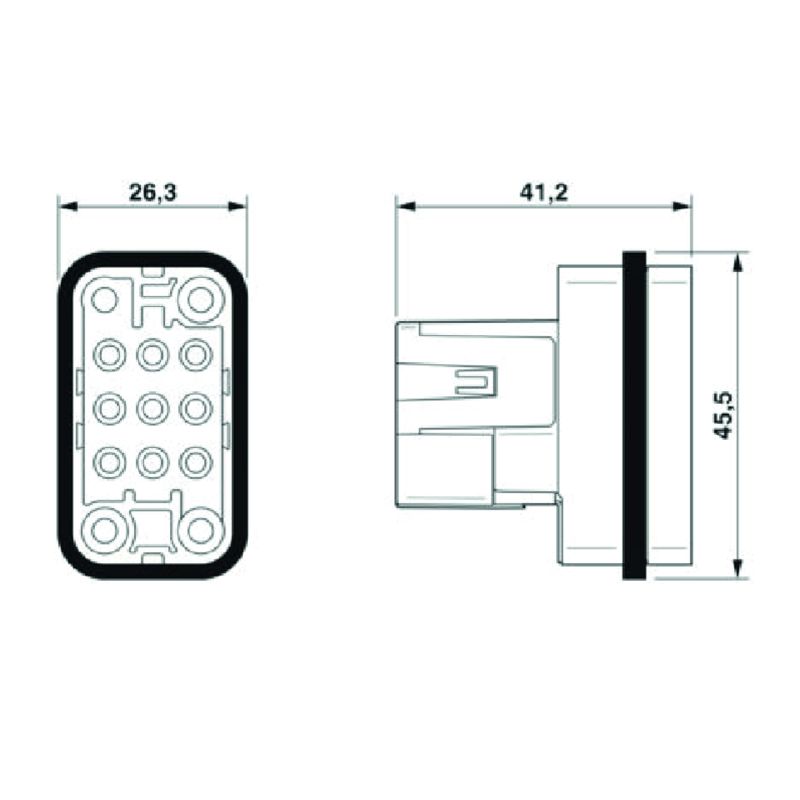

Drawing
HDC HQ 8 MP
Derating curve

HDC HQ 8 MP

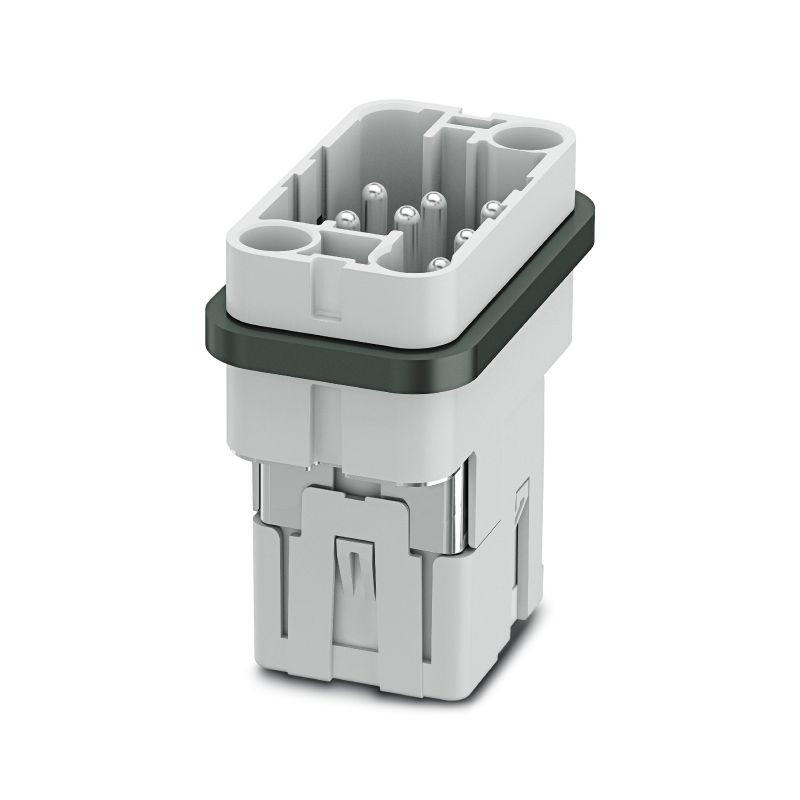

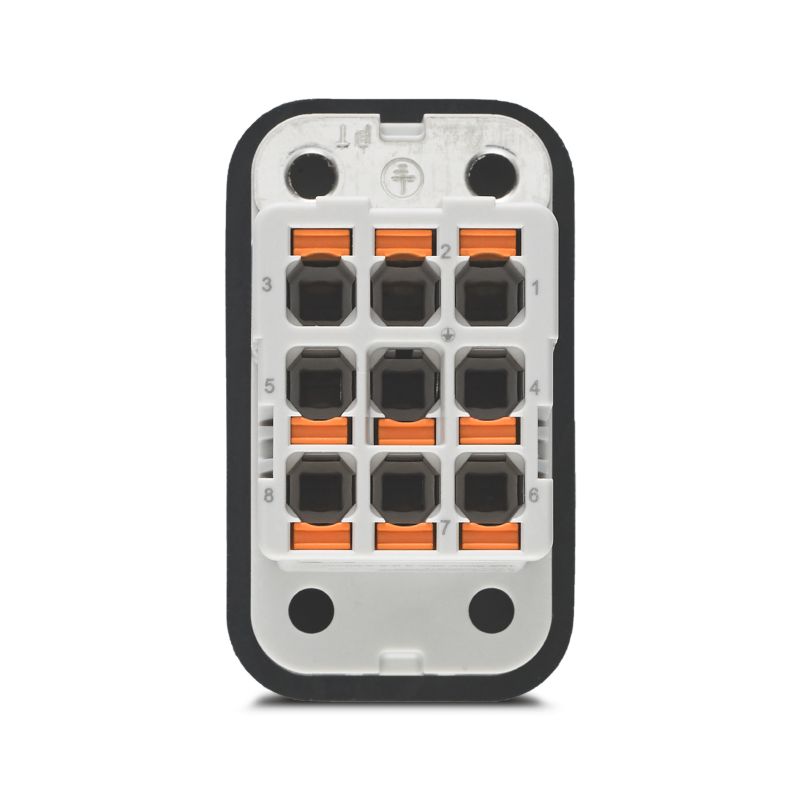

HDC insert, Male, 500 V, 16 A, Number of poles: 8, PUSH IN with actuator, Installation size: HQ

Product ID 2937360000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Toebehoren 7 Is accessoire van 4 Verwante producten 2
Approvals General ordering data Dimensions and weights Environmental Product Compliance Dimensions General data Connection data PE Power contact Version Classifications

Approvals

인증
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E310075

General ordering data

Versión
HDC insert, Male, 500 V, 16 A, Number of poles: 8, PUSH IN with actuator, Installation size: HQ
Заказ №
2937360000
Type
HDC HQ 8 MP
GTIN (EAN)
4099986694132
Qty.
1 items

Dimensions and weights

Profundidad
41,2 mm
Depth (inches)
1,622 inch
Высота
45,5 mm
Height (inches)
1,791 inch
Width
26,3 mm
Width (inches)
1,035 inch
Longueur
2,5 mm
Length (inches)
0,098 inch
Diameter
2,5 mm
Net weight
38 g

Environmental Product Compliance

RoHS 준수 상태
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dimensions

Width
26,3 mm

General data

Basic material
Copper alloy
BG
HQ
Colour
Light Grey
Installation size
HQ
Insulating material
PC
Number of poles
8
Number of power contacts
8
Number of signal contacts
0
Plugging cycles, gold
≥ 500
Plugging cycles, silver
≥ 500
Pollution severity
3
Rated current (DIN EN 61984)
16 A
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage (DIN EN 61984)
500 V
Series
HQ
Surface finish
Silver passivated
Surge voltage category
III
Type
Male
Type of connection
PUSH IN with actuator
UL 94 flammability rating
V-0

Connection data PE

Connection type PE
Miscellaneous

Power contact

Rated voltage (DIN EN 61984), power contact
500 V

Version

Basic material
Copper alloy
BG
HQ
Conductor cross-section, max.
2,5 mm²
Conductor cross-section, min.
0,5 mm²
Installation size
HQ
Surface finish
Silver passivated
Type of connection
PUSH IN with actuator

Classifications

ETIM 8.0
EC000438
ETIM 9.0
EC000438
ETIM 10.0
EC000438
ECLASS 14.0
27-44-02-05
ECLASS 15.0
27-44-02-05
