RCMA-B22-D70-4.5

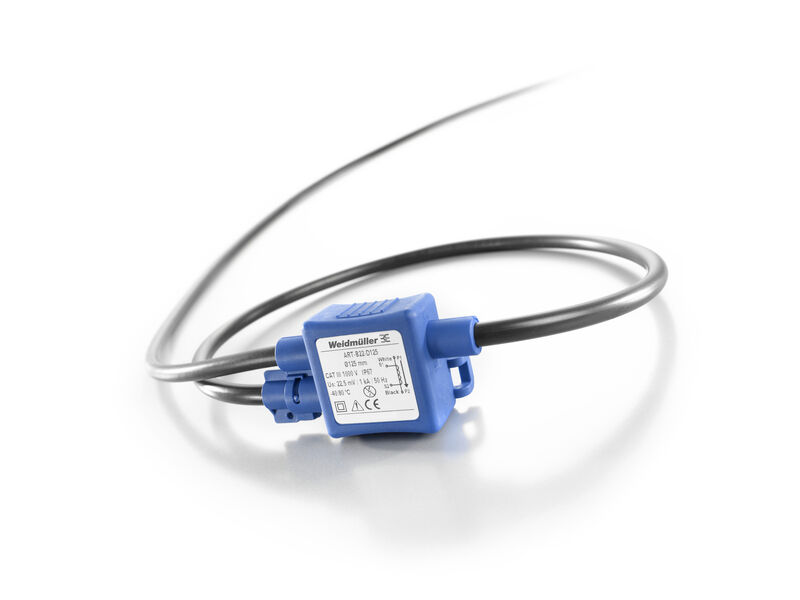

Rogowski coil, Diameter: 70 mm, Cable length: 4.5 m, 100…5000 A, Output : Pulse, mV signal

Item No. 2593340000
Download data sheet Product Downloads
Accessories 2 Is accessory of 3 Related products 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions of live conductors Electrical attributes Technical properties Вход 일반 데이터 Insulation coordination Part description Classifications

Approvals

Homologaciones
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E469563

General ordering data

Versión
Rogowski coil, Diameter: 70 mm, Cable length: 4.5 m, 100…5000 A, Output : Pulse, mV signal
Código
2593340000
Tipo
RCMA-B22-D70-4.5
GTIN (EAN)
4050118647761
Qty.
1 items

Dimensions and weights

Diámetro
70 mm
Net weight
260 g

Temperatures

Temperatura de almacenamiento
-40 °C...80 °C
Temperatura de servicio
-40 °C...80 °C
Humedad a temperatura de servicio
5 - 90 %, no condensation

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Dimensions of live conductors

Tipo di cavo
Conductor rail
Round conductor
Non-insulated conductors
Conduttore tondo
70 mm

Electrical attributes

Banda di frequenza
50...60 Hz
Clase de exactitud
0,5
Corrente primaria
5.000 A
Déphasage
0.004 °
Ratio nominal de giro
44,44 kA/V
Tensione secondaria
22,5 mV (@ 50Hz Iprimary = 1 kA)
30 V (max)

Technical properties

Diámetros de cable
6.1 mm
Longitud de cable
4,5 m
Resistencia inductiva
56 Ω
Tipo de protección
IP57

Вход

Banda de frecuencia
50...60 Hz

일반 데이터

Alineamiento
błąd nieliniowości
Configuración
none
Norma
IEC 61010-1: 2010
IEC 61869-1: 2007
IEC 61869-2: 2012
IEC 61869-6: 2016
IEC 61869-10: 2017
UL 61010-1
Tipo de protección
IP57

Insulation coordination

Categoría de sobretensión
III
Clase de exactitud
0,5
Grado de polución
2
Norma
IEC 61010-1: 2010
IEC 61869-1: 2007
IEC 61869-2: 2012
IEC 61869-6: 2016
IEC 61869-10: 2017
UL 61010-1
Resistencia a las corrientes parásitas (CTI)
600
Sobretensión de choque fijo
12.8 kV (1.2/50 ms)
Tensión de aislamiento
7.4 kVRMS(50 Hz, 1 min)
Tensión de aislamiento nominal
1000V reinforced insulation according to IEC 61010-1, CAT III, PD2
1000V basic insulation according to IEC 61010-1, CAT IV, PD2
600V reinforced insulation in accordance with IEC 61010-1, CAT IV, PD2

Part description

Descripción del producto
The Rogowski coil RCMA-B22-DXX is intended for the electronic measurement of alternating current.
The Rogowski coil must only be used in conjunction with a Weidmüller transducer RCMC-5000-XX.

Functional description
The primary circuit (power circuit) and the secondary circuit (measurement circuit) are galvanically isolated by the Rogowski coil.
As there is no saturation effect, currents can be measured over a wide primary current range without any losses in accuracy.

Features
  • Conductor diameter of the measuring coil: 6.1 mm

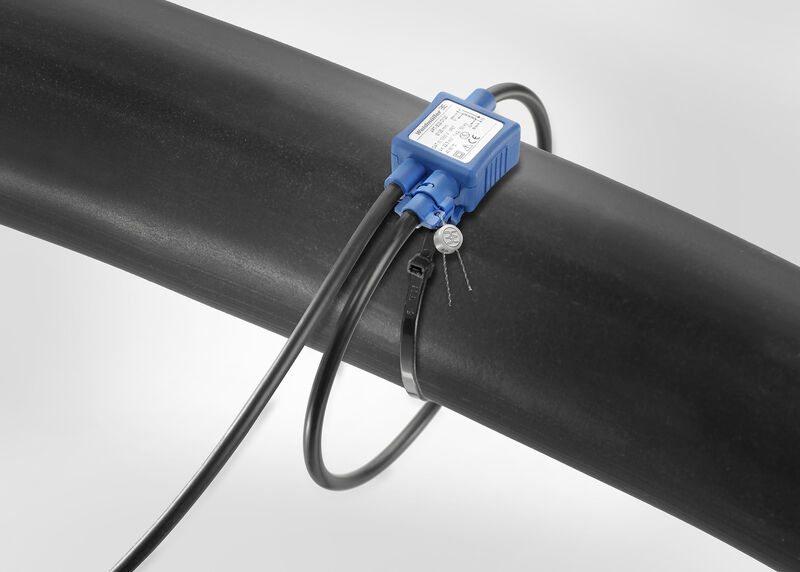

  • Housing tabs for attachment with cable ties
  • Sealable bayonet fastening


Classifications

ETIM 8.0
EC002475
ETIM 9.0
EC002475
ETIM 10.0
EC002475
ECLASS 14.0
27-21-01-23
ECLASS 15.0
27-21-01-23
