SAIL-M12GM8G-3-4.6U
SAIL-M12GM8G-3-4.6U
Pole scheme
Male
SAIL-M12GM8G-3-4.6U
Pole scheme
Socket
SAIL-M12GM8G-3-4.6U
Wiring diagram
Schaltbild

SAIL-M12GM8G-3-4.6U

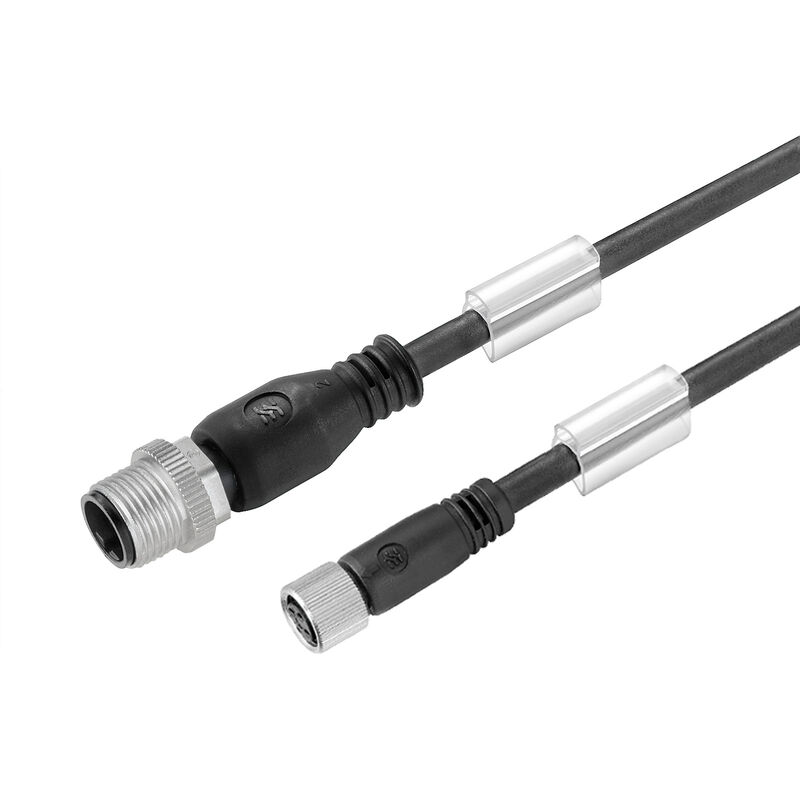

Sensor/actuator line, Connecting line, M12 / M8, Number of poles : 3, 4.6 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Item No. 9457770460
Download data sheet Engineering Support Product Downloads
Related products 27
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties Plug, left Plug, right Product images Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, Connecting line, M12 / M8, Number of poles : 3, 4.6 m, pin, straight - socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
9457770460
Type
SAIL-M12GM8G-3-4.6U
GTIN (EAN)
4050118627060
Qty.
1 items

Dimensions and weights

Diameter
3,6 mm
Net weight
95,04 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
1c533b66-fcff-4da5-b89f-fd55fbf5cb55

Technical specifications for cable

Ader nach UL AWM style
10493 (80 °C / 300 V)
Aderquerschnitt
0,25 mm²
Beidraht integriert
No
Bending cycles at torsion
> 5 Mio.
Beschleunigung
5 m/s²
Biegeradius min., bewegt
10 x cable diameter
Biegeradius, min., fest verlegt
5 x cable diameter
Biegezyklen
5 Mio
Campo delle temperature, posa fissa
-50...80 °C
Colour coding
brown
blue
black
Csavarási ellenállás
180 °/m
Flammwidrigkeit
in accordance with IEC 60332-2-2
In accordance with UL1581 UL / CUL FT2
Geschirmt
No
Geschwindigkeit
3,33 m/s
Halogene
No
Hydrolyse- und mikrobenbeständig
Yes
Isolation
PP
Kabellänge
4,6 m
Konfigurierbare Kabellänge
No
Mantel nach UL AWM style
20549 (80 °C / 300 V)
Mantelfarbe
black (similar to RAL 9005)
Mantelmaterial
PUR
Schleppkettentauglichkeit
Yes
Schweißfunkenbeständigkeit
No
Strahlenvernetzt
No
Ölbeständigkeit
Yes
Диапазон температур, движущ.
-25...60 °C
Длина скручивания
1 m
Количество контактов
3
Наружный диаметр
3.6 mm + 0.15 mm
용접 비드 내성
No

General technical data

Connection thread
M12 / M8
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
LED
No
Nominal current
4 A
Nominal voltage
60 V
Plugging cycles
≥ 100
Pollution severity
3
Protection degree
IP69
IP65
IP66
Temperature range of housing
-25…+85 °C
Threaded ring material
Brass, nickel-plated
Diecast zinc
Version
pin, straight - socket, straight

Electrical properties

Isolationsmotstånd
108 Ω
Nominell spänning
60 V

Plug, left

Plug left
M12, A-coded, IP69, male contact, straight, Plastic, unshielded

Plug, right

Plug right
M8, IP69, female contact, straight, Plastic, LED, unshielded

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
