SL-SMT 5.08HC/23/180LF 3.2SN BK BX
Product image
SL-SMT 5.08HC/23/180LF 3.2SN BK BX
Product image
SL-SMT 5.08HC/23/180LF 3.2SN BK BX
Dimensional drawing
SL-SMT 5.08HC/23/180LF 3.2SN BK BX
Product benefits
Safe power transmission
Proven properties

SL-SMT 5.08HC/23/180LF 3.2SN BK BX

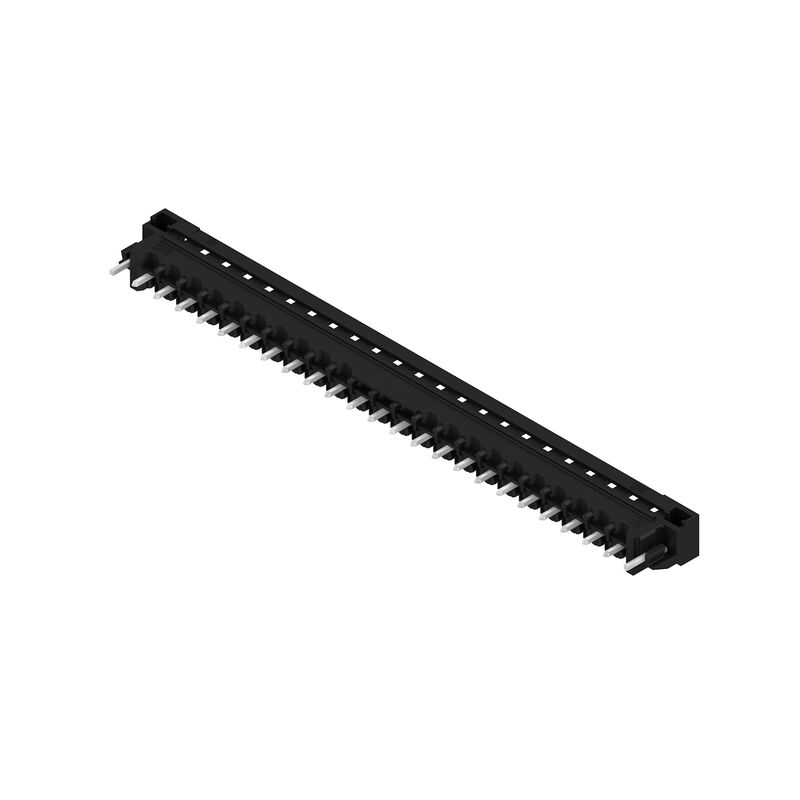

PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 5.08 mm, Number of poles: 23, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box

Item No. 1838650000
Download data sheet Engineering Support Product Downloads
Accessories 4 Is counterpart of 10 Related products 36
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Important note Classifications

Approvals

Jóváhagyások
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/70d4994d-1e1f-4a62-8b8a-96bcbd57aca3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Tanúsítvány száma (UR)
E60693

General ordering data

Változat
PCB plug-in connector, male header, Solder flange, THT/THR solder connection, 5.08 mm, Number of poles: 23, 180°, Solder pin length (l): 3.2 mm, tinned, black, Box
Rendelési szám
1838650000
Típus
SL-SMT 5.08HC/23/180LF 3.2SN BK BX
GTIN (EAN)
4032248348718
Qty.
12 items
Product data
IEC: 400 V / 27.5 A
UL: 300 V / 18.5 A
Packaging
Box

Dimensions and weights

Mélység
8,5 mm
Depth (inches)
0,335 inch
Magasság
15,2 mm
Height (inches)
0,598 inch
Height of lowest version
12 mm
Szélesség
126,64 mm
Width (inches)
4,986 inch
Масса нетто
10,598 g

Environmental Product Compliance

RoHS megfelelőségi állapot
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Углеродный след продукта
  • Cradle to gate:
    0,193 kg CO2 eq.

System specifications

Termékcsalád
OMNIMATE Signal - series BL/SL 5.08
Csatlakozás típusa
Board connection
Felszerelés NYÁK-ra
THT/THR solder connection
Raszter mm-ben (P)
5,08 mm
Raszter inch-ben (P)
0,2 "
180°
Number of poles
23
Forrasztótüskék száma pólusonként
1
Longueur du picot à souder (l)
3,2 mm
Forrasztótüske tűrése
0 / -0.3 mm
Solder pin dimensions
d = 1.2 mm
Octagonal
Solder eyelet hole diameter (D)
1,5 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
111,76 mm
L1 in inches
4,4 "
Number of rows
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
finger-safe unplugged/ back-of-hand-safe plugged
Touch-safe protection acc. to DIN VDE 0470
IP20 plugged/ IP10 unplugged
Protection degree
IP20
Volume resistance
≤5 mΩ
Can be coded
Yes
Plugging force/pole, max.
9 N
Pulling force/pole, max.
7 N

Material data

Изоляционный материал
LCP GF
Colori
black
Tabella dei colori (simile)
RAL 9011
絶縁材グループ
IIIa
Сравнительный показатель пробоя (CTI)
≥ 175
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Materiale dei contatti
Cu-alloy
Contact surface
tinned
Layer structure of solder connection
1...3 µm Ni / 2...4 µm Sn matt
Layer structure of plug contact
1...3 µm Ni / 2...4 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-30 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Номинальный ток, мин. кол-во контактов (Tu = 20 °C)
27,5 A
Prąd znamionowy, maks. liczba biegunów (Tu=20°C)
19 A
Corrente di dimensionamento, numero minimo di poli (Tu=40 °C)
24 A
Corrente di dimensionamento, numero massimo di poli (Tu = 40°C)
16,5 A
Rated voltage for surge voltage class / pollution degree II/2
400 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Номинальное импульсное напряжение при категории помехозащищенности/Категория загрязнения III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Sovratensione nominale con classe di sovratensione/grado di lordura III/3
4 kV

Rated data acc. to CSA

Intézet (CSA)
CSA
Tanúsítvány száma (CSA)
200039-1176845
Névleges feszültség (B felhasználási csoport / CSA)
300 V
Névleges feszültség (D felhasználási csoport / CSA)
300 V
Névleges áram (D felhasználási csoport / CSA)
18,5 A
Hivatkozás a tanúsítási értékekre
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Intézet (UR)
UR
Tanúsítvány száma (UR)
E60693
Tension nominale (groupe d'utilisation B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
18,5 A
Rated current (Use group D / UL 1059)
10 A
Hivatkozás a tanúsítási értékekre
Specifications are maximum values, details - see approval certificate.

Packing

Csomagolás
Box
VPE hosszúság
338 mm
VPE szélesség
134 mm
VPE magasság
22 mm

Important note

Conformità IPC
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Megjegyzések
  • Gold-plated contact surfaces on request
  • Rated current related to rated cross-section & min. No. of poles.
  • Diameter of solder eyelet D = 1.4+0.1mm
  • Solder eyelet diameter D = 1.5 + 0.1 mm, from 9 poles
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-02-01
ECLASS 15.0
27-46-02-01
