SV-SMT 7.62HP/05/90G SC/6 2.6SN BX

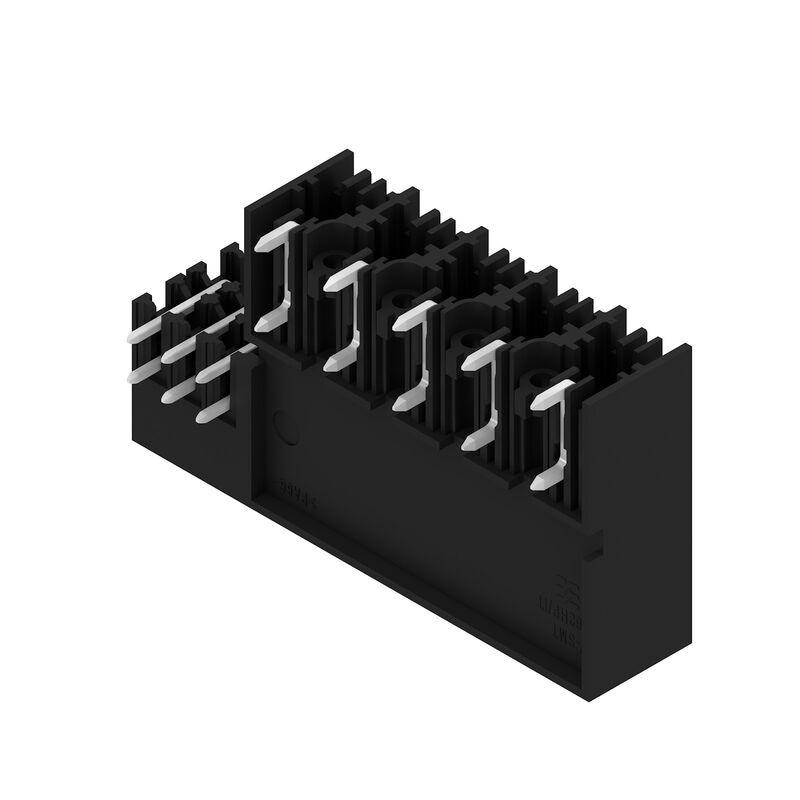

Product image
SV-SMT 7.62HP/05/90G SC/6 2.6SN BX

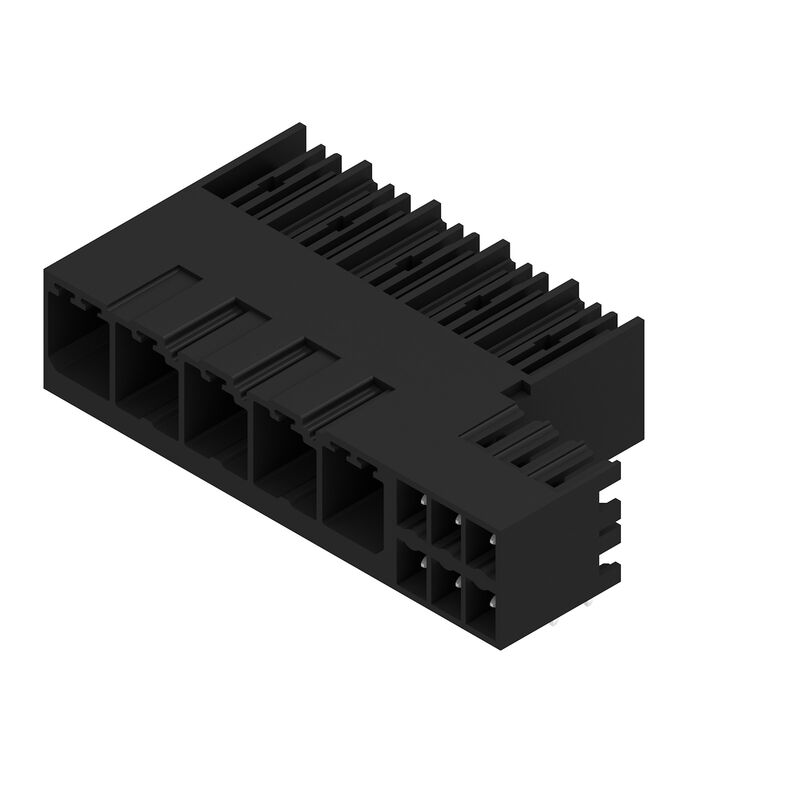

Product image
SV-SMT 7.62HP/05/90G SC/6 2.6SN BX
Dimensional drawing

SV-SMT 7.62HP/05/90G SC/6 2.6SN BX

Złącze wtykowe do druku, Listwa męska, zamknięte z boku, Połączenie lutowane THT/THR, 7.62 mm, Liczba biegunów: 5, 90°, Długość kołka lutowniczego (l): 2.6 mm, cynowana, czarny, skrzynia

Produkt ID 2529120000
Download datablad Engineering-support Produktdownloads
Tilbehør 1 Anvendte produkter 12
Approvals Ogólne dane zamówieniowe Wymiary i masa Zgodność produktu z wymogami środowiska naturalnego Specyfikacje systemu Material data IEC 정격데이터 Rated data acc. to UL 1059 Packing Dane techniczne Важное примечание Classifications

Approvals

Omologazioni
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
N° certificato (cURus)
E60693

Ogólne dane zamówieniowe

Versione
Złącze wtykowe do druku, Listwa męska, zamknięte z boku, Połączenie lutowane THT/THR, 7.62 mm, Liczba biegunów: 5, 90°, Długość kołka lutowniczego (l): 2.6 mm, cynowana, czarny, skrzynia
N. d’ordine
2529120000
Tipo
SV-SMT 7.62HP/05/90G SC/6 2.6SN BX
GTIN (EAN)
4050118673180
CPZ
36 Styk
Product data
IEC: 1000 V / 41 A
UL: 300 V / 33 A
Packaging
Box

Wymiary i masa

Profondità
28,3 mm
Profondità (pollici)
1,114 inch
Posizione verticale
14 mm
Altezza (pollici)
0,551 inch
Height of lowest version
11,4 mm
Larghezza
54,31 mm
Width (inches)
2,138 inch
Peso netto
8,35 g

Zgodność produktu z wymogami środowiska naturalnego

Stato conformità RoHS
Zgodne, bez wyłączenia
REACH SVHC
No SVHC above 0.1 wt%

Specyfikacje systemu

Termékcsalád
OMNIMATE Power - seria BV/SV 7.62HP
Csatlakozás típusa
Соединение с платой
Felszerelés NYÁK-ra
THT/THR solder connection
Raszter mm-ben (P)
7,62 mm
Raszter inch-ben (P)
0,3 "
Angolo di uscita
90°
Pólusszám
5
Forrasztótüskék száma pólusonként
2
Forrasztótüske hossza (l)
2,6 mm
Forrasztótüske tűrése
+0.1 / -0.3 mm
Dimensioni del codolo a saldare
0.8 x 1.0 mm
Forrasztószem lyukátmérő (D)
1,4 mm
Forrasztószem lyukátmérő tűrés (D)
+ 0,1 mm
L1, mm
30,48 mm
L1, inch
1,2 "
L2 in mm
7,62 mm
L2 in pollici
0,3 "
quantità di file
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
safe to back of hand above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470
IP 20
Volume resistance
2.00 mΩ
Can be coded
Yes
Dugaszolási erő/pólus, max.
12 N
Húzóerő / pólus, max.
7 N

Material data

Materiale isolante
PA 9T
Colori
черный
Tabella dei colori (simile)
RAL 9011
Gruppo materiali isolanti
II
Comparative Tracking Index (CTI)
≥ 500
Moisture Level (MSL)
1
UL 94 flammability rating
V-0
Materiale dei contatti
Cu-alloy
Superficie dei contatti
tinned
Struttura a strati del collegamento a saldare
1...3 µm Ni / 4...6 µm Sn matt
Struttura a strati del connettore maschio
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
130 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
130 °C

IEC 정격데이터

표준에 따라 시험완료
IEC 60664-1
IEC 61984
Corrente di dimensionamento, numero minimo di poli (Tu=20 °C)
41 A
Corrente di dimensionamento, numero massimo di poli (Tu=20 °C)
41 A
Corrente di dimensionamento, numero minimo di poli (Tu=40 °C)
41 A
Corrente di dimensionamento, numero massimo di poli (Tu = 40°C)
41 A
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
1 000 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
630 V
Tensione nominale con classe di sovratensione/grado di lordura III/3
630 V
Tensione di dimensionamento con classe di sovratensione/grado di lordura II/2
6 kV
Tensione di dimensionamento con classe di sovratensione/grado di lordura III/2
6 kV
Sovratensione nominale con classe di sovratensione/grado di lordura III/3
6 kV
Portata transitoria
3 x 1s with 420 A

Rated data acc. to UL 1059

Intézet (cURus)
CURUS
Tanúsítvány száma (cURus)
E60693
Névleges feszültség (B felhasználási csoport / UL 1059)
300 V
Névleges feszültség (C felhasználási csoport / UL 1059)
300 V
Névleges feszültség (D felhasználási csoport / UL 1059)
600 V
Névleges áram (B felhasználási csoport/ UL 1059)
33 A
Névleges áram (C felhasználási csoport/ UL 1059)
33 A
Névleges áram (D felhasználási csoport/ UL 1059)
5 A
Ligne de fuite, min.
9,6 mm
Ligne d’air, min.
6,9 mm
Référence aux valeurs approuvées
Specifications are maximum values, details - see approval certificate.

Packing

Imballaggio
Box
Lunghezza VPE
338 mm
Larghezza VPE
130 mm
VPE magasság
33 mm

Dane techniczne

Pas en mm (hybride)
  • znamionowy:
    3,81 mm
  • Element hybrydowy:
    Signal
Passo in mm (Segnale)
3.81 mm
Pas en pouces (hybride)
  • nominal:
    0,15 "
  • Hybrid component:
    Signal
Passo in pollici (Segnale)
0.15 "
Pole count (hybrid)
  • nominal:
    6
  • Hybrid component:
    Signal
Number of poles (Signal)
6
Numero di codoli a saldare per polo (ibrido)
  • Hybrid component:
    Signal
  • nominal:
    1
Number of solder pins per pole (Signal)
1
Solder pin dimensions (hybrid)
  • Solder pin dimensions:
    0.8 x 0.8 mm
  • Hybrid component:
    Signal
Solder pin dimensions (Signal)
0.8 x 0.8 mm
Dimensioni del codolo a saldare = tolleranza d (ibrido)
  • Solder pin dimensions = d tolerance:
    • Lower tolerance with prefix (reveals minimum):
      -0,03
    • Upper tolerance with prefix (reveals maximum):
      +0,01
    • Tolerance, unit:
      mm
  • Hybrid component:
    Signal
Solder pin dimensions = d tolerance (Signal)
-0,03 / +0,01 mm
Diamètre du trou d'implantation (hybride)
  • Hybrid component:
    Signal
  • nominal:
    1,3 mm
PCB hole diameter (Signal)
1.3 mm
Tolerance of the diameter of the solder eyelet (hybrid)
  • Hybrid component:
    Signal
  • Solder eyelet hole diameter tolerance (D):
    ± 0.1 mm
  • Solder eyelet hole diameter tolerance (D):
    + 0,1 mm
PCB hole diameter tolerance (Signal)
± 0.1 mm
L2, mm
7,62 mm
L2, inch
0,3 "
Number of rows (hybrid)
  • Hybrid component:
    Signal
Number of rows (Signal)
2
Contact material (hybrid)
  • Hybrid component:
    Signal
  • Contact material:
    CuMg
Contact material (Signal)
CuMg
Contact surface (hybrid)
  • Hybrid component:
    Signal
  • Contact surface:
    tinned
Contact surface (Signal)
tinned
Layer structure of the solder connection (hybrid)
  • Layer structure of the solder connection:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the solder connection (Signal)
1-3 µm Ni / 4-8 µm Sn
Layer structure of the plug contact (hybrid)
  • Layer structure of the plug contact:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the plug contact (Signal)
1-3 µm Ni / 4-8 µm Sn
Névleges feszültség túlfeszültségű osztály/II/2. szennyezés súlyossága (hibrid)
  • Hybrid component:
    Signal
  • nominal:
    320 V
Rated voltage for overvoltage class/pollution severity level II/2 (Signal)
320 V
Rated voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/2 (Signal)
160 V
Tensione nominale per classe di sovratensione / grado di lordura di livello III/3 (ibrido)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/3 (Signal)
160 V
Rated impulse voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal)
2.5 kV
Rated impulse voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Tensione impulsiva di dimensionamento per classe di sovratensione / grado di lordura di livello III/2 (Segnale)
2.5 kV
Tensione impulsiva di dimensionamento per classe di sovratensione / grado di lordura di livello III/3 (ibrido)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal)
2.5 kV
Short-time withstand current capacity (hybrid)
  • Short-time withstand current resistance:
    3 x 1s with 80 A
  • Hybrid component:
    Signal
Short-time withstand current resistance (Signal)
3 x 1s with 80 A
Creepage distance (hybrid)
  • Hybrid component:
    Signal
  • min.:
    4,38 mm
Clearance distance (hybrid)
  • Hybrid component:
    Signal
  • min.:
    3,6 mm
Névleges feszültség (B felhasználási csoport / CSA) (hibrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / CSA) (Signal)
300 V
Névleges feszültség (C felhasználási csoport / CSA) (hibrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / CSA) (Signal)
50 V
Rated current (Use group B / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group B / CSA) (Signal)
9 A
Rated current (Use group C / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group C / CSA) (Signal)
9 A
Rated current (Use group D / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group D / CSA) (Signal)
9 A
Rated voltage (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / UL 1059] (Signal)
300 V
Rated voltage (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / UL 1059] (Signal)
50 V
Rated voltage (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group D / UL 1059] (Signal)
300 V
Rated current (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group B / UL 1059) (Signal)
5 A
Rated current (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group C / UL 1059) (Signal)
5 A
Rated current (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal

Важное примечание

Conformità IPC
Заявление о соответствии: все изделия разрабатываются, производятся и поставляются в соответствии с установленными международными стандартами и нормами и соответствуют характеристикам, указанным в технической документации, а также обладают декоративными свойствами в соответствии с IPC-A-610, "Класс 2". Любые другие запросы информации об изделиях могут быть рассмотрены по запросу.
Note
  • Technical specifications refer to the power contacts
  • Technical data of signal contacts: 50V / 5A, stripping length 8mm
  • Rated current related to rated cross-section & min. No. of poles.
  • Specifications of diagram: P1=7.62 mm; P2=3.81 mm
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-03-01
ECLASS 15.0
27-46-03-01
