TRP 12VDC 2CO AU
Product image
Similar to illustration
TRP 12VDC 2CO AU
Wiring diagram
TRP 12VDC 2CO AU
Graph
DC load limit curve
Resistive load
TRP 12VDC 2CO AU
Graph
Electrical service life230 V AC resistive load
230 V AC resistive load
TRP 12VDC 2CO AU

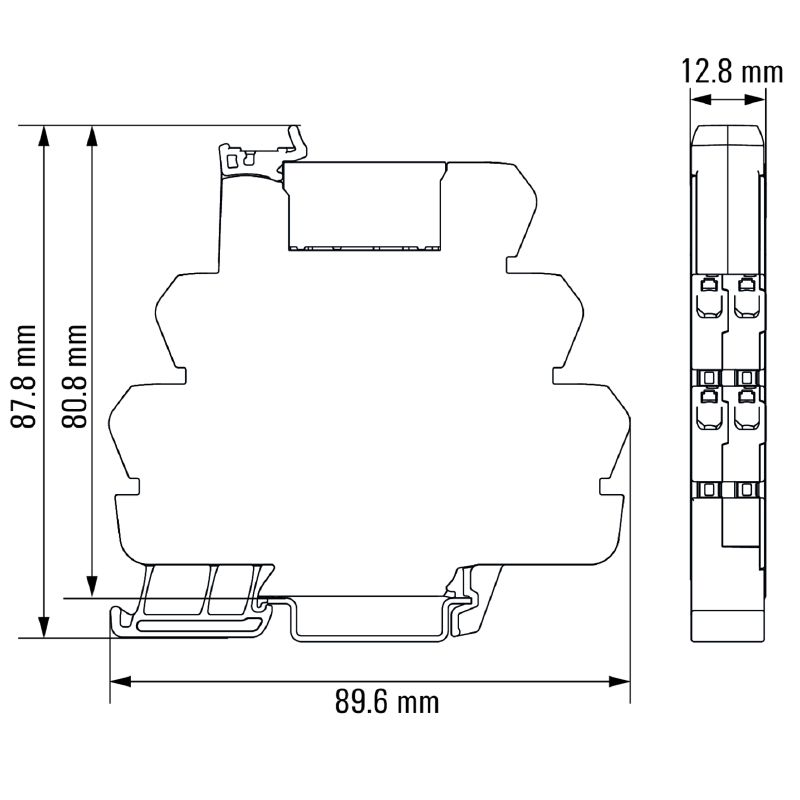

Dimensional drawing
TRP 12VDC 2CO AU
Miscellaneous
Type codes

TRP 12VDC 2CO AU

TERMSERIES, Relay module, Number of contacts: 2, CO contact AgNi gold-plated, Rated control voltage: 12 V DC ±20 %, Continuous current: 8 A, PUSH IN, Test button available: No

Produkt ID 2618310000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 27 Enkeltdele 1 Anvendte produkter 11
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Control side Load side General data Insulation coordination Further details of approvals / standards Connection data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/0d1637a4-c7dd-4915-8bc8-4c9de8d8b393/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197

General ordering data

Version
TERMSERIES, Relay module, Number of contacts: 2, CO contact AgNi gold-plated, Rated control voltage: 12 V DC ±20 %, Continuous current: 8 A, PUSH IN, Test button available: No
Order No.
2618310000
Typ
TRP 12VDC 2CO AU
GTIN (EAN)
4050118670523
Qty.
10 Styk

Dimensions and weights

Djup
87,8 mm
Depth (inches)
3,457 inch
Height
89,4 mm
Height (inches)
3,52 inch
Width
12,8 mm
Width (inches)
0,504 inch
Net weight
57 g

Temperatures

Storage temperature
-40 °C...85 °C
Ambient temperature
-40 °C…60 °C
Humidity
5-95% relative humidity, Tu = 40°C, without condensation

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
9e2cbc49-76d9-4611-b8ec-5b4f549a0aa9

Rated data UL

Connection cross-section AWG, min.
AWG 26
Connection cross-section AWG, max.
AWG 14
Type of conductor
rigid copper conductor
flexible copper conductor
Pollution severity level
2

Control side

Rated control voltage
12 V DC ±20 %
Rated current DC
33 mA
Potencia nominal
400 mW
Status indicator
Green LED
Protective circuit
Free-wheeling diode
Reverse polarity protection
Coil voltage of the replacement relay deviating from the rated control voltage
No
Napięcie cewki przekaźnika instalowanego jako zamiennik
12 V DC

Load side

Tensione di commutazione nominale
250 V AC
Courant permanent
8 A
Max. switching frequency at rated load
0,1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Min. switching power
1 mA @ 1 V
Inrush current
15 A / 4 s
AC switching capacity (resistive), max.
2000 VA
DC switching capacity (resistive), max.
192 W @ 24 V
Einschaltverzögerung
≤ 11 ms
Frånslagsfördröjning
≤ 8 ms
Contact type
2 CO contact (AgNi gold-plated)
Mechanical service life
30 x 106 switching cycles

General data

Operating altitude
≤ 2000 m
above sea level
장착 레일
TS 35
Tasto di prova disponibile
No
Mechanical switch position indicator
No
Цветовой код
svart
UL94 flammability rating component
  • Component:
    Housing
  • UL94 flammability rating:
    V-0
  • Component:
    Retaining clip
  • UL94 flammability rating:
    V-0
  • Component:
    Pusher
  • UL94 flammability rating:
    V-0

Insulation coordination

Rated voltage
300 V
Pollution severity
2
Surge voltage category
III
Clearance and creepage distances for control side - load side
≥ 6 mm
Dielectric strength for control side - load side
3.51 kVeff /1 min.
Type of isolation at input and output
reinforced insulation
Dielectric strength of neighbouring contacts
2.5 kVeff / 1 Min.
Type of isolation at neighbouring contacts
Basic insulation
Dielectric strength of open contact
1 kVeff / 1 min
Dielectric strength to mounting rail
4 kVeff / 1 Min.
Impulse withstand voltage
6 kV (1.2/50 µs)
Stopień ochrony
IP20

Further details of approvals / standards

Certificate No. (DNV)
TAA00001E5
Certificate no. (cULus)
E141197

Connection data

Метод проводного соединения
PUSH IN
Długość usunięcia izolacji przyłącza pomiarowego
9 mm
Clamping range, rated connection
1,5 mm²
Clamping range, min.
0,14 mm²
Clamping range, max.
2,5 mm²
Sezione di collegamento cavo AWG, min.
AWG 26
Wire connection cross section AWG, max.
AWG 14
Wire cross-section, solid, min.
0,14 mm²
Wire cross-section, solid, max.
1,5 mm²
Wire cross-section, solid, min. (AWG)
AWG 26
Wire cross-section, solid, max. (AWG)
AWG 16
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross section, finely stranded, max.
2,5 mm²
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, finely stranded, max. (AWG)
AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.
0,14 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.
1,5 mm²
Blade size
0.4 x 2.0 mm

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
